ENGLISH
14
12.

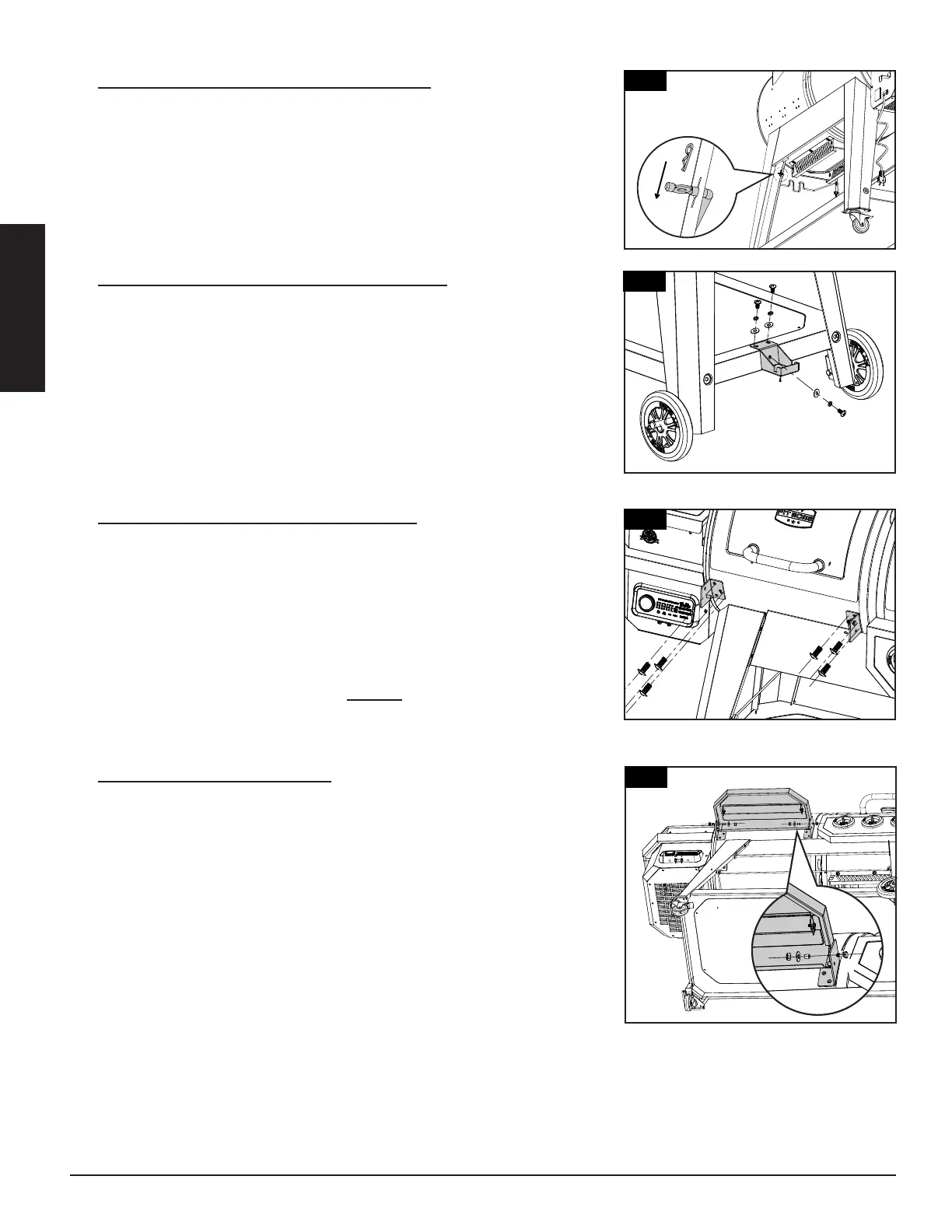

Parts Required:
1 x LP Gas Cylinder Wire Retainer (#37)
Installation:
• Remove the R-clip from LP Gas Cylinder Wire Retainer. Attach the LP
Gas Cylinder Wire Retainer to the right Support Legs. Use R-clip to
secure the wire retainer in place.
13.
Parts Required:
1 x LP Gas Cylinder Support Bracket (#38)
3 x Screw (#A)
3 x Locking Washer (#C)
3 x Washer (#B)
Installation:
• Secure the LP Gas Cylinder Support Bracket to the cart bottom shelf
using three screws, locking washers, and washers.
14.
Parts Required:
1 x Front Shelf Bracket /L (#25)
1 x Front Shelf Bracket /R (#26)
6 x Screw (#A)
Installation:
• Attach one Front Shelf Bracket to the front of the Main Barrel by using
three screws. Install each screw half-way, then tighten completely
when all three screws are mounted and aligned properly. Repeat the
same installation for the other Front Shelf Bracket.
15.
Parts Required:
1 x Front Shelf (#27)
2 x Screw (#H)
2 x Washer (#B)
2 x Bushing (#D)
2 x Nut (#I)
Installation:
• From underneath, insert the screw (from the outside) into the Front
Shelf Bracket and the Front Shelf, then add the bushing onto the
screw, the washer, then the nut. Repeat the installation for the other
side of the front shelf.
NOTE: When installed correctly, the front shelf can be raised (for use)
and lowered (for storage) with ease.
IMPORTANT: Avoid using the shelves to move or lift the grill. The
weight of the unit will cause the shelves to break, which is not
covered by warranty.
15
27
14
25
26
13
38
12
37
