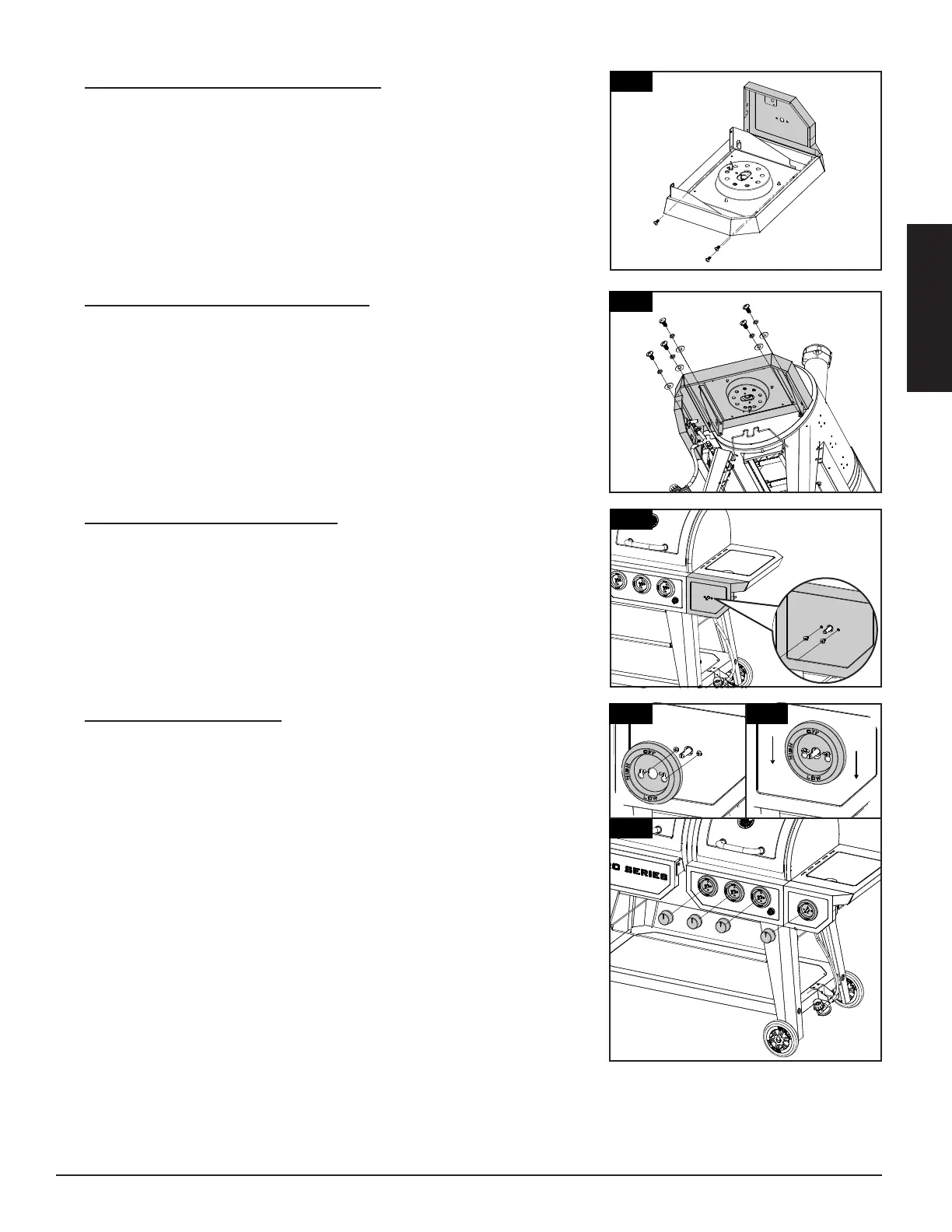

Parts Required:
4 x Burner Knob (#20)
1 x Burner Knob Bezel (#21)
Installation:
• First, install the Burner Knob Bezel onto the front of the Side Burner
Panel. Ensure the two large key holes align with the screws. See 19A.
• Move the knob bezel vertically down to have the small end of key hole
touch the screws and then tighten the screws. See 19B.
• Place Burner Knobs into the Burner Knob Bezel and protruding valve
stems, making certain to align the flat portion of the stem with the
flat portion of the knob. Push each Burner Knob onto the stem until it
is firmly seated. See 19C.
16.     
Parts Required:
1 x Side Burner Panel (#16)
1 x Side Burner Shelf (#18)
3 x Screw (#A)
Installation:
• Flip the Side Burner Shelf upside-down. Mount the Side Burner Shelf onto
the Side Burner Panel with three washers, locking washers, and screws.
17.     
Parts Required:
5 x Screw (#A)
5 x Locking Washer (#C)
5 x Washer (#B)
Installation:
• Mount the Side Burner Shelf onto the end cap of the gas barrel with
five washers, locking washers, and screws.
18.    
Installation:
• Secure the side burner valve onto the side burner panel using two
pre-installed screws on side burner valve.
• Fasten screws only half-way to allow easier installation in next step.
16
18
19
1919
20
21



17
16
18


