System Connections
QUICK REFERENCE GUIDE 11
SYSTEM CONNECTIONS
The BC9630 (BC9600 + CM9630 connection module) provides a multi-inter-
face connector for connections to a host and a power supply connector for an
external power supply.
To unlock the multi-interface cable, first lift the lever and then extract the
cable, as indicated by the label next to the lever.

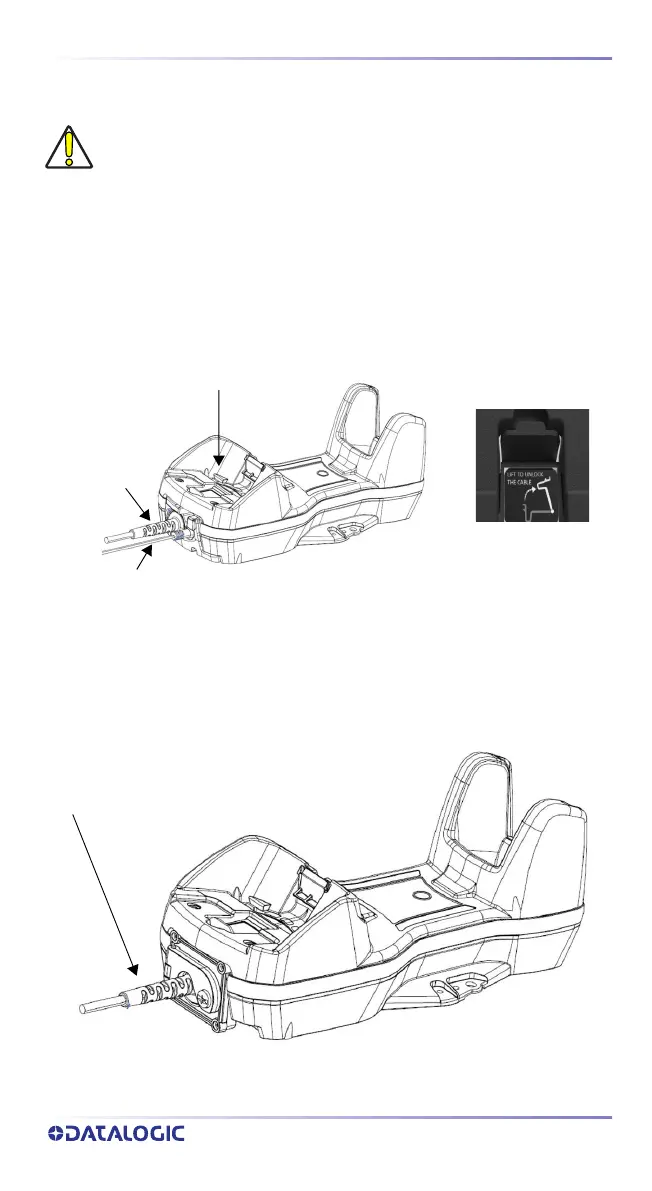

Figure 2 - BC9630 connection module
The BC9631 (BC9600 + CM9631 connection module) provides a single multi-
interface connector. Power is supplied by the host (USB) or by an external
power supply connected to the cable.
Figure 3 - BC9631 connection module
CAUTION: Connections should always be made with power off.
Multi-interface
cable
Power adapter cable
Unlock Label
Unlock Label
Power adapter + multi-interface cable
