Portable Desktop Mounting
6
BC96XX BASE STATIONS
PORTABLE DESKTOP MOUNTING
For desktop mounting, if portability of the base station is required, the
mounting plate can be used. There are two ways this can be done: (1) base
station fast release by first fixing the mounting plate onto a flat surface so the
base station can be slid off and on, or (2) connection box fast release by fixing
the mounting plate to the connection box and then fixing both of them onto a
flat surface so only the cradle can be slid off while the connection box will
remain on the desk.
Base Station Fast Release - Mounting the Plate

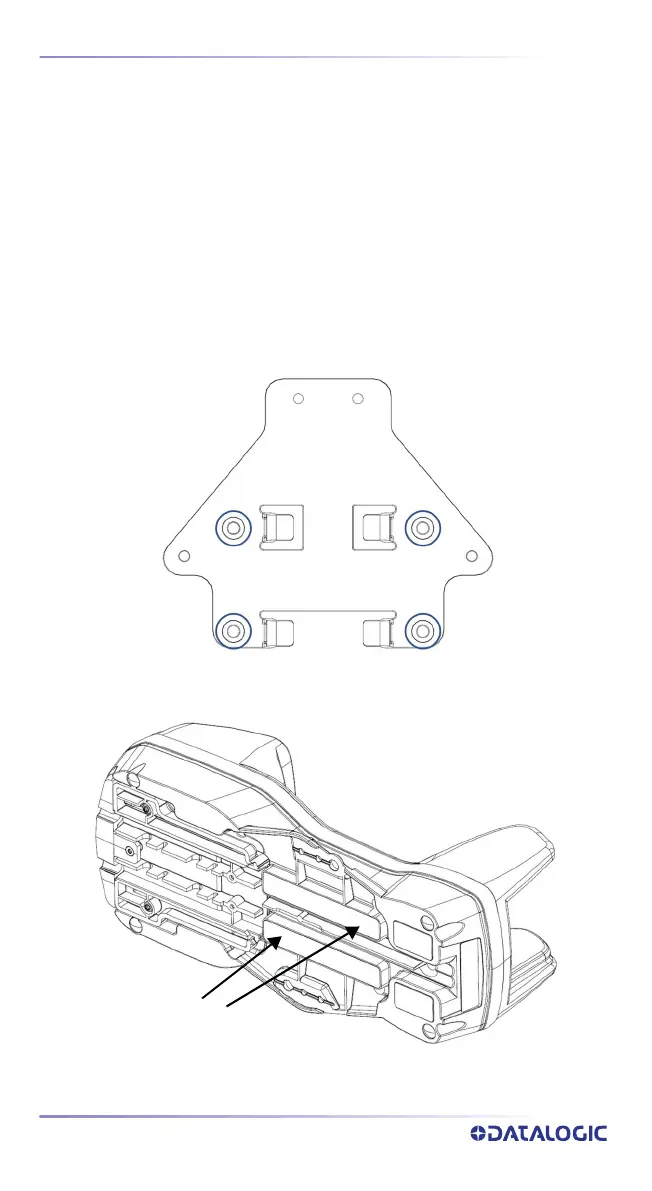

1. Affix the mounting plate onto the desired mounting surface using four
screws through the holes highlighted in the figure below.
2. Remove the adhesive strips protecting the mounting tabs on the base sta-
tion.
Protective Strips
To Next Page
