Datalogic PowerScan CM9630 User Manual

Portable Desktop Mounting
8 BC96XX BASE STATIONS

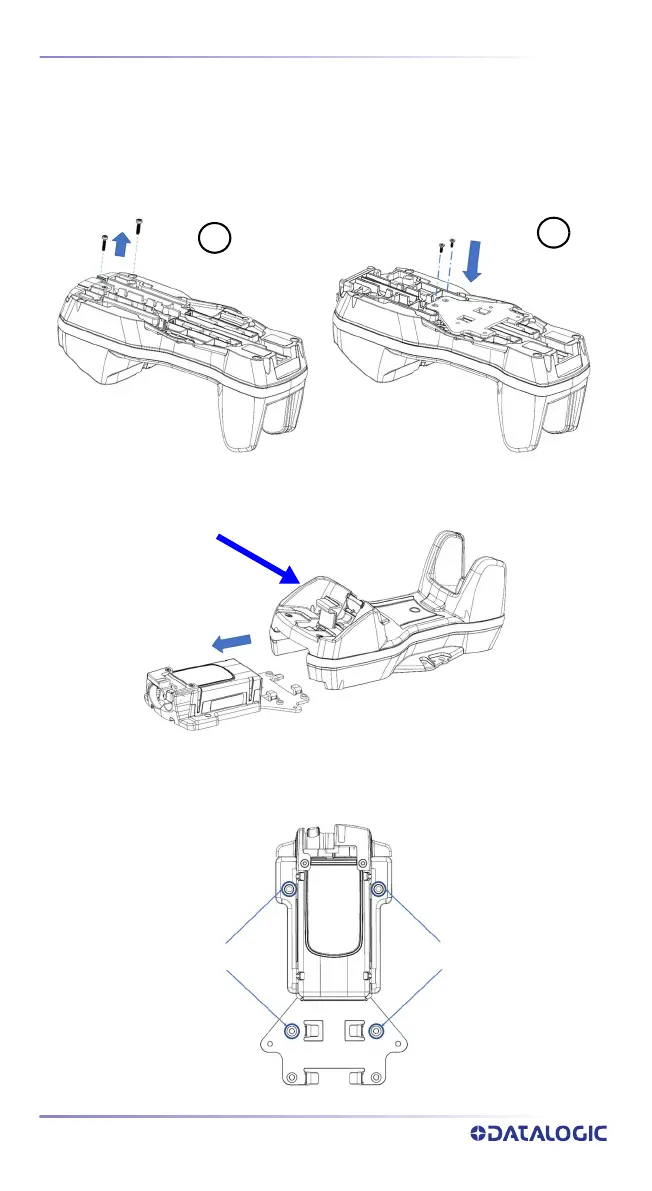

Connection Box Fast Release - Mounting the Bracket
1. Remove the protective strips.
2. Unscrew the connection box from the base station.
3. Screw the mounting plate to the connection box.
4. Unlock the lever and remove the connection box from the base station.
5. Screw the connection box and mounting plate sub-assembly to a flat sur-
face using four screws as shown in the figure below.
2
3
Screws Position Screws Position
