Setting Up the Reader
2 PowerScan™ PD8300
Setting Up the Reader
Follow the steps below to connect and get your reader up and communicating with
its host.
1. Connect the Cable to the reader and the Host.
2. Configure the Interface (see page 4).
3. Program the Reader starting on page 8 (optional, as needed).

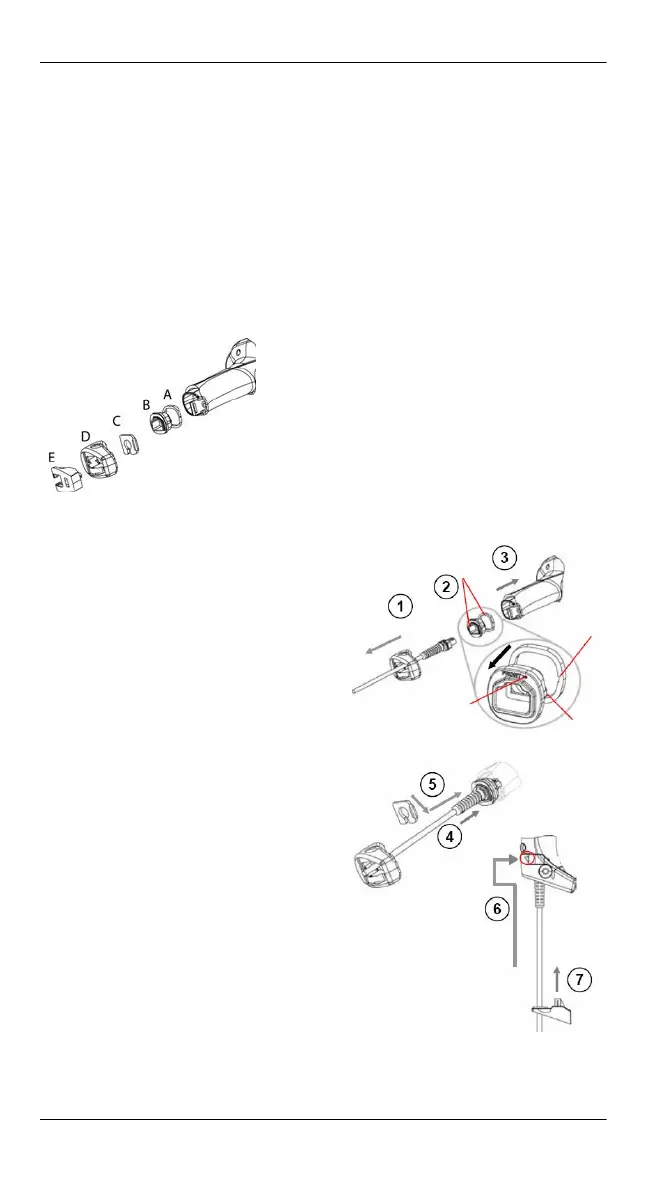

Connecting the Cable
A. Rubber gasket
B. Plastic boot
C. Cable spacer
D. Cover
E. Strain relief
1. Slip the cover over the cable.
2. Push the plastic boot into the rub-
ber gasket. Take care that the tab
on the plastic boot is aligned with
the notch in the rubber gasket.
3. Push the plastic boot and gasket
into the handle. Ensure that the
“Front” marking on the plastic
boot is facing out, with the arrow
pointing towards the front of the
scanner.
4. Insert the cable into the socket of
the plastic boot.
5. Insert the cable spacer into the
cable wire and slide it towards the
handle.
6. Push the cover along the cable
towards the reader, and hook it
over the yellow “tooth”.
7. Insert the strain relief into the
cover and tighten the screw to fix
the whole assembly to the reader
handle.
