Setting Up the Reader
6
QUICKSCAN™ QBT/QM2500
Connecting the Base Station
This section shows how to connect the Base Station to a
terminal, PC or other host device. Turn off the host before
connection and consult the manual for that equipment (if
necessary) before proceeding.
Base Station Connection and Routing — Fully insert the
Interface (I/F) Cable connector into the port in the under-
side of the Base Station. Then optionally connect an AC/DC
adapter to the proper external power cable to charge the
device faster.

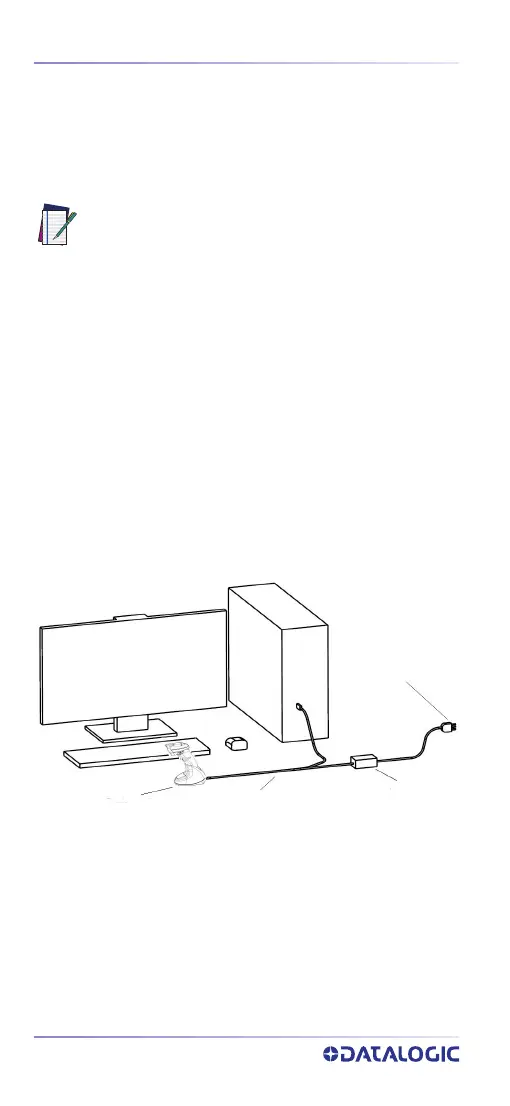

Figure 4 - Connecting the Base Station
NOTE: The QuickScan™ QBT/QM2500 can also be
Powered by the Terminal. When powered by the
Terminal, the battery charger is automatically set
as Slow charge.
For some specific interfaces or hosts or lengths of
cable, the use of an external power supply is rec-
ommended for full recharging capability (See
"Technical Specifications" on page 31 for more
details).
Wall Plug
Connector
AC/DC
Adapter
(optional)
I/F CableDatalogic QuickScan
QBT/QM2500
