Setup, Configuration, and Operation
The Peel and Present option is plug and play; no setup or configuration is required. As soon as power is
applied, the printer senses and enables the Present Sensor for operation.
During operation, when a label is present (blocking the sensor), the yellow Stop Light on the front panel of
the printer will flash to prompt you that a label awaits removal.
With printers equipped with an LCD display, the display will read “REMOVE LABEL”
Notes: (1) The operation of the Present Sensor can also be controlled via software commands from the host. Be
sure that your software program is properly configured for use with this option. (2) If the Present Sensor is
disconnected without first powering off the printer, the printer will behave as if there is a label blocking the
sensor. Turn the printer off and then back on. The printer will reconfigure itself to operate without the
Present Option
Unloading the Internal Rewinder
When the Internal Rewinder becomes full remove the Media Clip. Grasp the used backing material and
pull it from the Internal Rewinder.
Note: Never allow the outer diameter of backing material to exceed 4 inches (102 mm) on the Internal Rewinder.
Periodic Maintenance
The Peel Mechanism Rollers will need to be disassembled and cleaned approximately every 100,000
inches to ensure trouble free operation. This cleaning interval may be more or less depending on the type
of adhesive on the back of your media. Heavy or “gummy” adhesive will require more frequent cleaning.

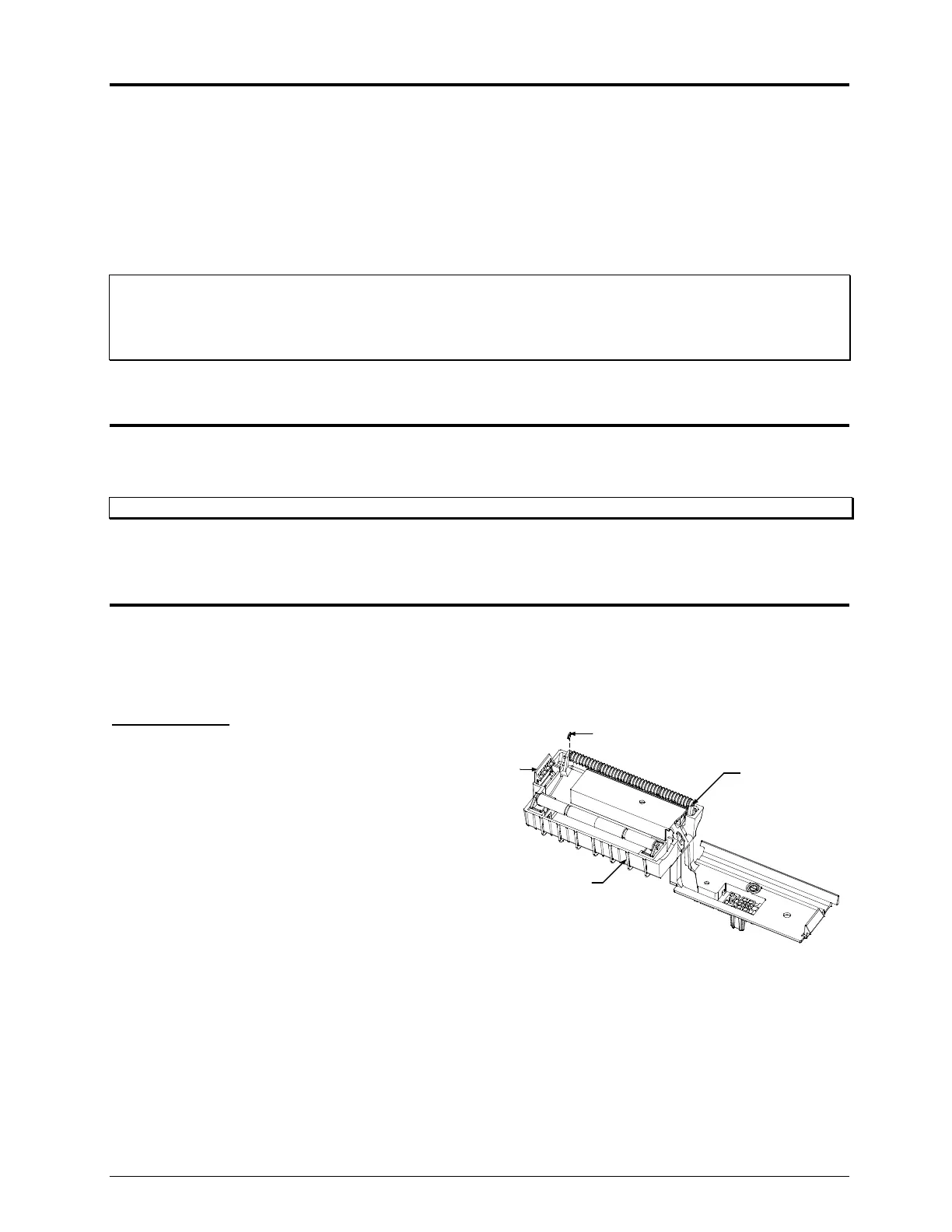

Upper Rollers:
Remove the Peel Mechanism from the printer.
Press in on the Latch and allow the Front Cover
to swing open.
Remove the small C-Clip from the Upper
Roller Shaft.
Latch
Front Cover
C-Clip
Upper Roller
Shaft
