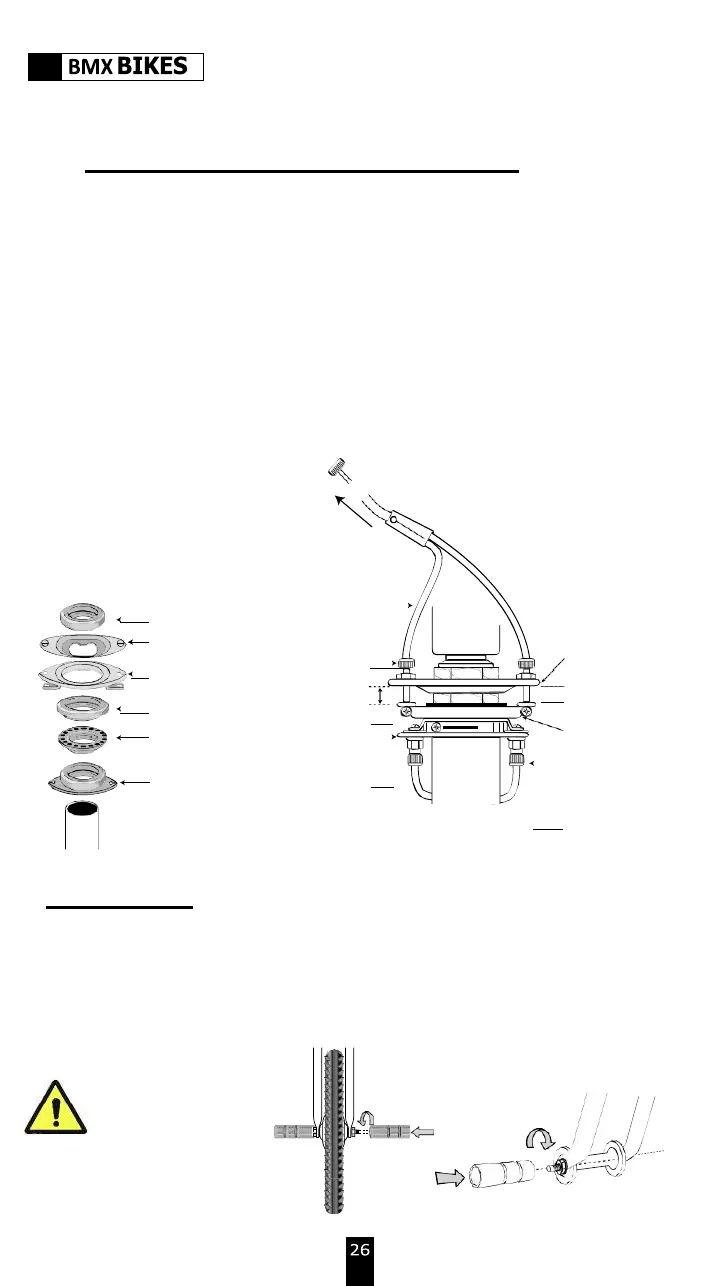

Rotor
1/Changing and adjusting rear brake cables:
Assemble the lower cable (coming from the rotor to the rear brake jaws) and
pre- set the rear jaw fixing the cable tension with the jaw cable clip.
Assemble the upper cable (from the rotor to the rear cable lever).
Set the two fixed lower cables on the rotor’s mobile flange using setting screws
screwed to the fixed flange. These two cables should be synchronised and the
flange should move in parallel to the fixed flange.
Do the same for the upper cables.
The mobile flange stroke should be maximum to enable the brake lever to provide
the system with maximum efficiency.
TO BRAKE
•
•
•
•
•
Steering nut
LEVER
Upper fixed flange
Mobile flange
Steering cone
Steering
upper cables
upper adjustment
screw
stroke
upper flange
PARALLEL
•
user’s
•
r’s user’s
Fixed lower flange
lower flange
2/U-type brake
mobile flange
Lower adjustment screw
•
•
•
•
Loosen triangle nut, bring this triangle to about 1cm above the safety hook then
tighten the jaw cable clip. Pull the cable, the two pads will then touch of rim.
Tighten the cable clip.
Squeeze the brake handle to check, and adjust the two arms between them tur-
ning the central setting nut.
Assembly of pegs
