Dell EMC S4112F-ON User Manual

Physical dimensions
The S4112–ON series (S4112F-ON and S4112T-ON), has the following physical dimensions:
• 209 x 450 x 41.25 mm (W x D x H)
• 8.2 x 17.7 x 1.75 inches (W x D x H)
LED display
The S4112–ON Series (S4112F-ON and S4112T-ON), contains LED displays on the I/O side of the switch. This section describes open
networking installation environment (ONIE) LED behaviors. Some LED behaviors may change after you install your software.
LED behavior
The following S4112–ON Series switch LED behavior displays during ONIE operations:

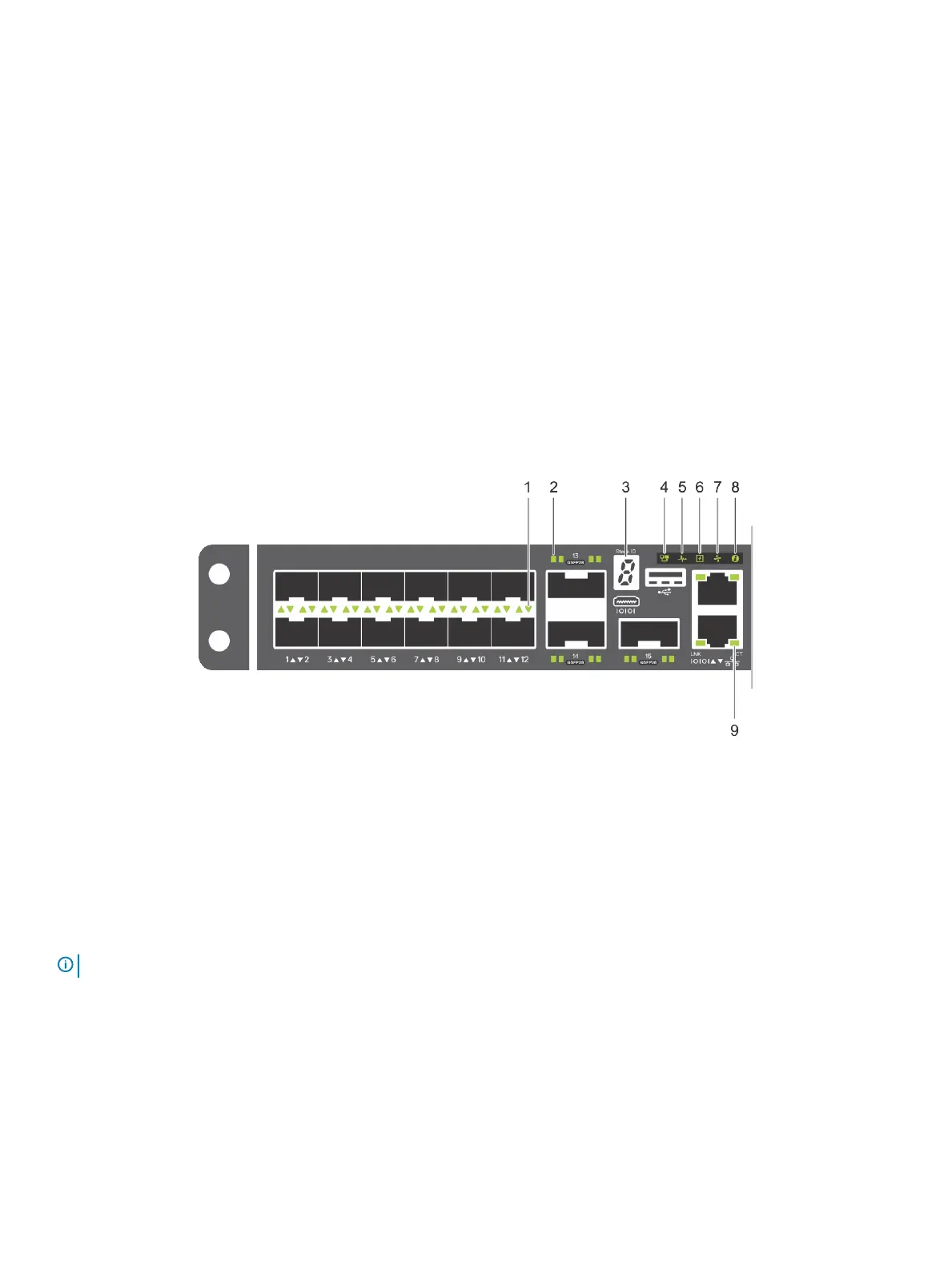

Figure 7. S4112F–ON AC and DC I/O-side LEDs
1
SFP+ port LED 2 QSFP28 port LED
3 Stack ID 4 Master LED
5 System LED 6 Power LED
7 Fan LED 8 Locator LED/System beacon
9 RJ-45/RS-232 LED
NOTE: Some LED behaviors change after you install your software.
10 S4112–ON Series switch
