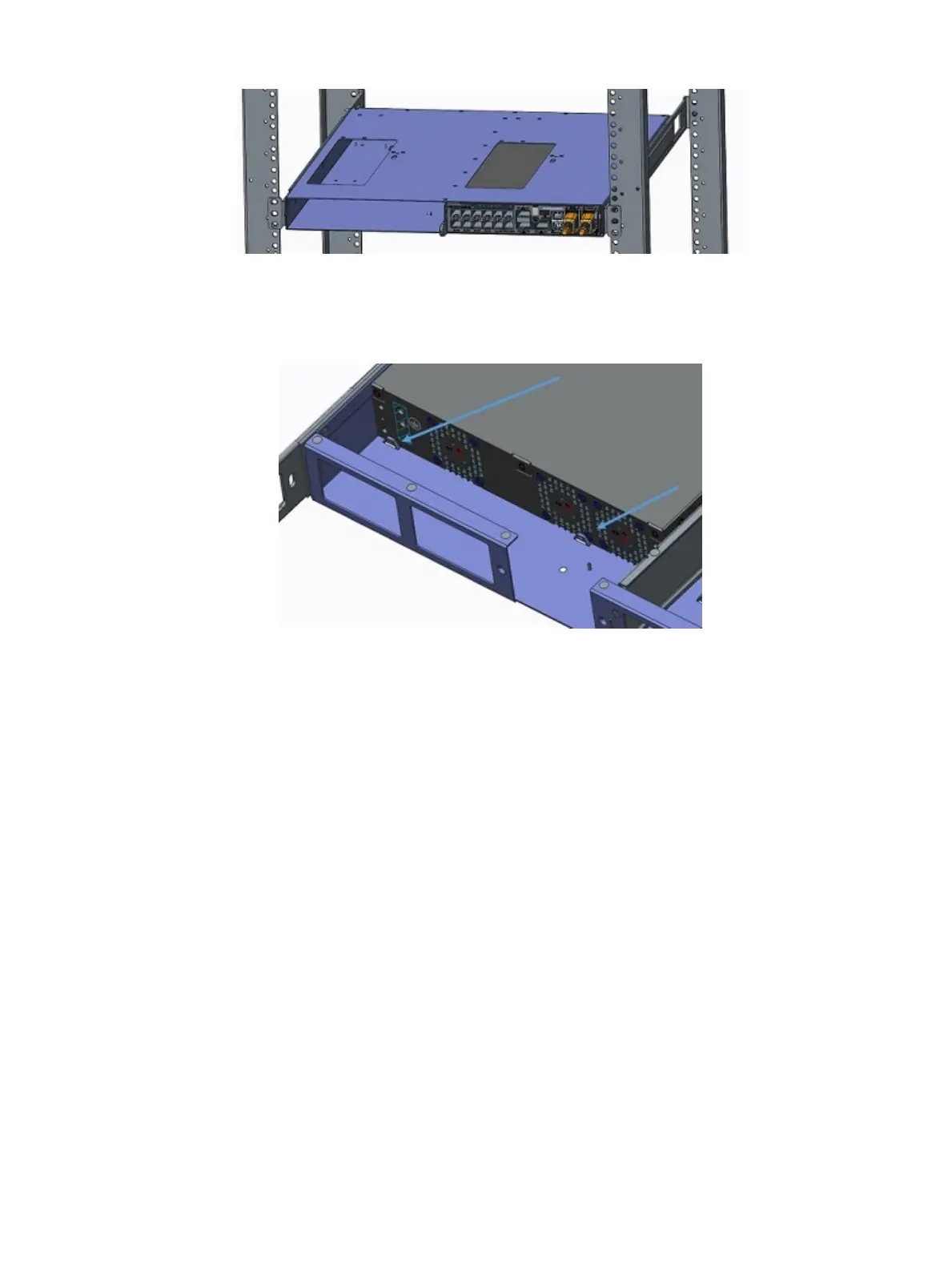

Figure 17. Install an S4112-ON Series switch
The switch is fully inserted when it hits the stop feature on the dual tray. The front switch latch snaps the switch into place.
Figure 18. Dual-tray stop feature
2 If you are installing two switches, insert the second switch in the open dual-tray slot.
Switch removal
Remove the switch from the dual tray from the front of the four-post rack.
Push in the front switch latches according to the latch arrows and pull out the switch.
24
S4112–ON Series installation
