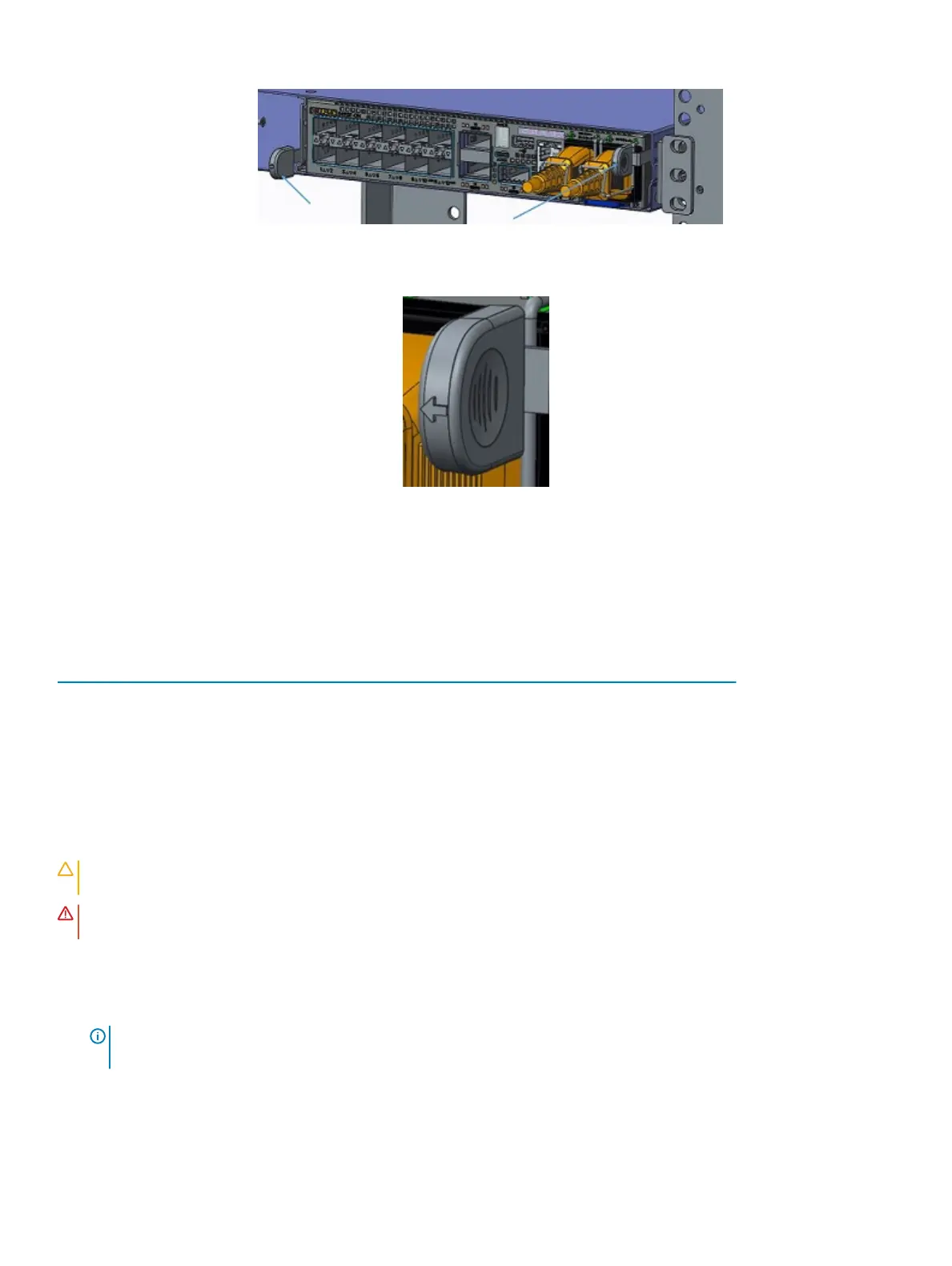

Figure 19. S4112-ON Series release latches
Figure 20. S4112-ON Series release arrow
Optics installation
The S4112-ON Series (S4112F-ON adn S4112T-ON) switch has the following optic congurations:
Table 7. S4112-ON Series optic
congurations
Platform Description
S4112F-ON
• 12 xed 1/10GbE SFP+ optical ports
• 3 xed 1/100GbE QSFP28 optical ports
S4112T-ON
• 3 xed 1/100GbE QSFP28 optical ports
For a list of supported optics, see the S4112–ON Series data sheet at www.dell.com/support or contact your Dell EMC sales
representative.
CAUTION
: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap
when handling the S4112–ON Series and its components.
WARNING: When working with optical bers, follow all warning labels and always wear eye protection. Never look directly into
the end of a terminated or unterminated ber or connector as it may cause eye damage.
1
Position the optic so it is in the correct position.
The optic has a key that prevents it from being inserted incorrectly.
2 Insert the optic into the port until it gently snaps into place.
NOTE
: When you cable the ports, be sure not to interfere with the airow from the small vent holes above and below the
ports.
S4112–ON Series installation 25
