Dell 1610HD User Manual

42 Using Your Projector

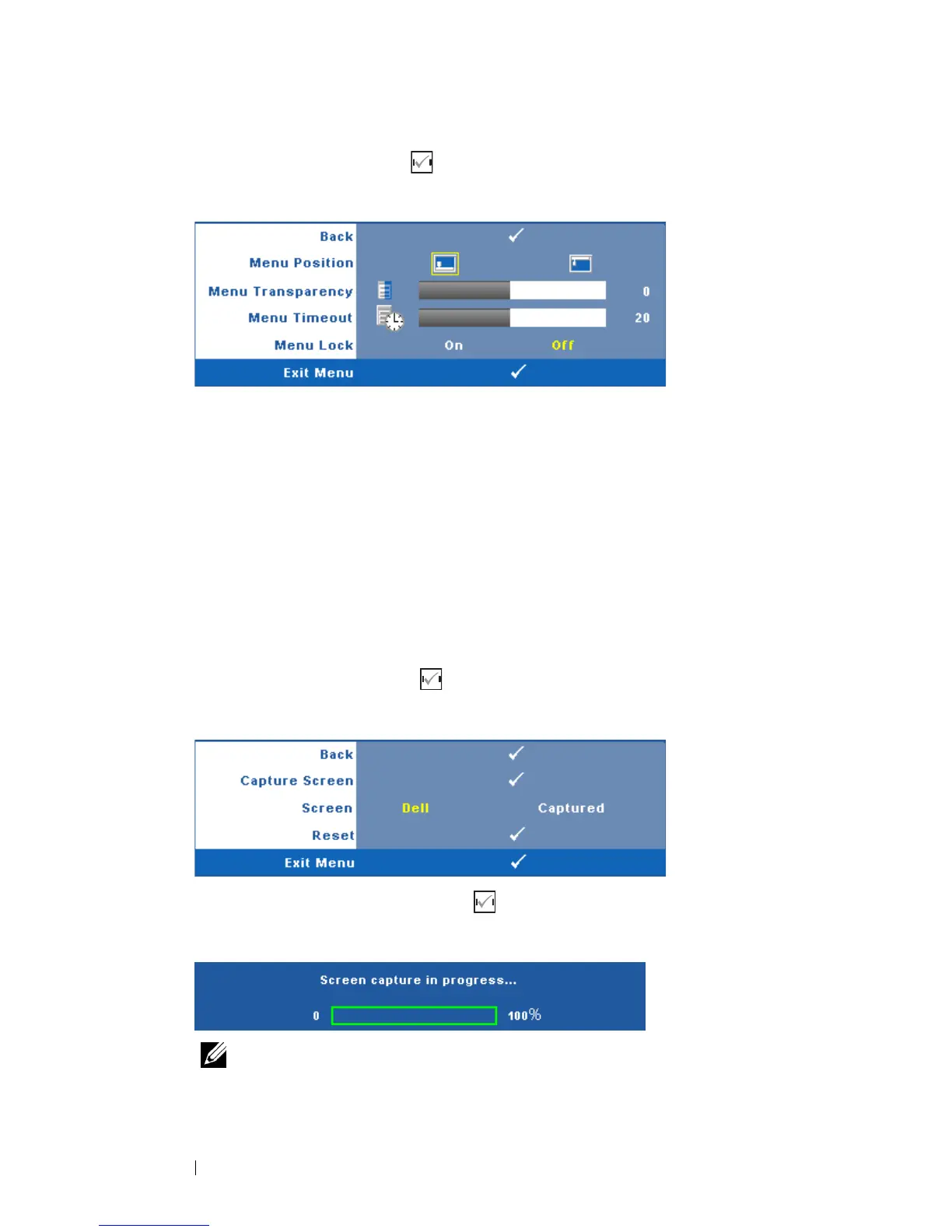

MENU SETTINGS—Select and press on the control panel or press Enter button
on the remote control to activate menu settings. The menu settings consists of the
following options:
MENU POSITION—Allows you to change the position of the OSD menu on
the screen.
MENU TRANSPARENCY—Select to change the transparency level of the OSD
background.
MENU TIMEOUT—Allows you to adjust the time for an OSD timeout. By
default, the OSD disappears after 20 seconds of non-activity.
MENU LOCK—Select On to enable Menu Lock and hide the OSD menu.
Select OFF to disable the Menu Lock. If you want to disable the Menu
Lock function and have the OSD disappear, press the Menu button on the
control panel or remote control for 15 seconds, then disable the function.
SCREEN SETTINGS—Select and press on the control panel or press Enter button
on the remote control to activate screen settings. The screen settings menu
consists of the following options:
CAPTURE SCREEN—Select and press on the control panel or press Enter
button on the remote control to capture the screen display, the following
message appears on the screen.
NOTE: To capture a full image, ensure the input signal that is
connected to the projector is 1024 x 768 resolution.

Dell 1610HD Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.2 - 10 m
Projection technology	DLP
Supported aspect ratios	16:9, 16:10
Contrast ratio (typical)	2100:1
Screen size compatibility	36.3 - 362 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-35 - 40 °
Lamp power	225 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Full HD	No
HD-Ready	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, NTSC J, NTSC M, PAL, PAL B, PAL D, PAL G, PAL H, PAL L, PAL M, PAL N, PAL Nc, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Supported graphics resolutions	1280 x 800, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
RMS rated power	8 W
Number of built-in speakers	1
HDMI version	1.3
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	287 W
Power consumption (PowerSave)	15 W
Power consumption (economy mode)	219 W
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 80 %
Throw ratio	1.28 -1.536
Focal length range	18.2 - 21.8 mm
Aperture range (F-F)	2.4 - 2.66
Noise level	35 dB
Noise level (economic mode)	32 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black

Weight and Dimensions

Depth	202 mm
Width	296.5 mm
Height	87.9 mm
Weight	2360 g
