Dell 1610HD User Manual

Troubleshooting Your Projector 61
4
Troubleshooting Your Projector
If you experience problems with your projector, see the following troubleshooting
tips. If the problem persists, contact Dell™. See Contacting Dell™ on page 74.
Problem Possible Solution
No image appears on the
screen
• Ensure that the lens cap is removed and the
projector is turned on.
• Ensure that you have chosen the correct
input source on the INPUT SELECT menu.
• Ensure the external graphics port is enabled.

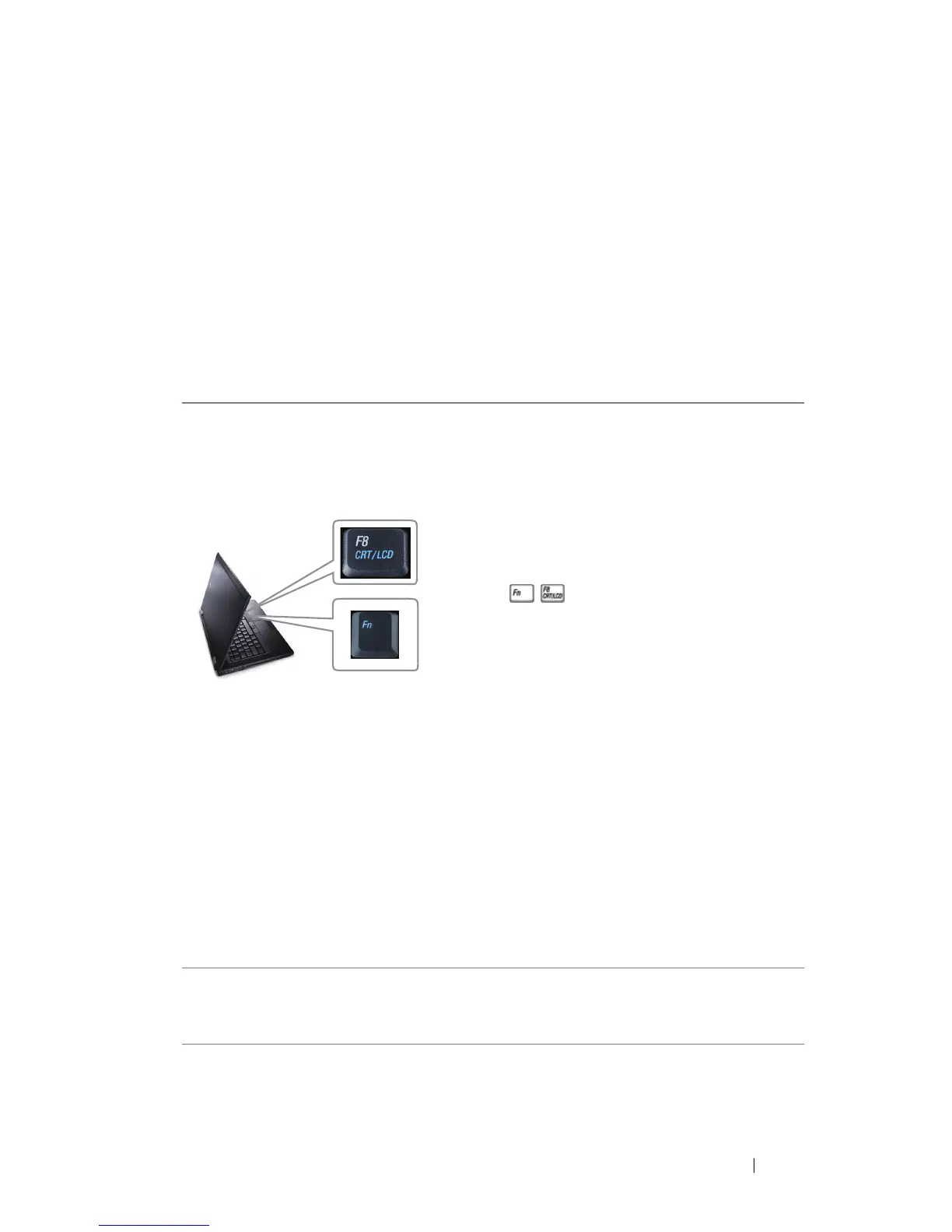

If you are using a Dell™ Laptop computer,
press (Fn+F8). For other
computers, see your respective
documentation. If images are not displayed
properly, please upgrade the video driver of
your computer. For Dell computer, see
support.dell.com.
• Ensure that all the cables are securely
connected. See "Connecting Your Projector"
on page 9.
• Ensure that the pins of the connectors are
not bent or broken.
• Ensure that the lamp is securely installed
(see "Changing the Lamp" on page 67).
•Use
Test Pattern in the Others menu.
Ensure that the colors of the test pattern are
correct.
Missing Input Source.
Cannot switch to particular
Input Source.
Go to Advanced Enable/Disable Sources,
ensure that particular Input Source is set to
Enable.

Dell 1610HD Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.2 - 10 m
Projection technology	DLP
Supported aspect ratios	16:9, 16:10
Contrast ratio (typical)	2100:1
Screen size compatibility	36.3 - 362 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-35 - 40 °
Lamp power	225 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Full HD	No
HD-Ready	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, NTSC J, NTSC M, PAL, PAL B, PAL D, PAL G, PAL H, PAL L, PAL M, PAL N, PAL Nc, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Supported graphics resolutions	1280 x 800, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
RMS rated power	8 W
Number of built-in speakers	1
HDMI version	1.3
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	287 W
Power consumption (PowerSave)	15 W
Power consumption (economy mode)	219 W
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 80 %
Throw ratio	1.28 -1.536
Focal length range	18.2 - 21.8 mm
Aperture range (F-F)	2.4 - 2.66
Noise level	35 dB
Noise level (economic mode)	32 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black

Weight and Dimensions

Depth	202 mm
Width	296.5 mm
Height	87.9 mm
Weight	2360 g
