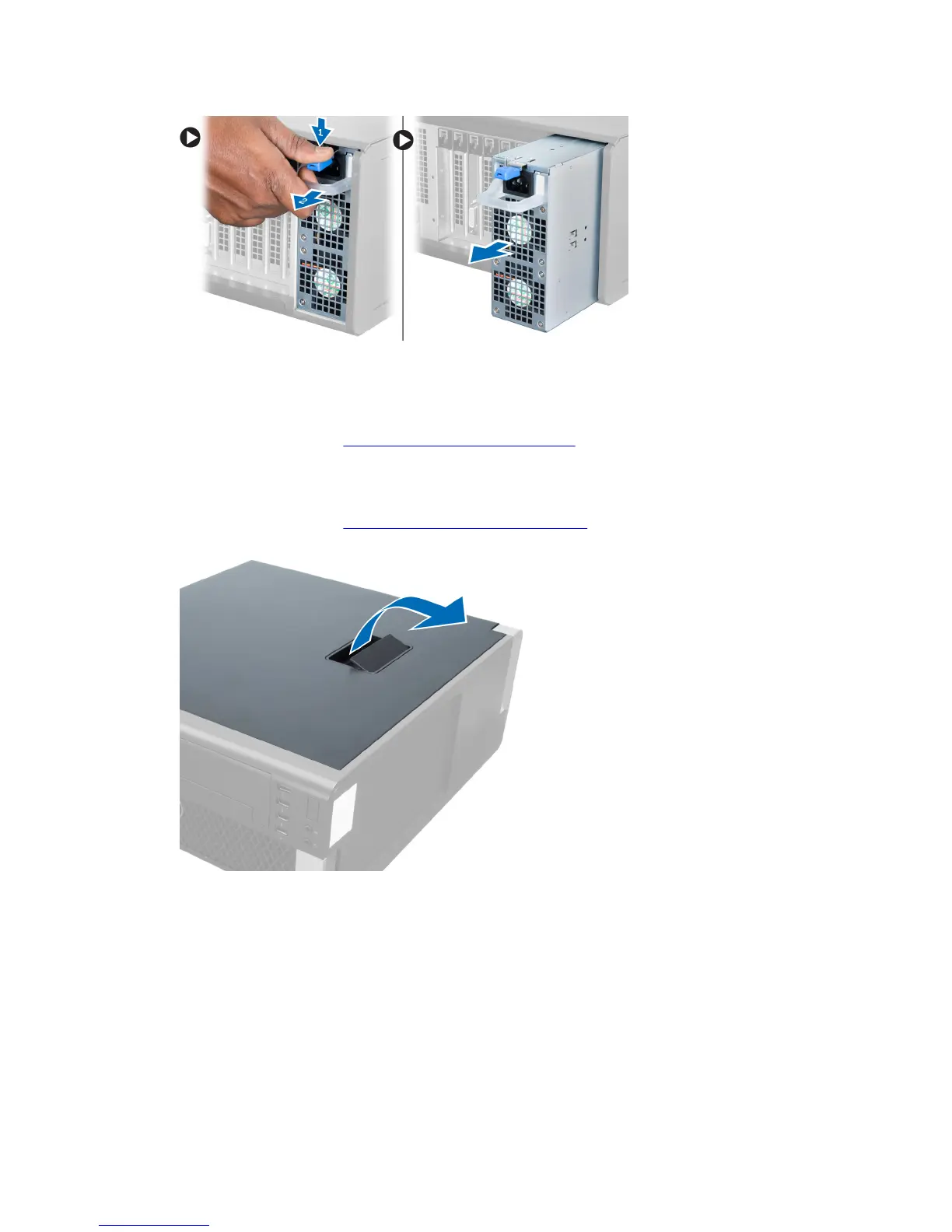

Installing the Power Supply Unit (PSU)
1. Hold the PSU handle and slide the PSU into the computer.
2. Follow the procedures in After Working Inside Your Computer.
Removing the Computer Cover
1. Follow the procedures in Before Working Inside Your Computer.
2. Lift up the cover-release latch.
3. Lift the cover upward to a 45–degree angle, and remove it from the computer.
12
