Dell E176FPc
21

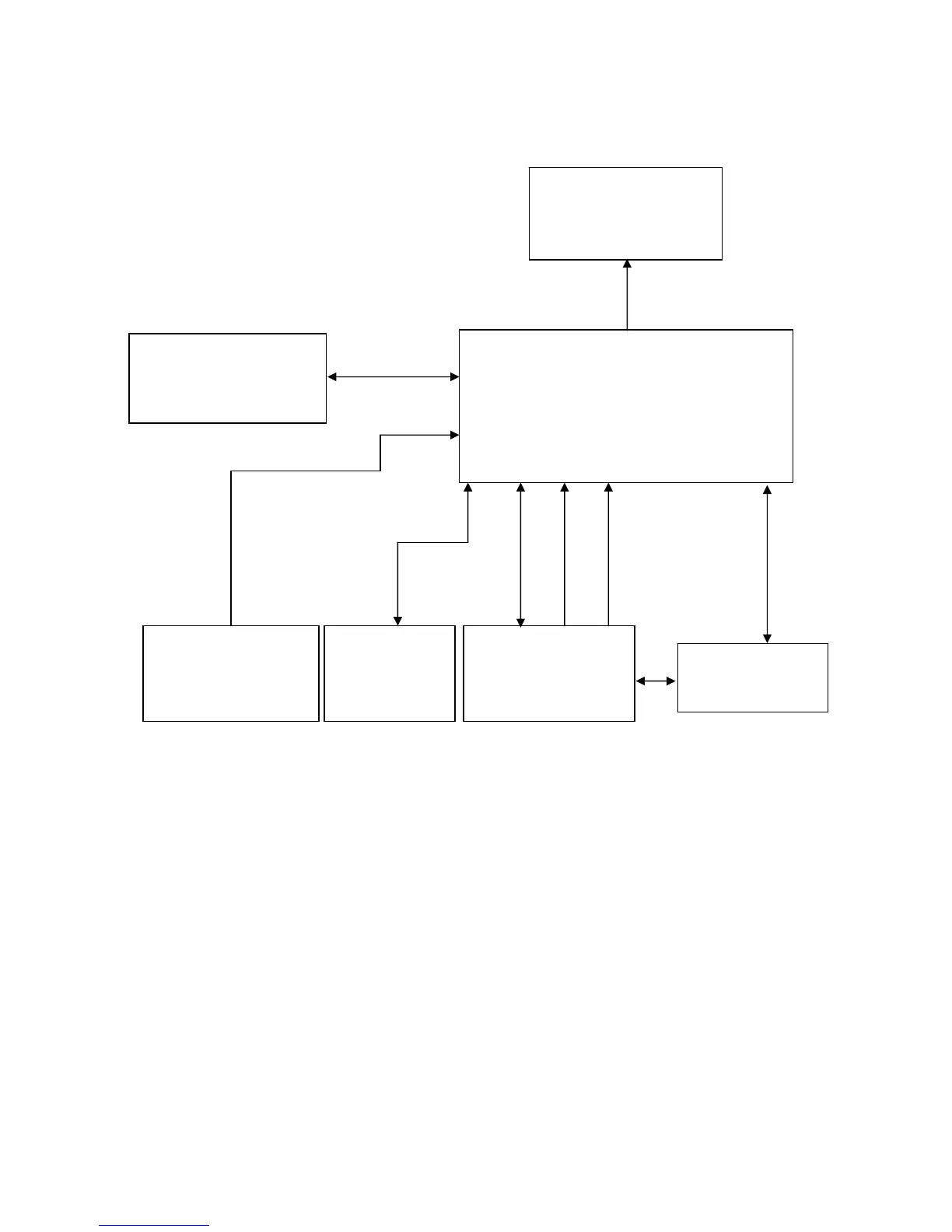

5.3 Electrical Block Diagram
5.3.1 Main Board
OSD Control Interface
(CN403)
Scalar GM2621
(Include MCU, ADC, OSD)
(U401)
Flash Memory
SST25VF020-20- 4C-SAE
(U402)
EEPROM
M24C16-MN6T
(U403)
D-Sub
Connector
(CN405)
EEPROM (U404)
M24C02WMN6
R
G
B
RXD
TXD
DB15_SDA,
DB15_SCL
EPR_SDA
EPR_SCL
LCD Interface
(CN101)
H
V
