Fans
The S5148F-ON switch comes from the factory with two PSUs and four fan modules installed in the switch. The fan modules
and the power supplies, which have integrated fans, are hot-swappable.
In addition to the power supply modules, you can order and install fan modules separately.
The S5148F-ON switch supports two airflow direction options. Do not mix airflow types in a switch; you can use only a single
airflow direction in a switch. If the airflow directions are mismatched, you must correct the mismatched airflow direction.
● Airflow is from the I/O panel to the PSU—the red indicator is the normal airflow direction.
● Airflow is from the PSU to the I/O panel—the blue indicator is the reverse airflow direction.
All fans and PSUs in a configuration must be in the same airflow direction.
Environmental factors can decrease the amount of time required between fan replacements. Check the environmental factors
regularly. An increase in temperature and/or particulate matter in the air might affect performance—for example, new
equipment installation).
CAUTION: Check the fans at six-month intervals and replace them as necessary. Regularly monitor the speeds
of the fans to accurately determine replacement intervals.
Topics:
• Components
• Fan module installation
Components
The following are the S5148F-ON switch fan components:
● S5148F-ON switch fan module
● S5148F-ON switch fan module—reverse flow

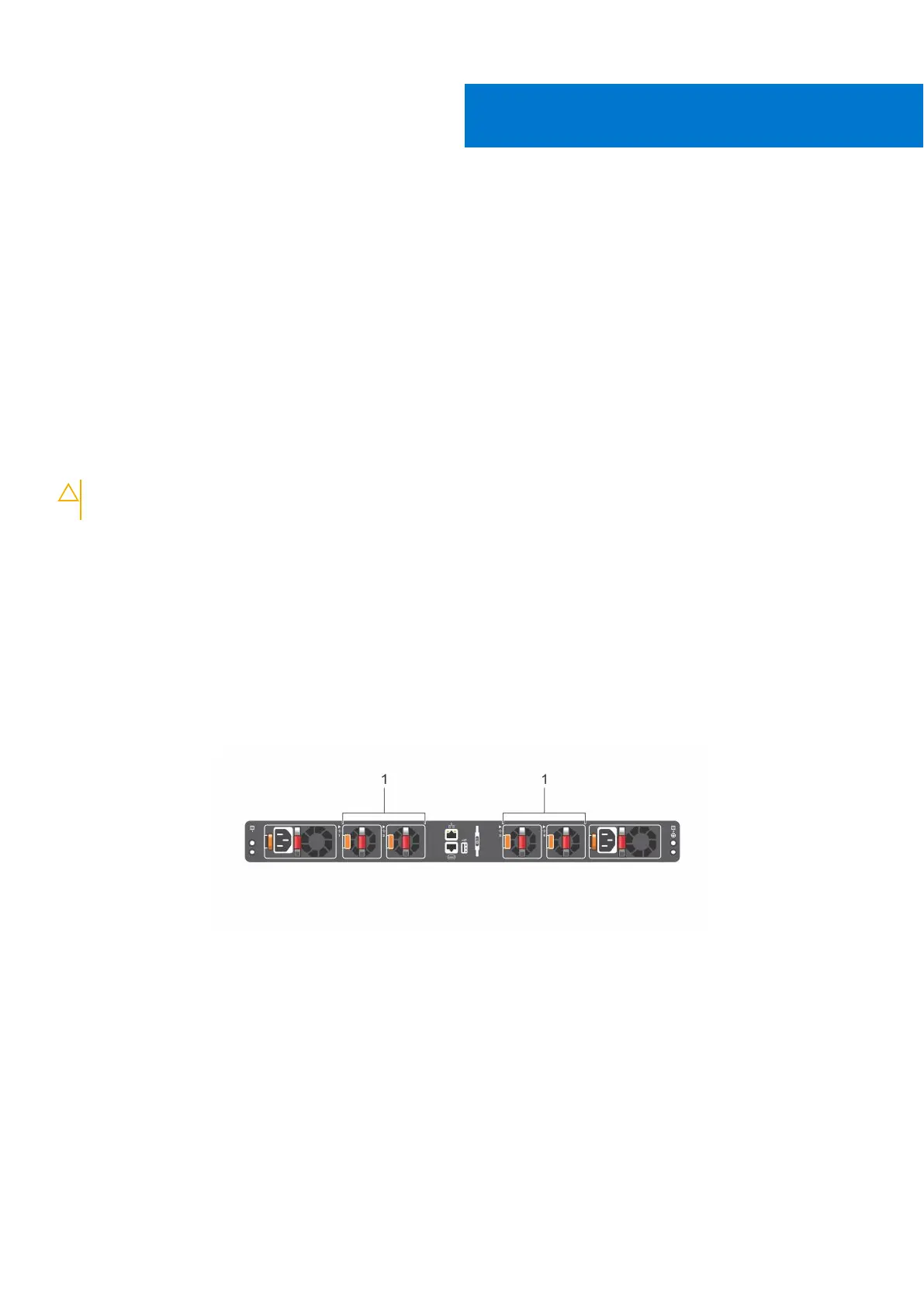

Figure 18. S5148F-ON switch fan modules
● 1—Fan modules
Fan LEDs
● Solid green—Fan function is normal.
● Flashing yellow—There is a fan fault.
● Off—Fan is off.
