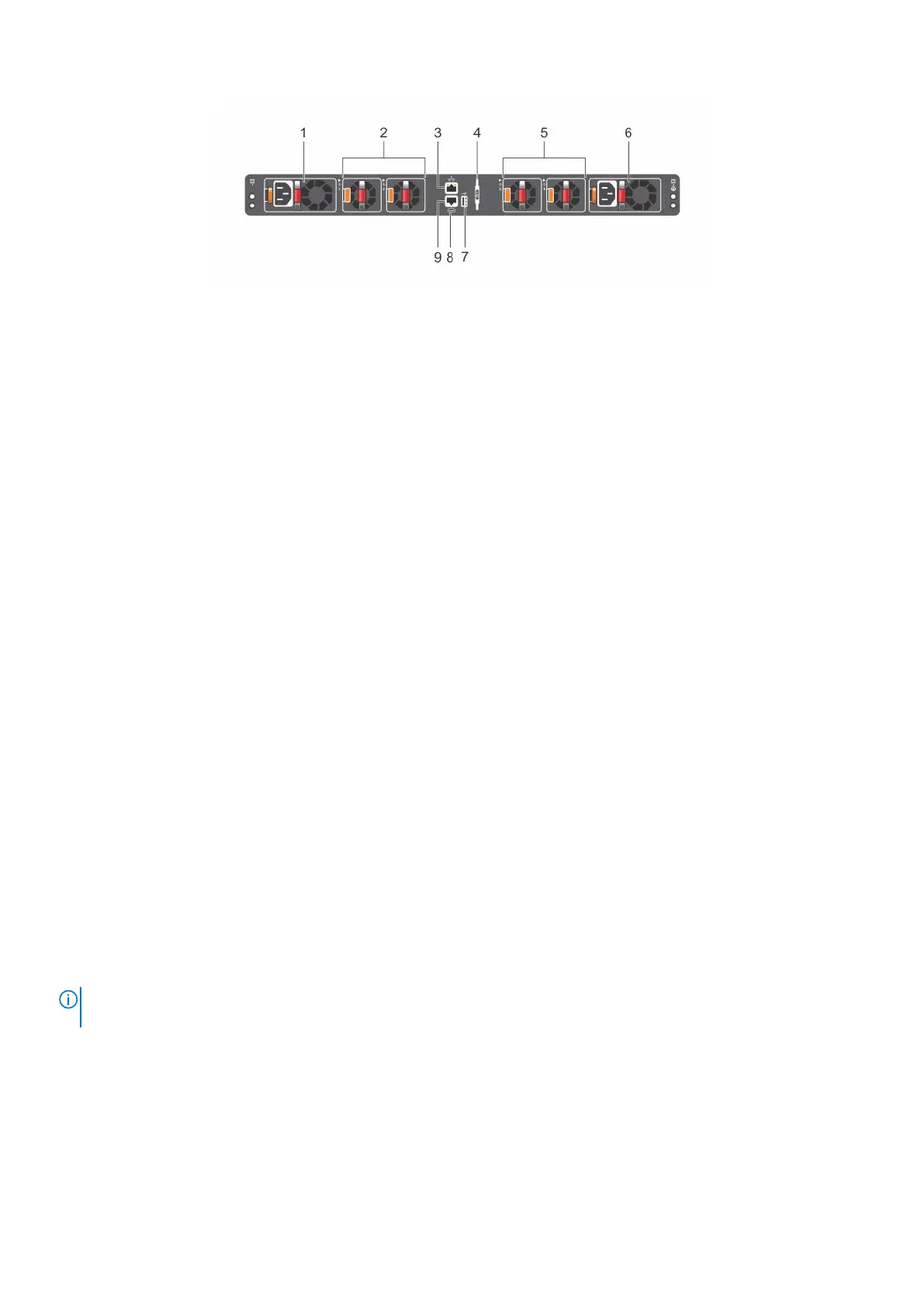

Figure 3. SS5148F-ON switch PSU-side view
1. PSU1 2. Fan Modules 1 and 2
3. RJ-45 management port 4. Luggage Tag
5. Fan Modules 3 and 4 6. PSU2
7. USB Type A 8. MicroUSB-B Port
9. RS-232 console port
Features
The S5148F-ON switch offers the following features:
● Forty-eight 10GbE and 25GbE SFP28 ports
● Six 40GbE and 100GbE QSFP28 ports
● One MicroUSB-B console port
● One RJ-45 serial console port
● One USB Type-A port for more file storage
● On-board Rangeley central processing unit (CPU) system with 8GB DDR III RAM, 16GB iSLC mSATA SSD
● One 10/100/1000BaseT Ethernet management port
● Two hot-swappable redundant power supplies
● Four hot-swappable fan modules
● Standard 1U switch
Physical dimensions
The S5148F-ON switch have the following physical dimensions:
● 434 x 462 x 44 mm (W x D x H)
● 17.1 x 18.2 x 1.72 inches (W x D x H)
● PSU/fan tray handle: 1.57 inches (40 mm)
LED display
The S5148F-ON switch includes LED displays on the I/O side of the switch.
NOTE:
If you are installing third-party software, for LED information, see your third-party operating software (OS)
documentation.
8 S5148F-ON switch
