Steps

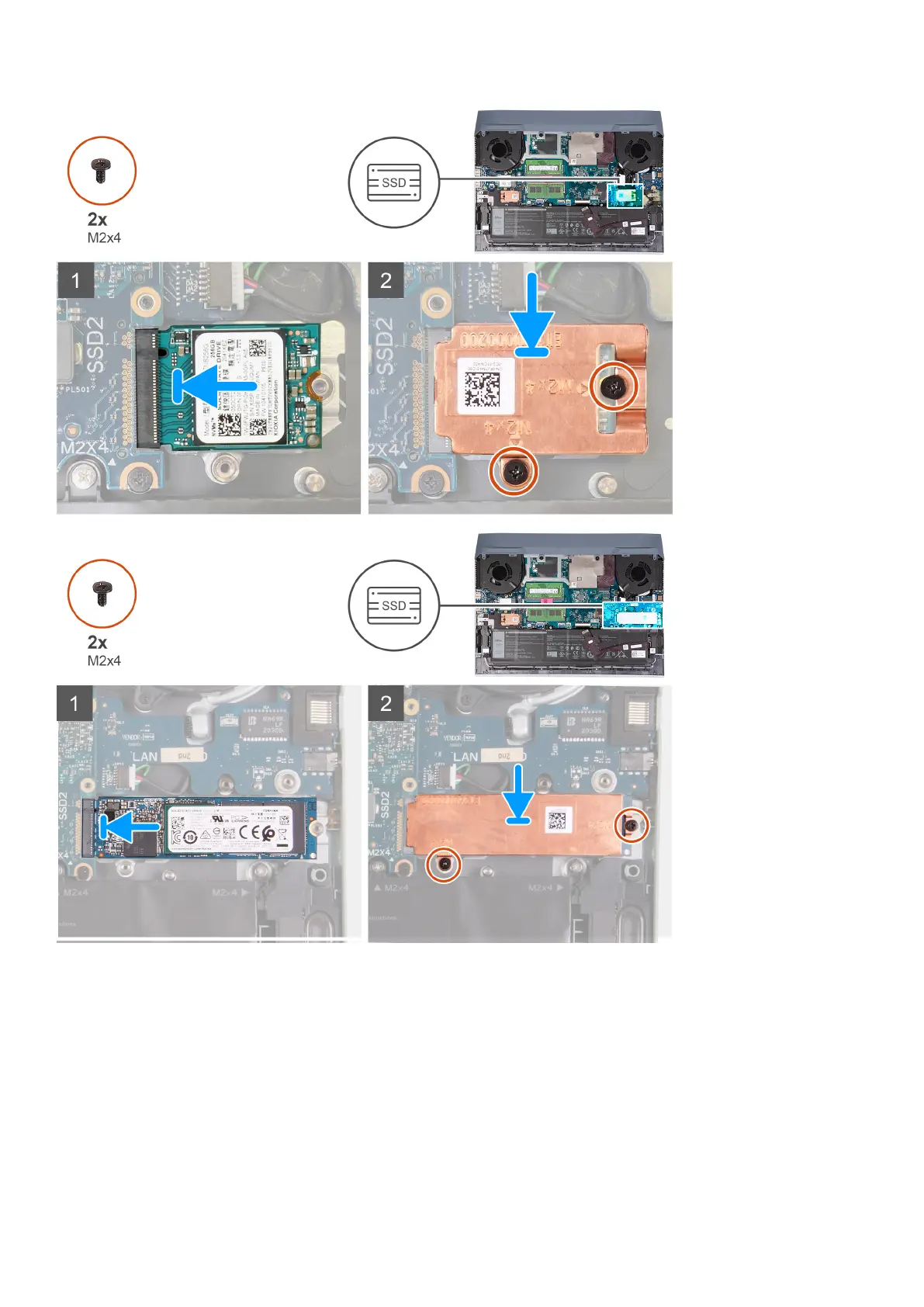

1. Align the notches on the solid-state drive with the tab on the solid-state drive slot.

2. Slide the solid-state drive into the solid-state drive slot.

3. Place the solid-state drive bracket on the solid-state drive

4. Align the screw holes on the thermal shield with the screw holes on the solid-state drive and system board.

5. Replace the two screws (M2x4) that secure the solid-state drive to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing and installing components
