Steps

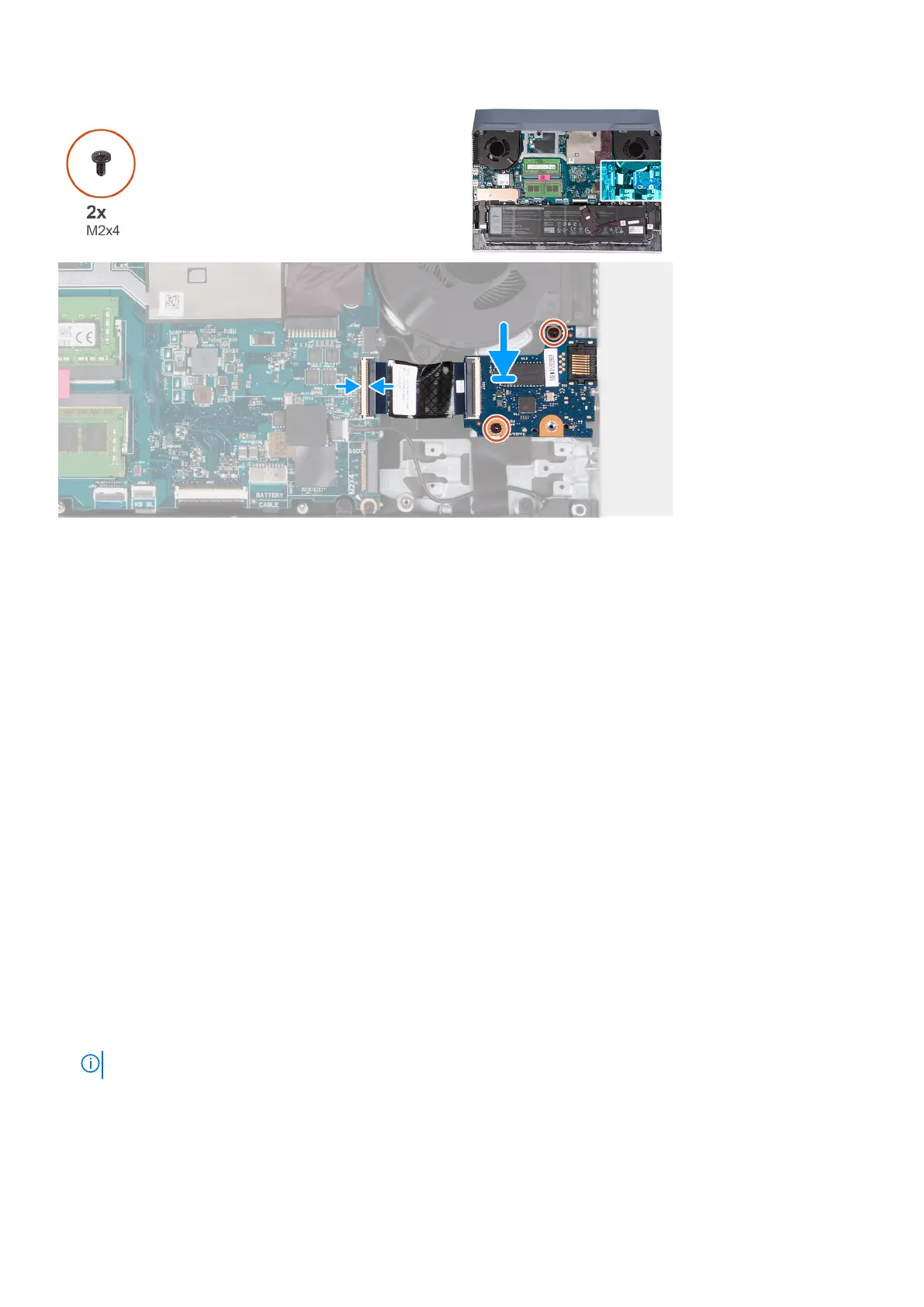

1. Open the latch and connect the I/O board cable to the system board and close the latch.

2. Align the screw holes on the I/O board with the screw holes on the palm-rest and keyboard assembly.

3. Install the two screws (M2x4) that secure the I/O board to the palm-rest and keyboard assembly.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Power button

Removing the power button

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the battery.

4. Remove the rear cover.

5. Remove the solid-state drive .

6. Remove the solid-state drive 2.

7. Remove the wireless card.

8. Remove the memory module.

9. Remove the system board.

NOTE: System board can be removed with the heat sink, and USB board attached.

About this task

The following images indicate the location of the power button and provide a visual representation of the removal procedure.
