USB board
Removing the USB board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive 1.
6. Remove the solid-state drive 2.
7. Remove the wireless card.
8. Remove the memory module.
9. Follow the procedure from step 1 to step 16 in Removing the system board.
NOTE: System board can be removed with the heat sink and USB board attached.
About this task

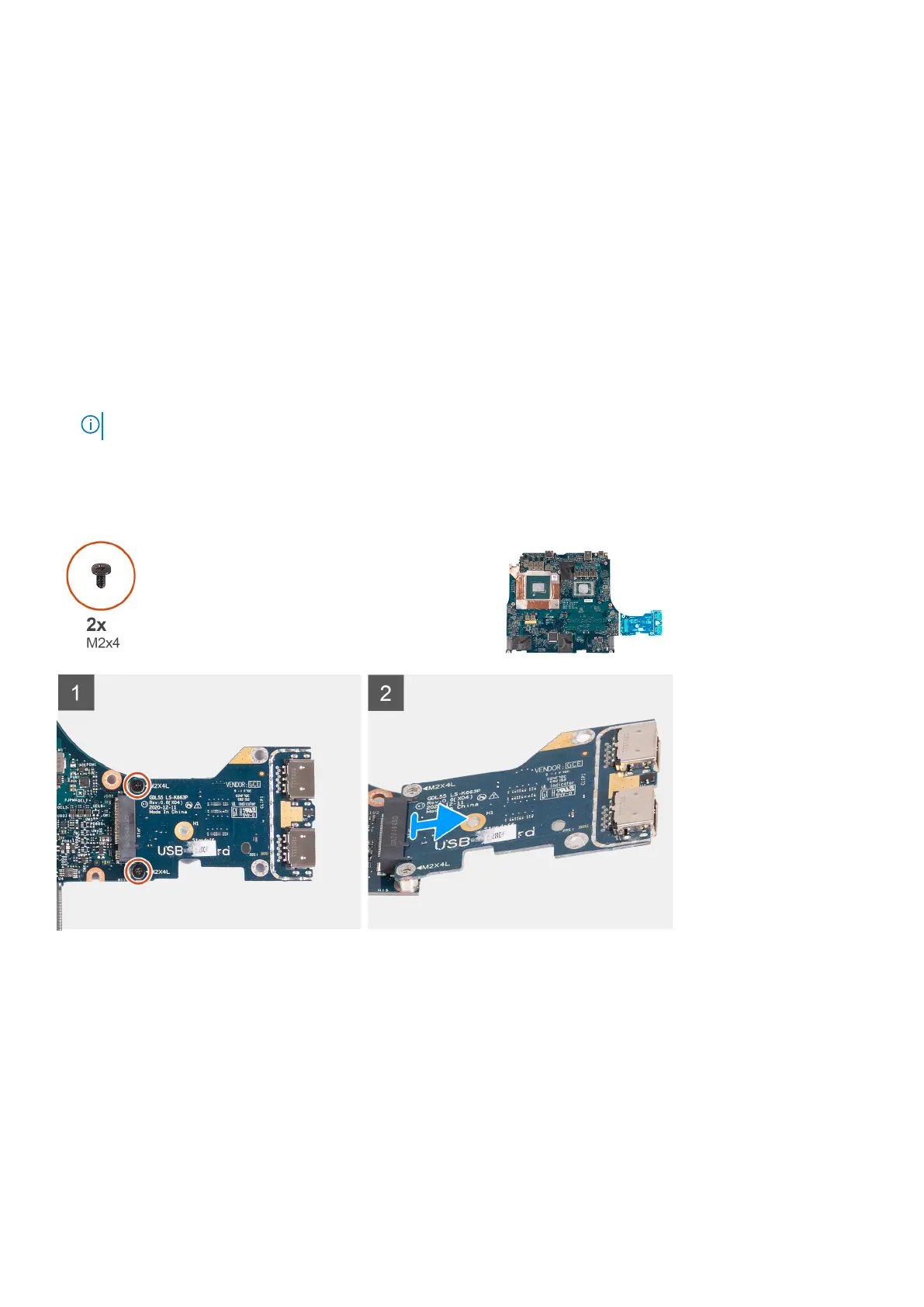

The following image indicates the location of the USB board and provides a visual representation of the removal procedure.
Steps
1. Turn the system board over.
2. Remove the two screws (M2x4) that secure the USB board to the system board.
3. Remove the USB board from the system board.
Installing the USB board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
