Power/Battery Status Light Board
Dell™Inspiron™1011ServiceManual
Removing the Power/Battery Status Light Board
Replacing the Power/Battery Status Light Board

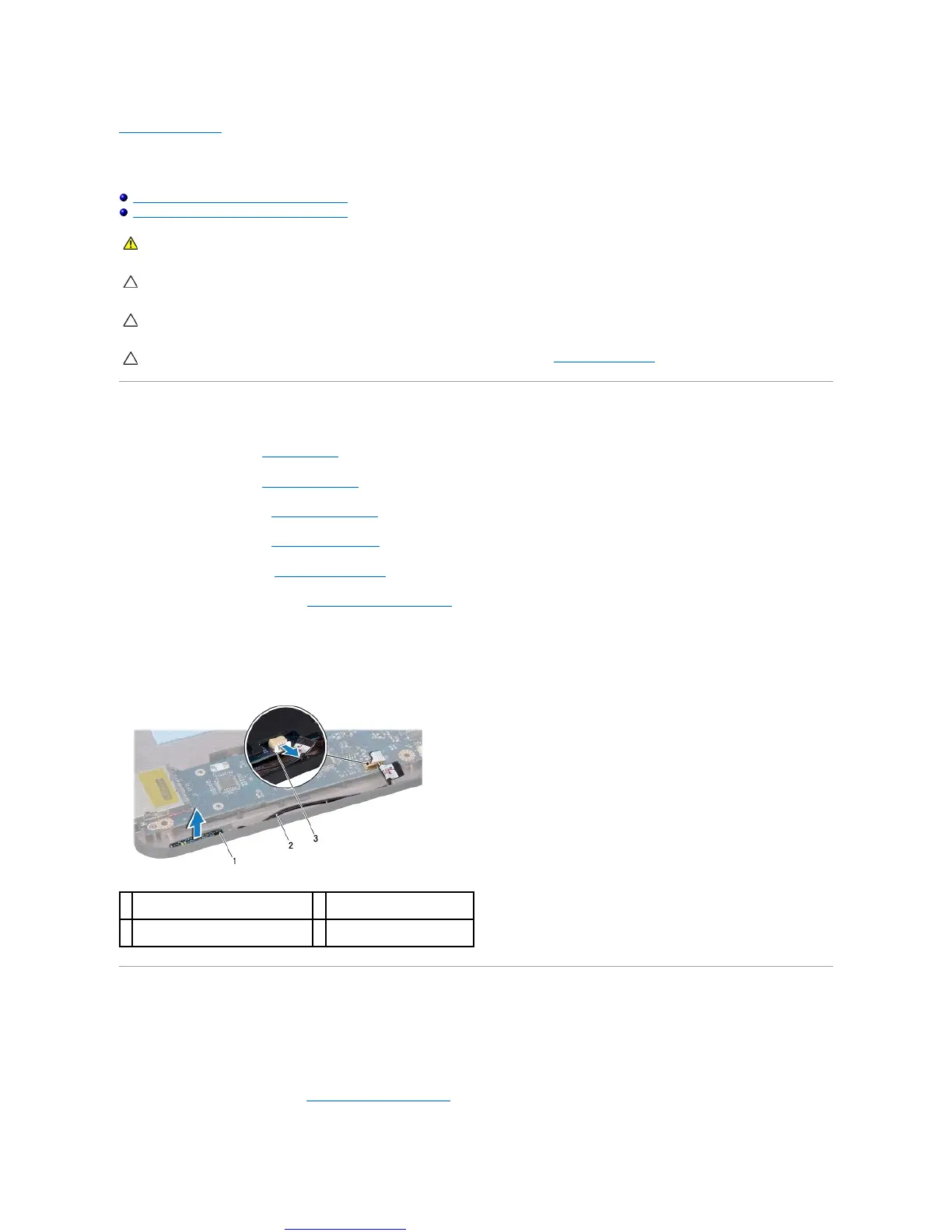

Removing the Power/Battery Status Light Board
1. Follow the instructions in Before You Begin.
2. Remove the battery (see Removing the Battery).
3. Remove the keyboard (see Removing the Keyboard).
4. Remove the palm rest (see Removing the Palm Rest).
5. Remove the hard drive (see Removing the Hard Drive).
6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).
7. Disconnect the power/battery status light board cable from the system board connector, if you have not already done so while removing the palm rest
bracket.
8. Lift the power/battery status light board off the computer base.
Replacing the Power/Battery Status Light Board
1. Align the holes on the power/battery status light board to the protrusion on the computer base and keep it in place.
2. Connect the power/battery status light board cable to the system board connector.
3. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
