Dell Inspiron 3420 User Manual

70 Camera Module
Replacing the Camera Module
1 Follow the instructions in "Before You Begin" on page 9.
2 Connect the camera cable to the connector on the camera module.
3 Use the alignment posts on the display cover to place the camera module
in position and snap the camera module into place.
4 Replace the display bezel (see "Replacing the Display Bezel" on page 63).
5 Replace the display assembly (see "Replacing the Display Assembly" on
page 61).
6 Replace the hinge cover (see "Replacing the Hinge Cover" on page 57).
7 Replace the USB board (see "Replacing the USB Board" on page 48).

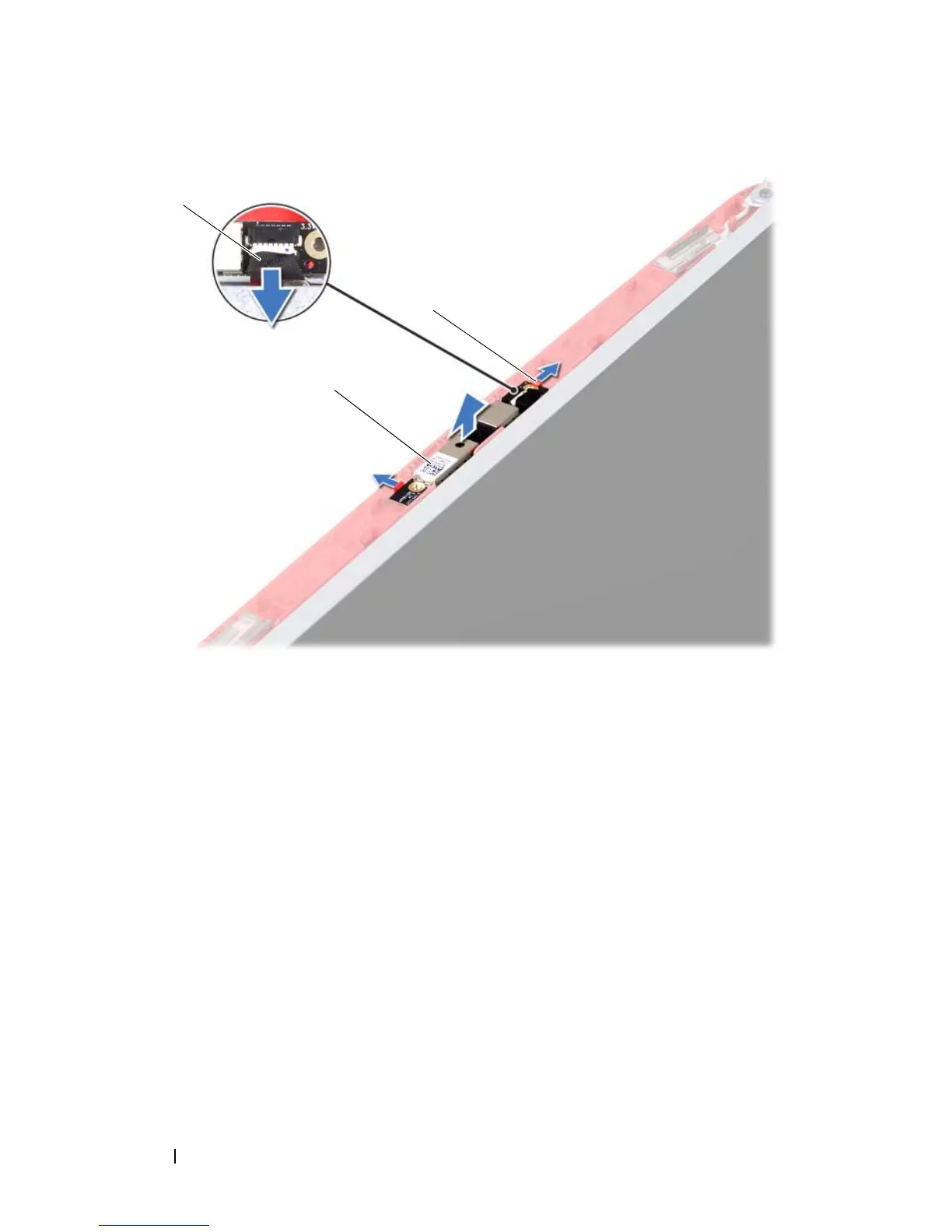

1 camera module 2 camera cable
3 tabs (2)
1
2
3

Dell Inspiron 3420 Specifications

General

CPU	Intel Core i3/i5/i7 (varies by model)
Memory	Up to 8GB DDR3
Storage	Up to 500GB HDD
Display	14.0 inch HD (1366x768)
Graphics	NVIDIA GeForce GT 620M
Operating System	Windows 7/8
Battery	6-cell Lithium Ion
Ports	USB 2.0, USB 3.0, HDMI, VGA, Ethernet, Headphone/Microphone combo jack
Wireless	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
