Dell Inspiron 3505 User Manual

Steps
1. Place the display assembly on the palm-rest and keyboard assembly.
2. Align the screw holes on the display hinges with the screw holes on the palm-rest and keyboard assembly.
3. Replace the 6 screws (M2.5x6) that secure the display hinges to the palm-rest and keyboard assembly.

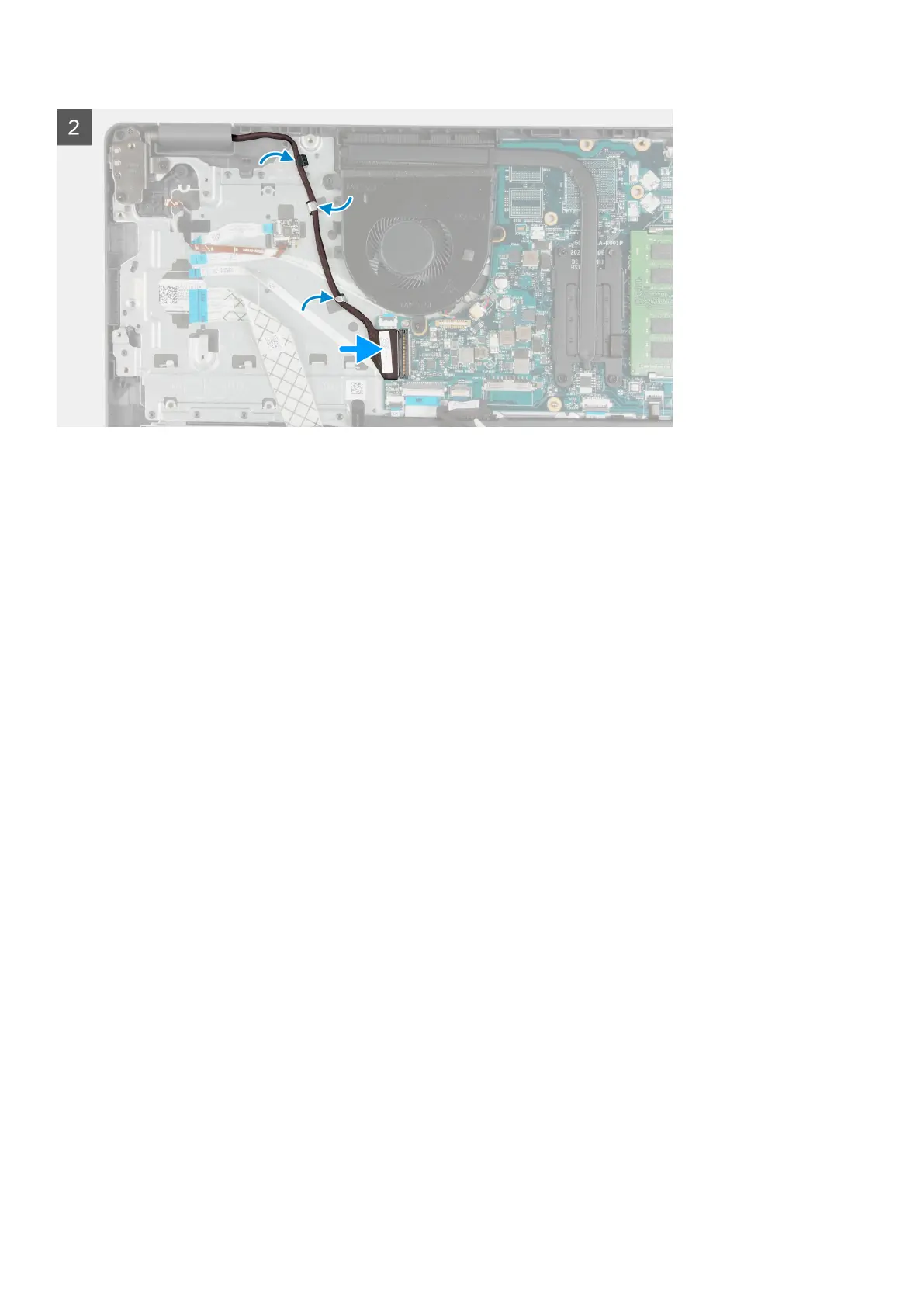

4. Route the display cable through the routing guides on the palm-rest and keyboard assembly.
5. Connect the display cable to the connector on the system board.
Next steps
1. Install the wireless card.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Display bezel
Removing the display bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the wireless card.
4. Remove the display assembly.
About this task
The following images indicate the location of the display bezel and provides a visual representation of the removal procedure.
Removing and installing components
45

Dell Inspiron 3505 Specifications

General

Processor	AMD Ryzen 5 3450U
RAM	8GB DDR4
Storage	256GB SSD
Display	15.6-inch FHD (1920 x 1080)
Operating System	Windows 10 Home
Battery	3-Cell, 42 WHr
Weight	1.83 kg
Graphics	Integrated AMD Radeon Graphics
Ports	2 x USB 3.2 Gen 1, 1 x USB 2.0, 1 x HDMI, 1 x SD card reader
Wireless	802.11ac Wi-Fi and Bluetooth
