Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

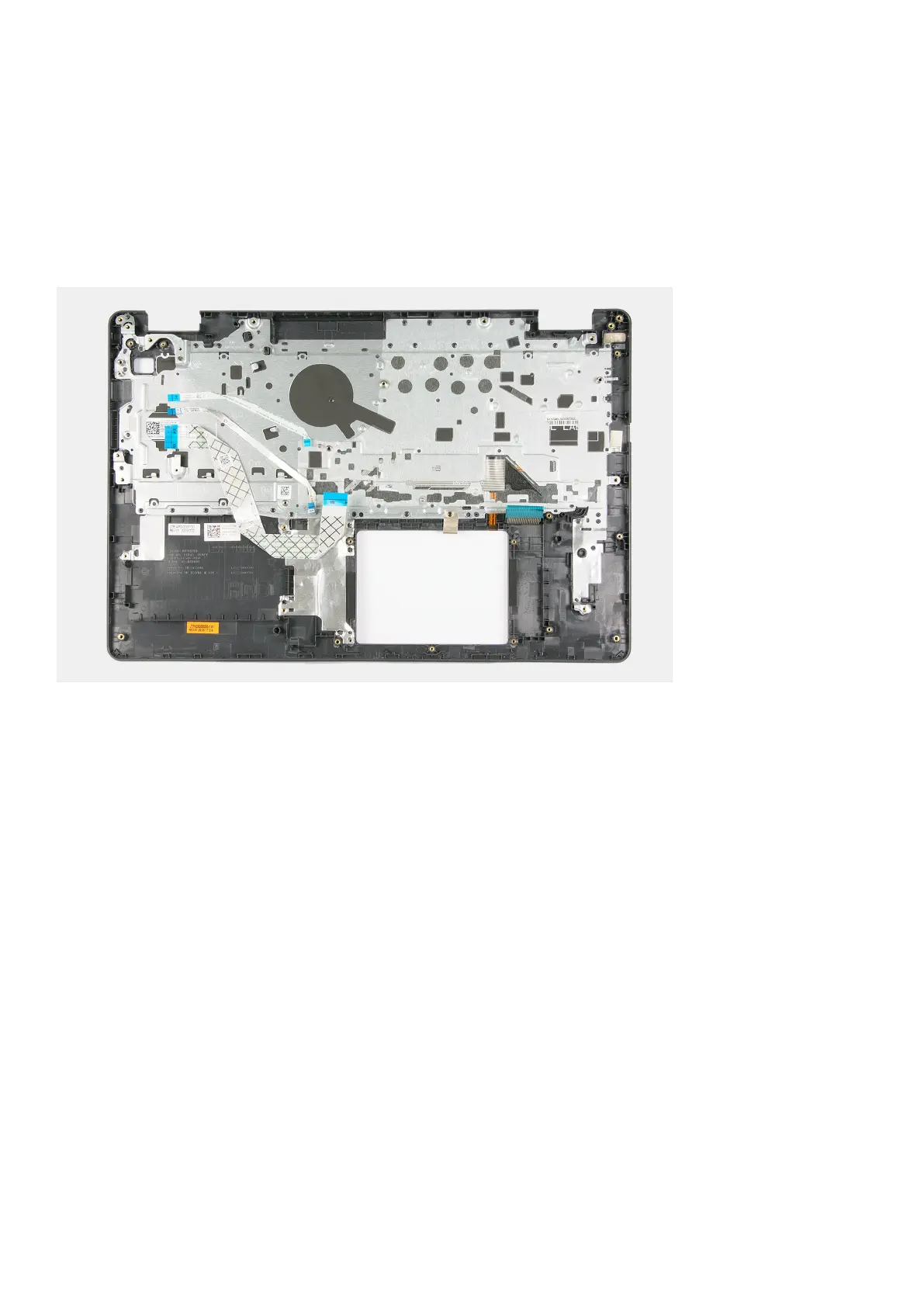

The following images indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
Steps
Place the palm-rest and keyboard assembly on a flat and clean surface and perform the post-requisites to install the palm-rest
and keyboard assembly.
Next steps
1. Install the power-adapter port.
2. Install the system board.
3. Install the power-button with optional fingerprint reader.
4. Install the I/O board.
5. Install the speakers.
6. Install the touchpad.
7. Install the fingerprint-reader board.
8. Install the display assembly.
9. Install the wireless card.
10. Install the fan.
11. Install the hard drive.
12. Install the M.2 2230 solid-state drive, if applicable.
13. Install the M.2 2280 solid-state drive, if applicable.
14. Install the base cover.
15. Follow the procedure in After working inside your computer.
Removing and installing components
63
