Dell Inspiron 3505 User Manual

About this task

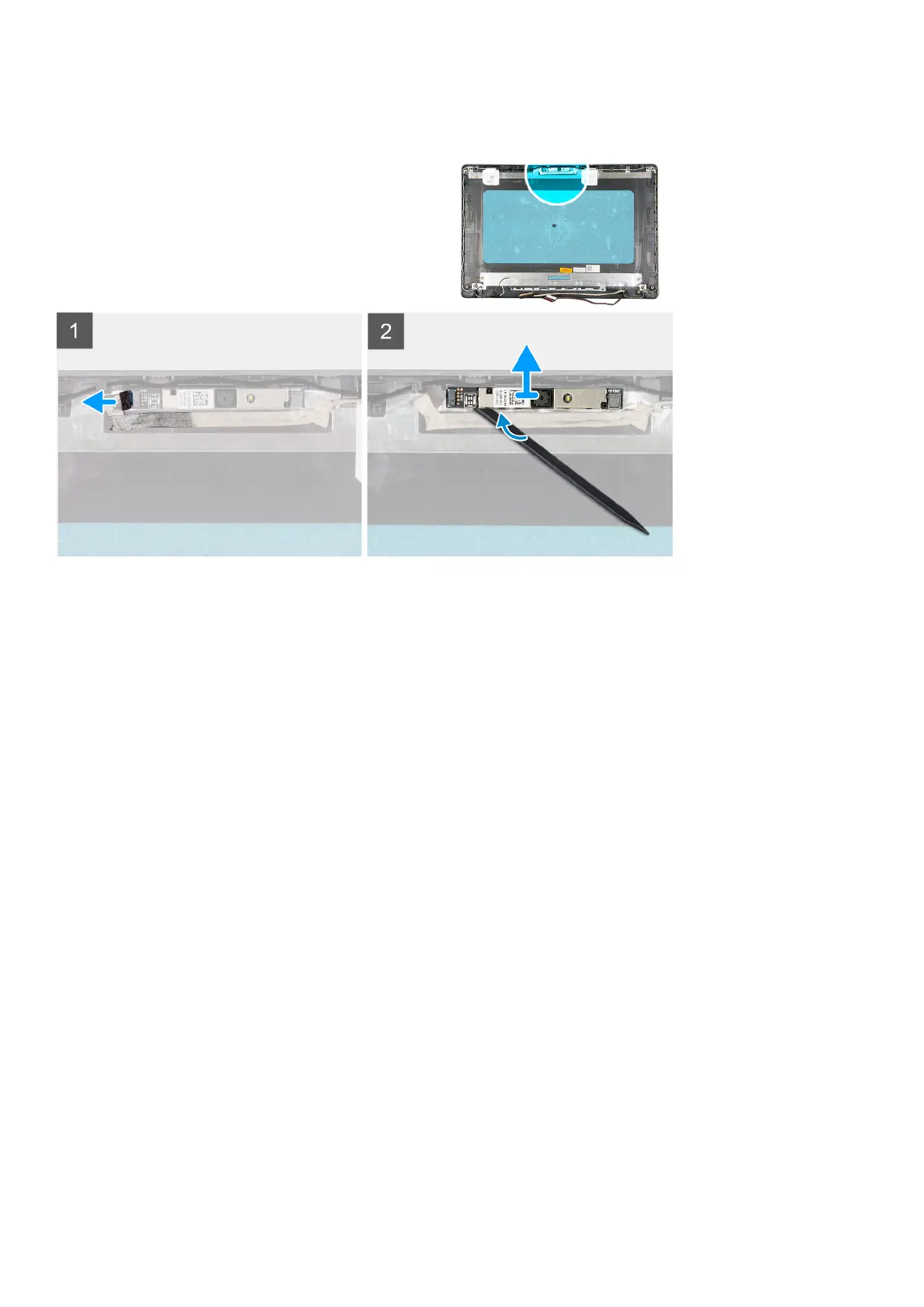

The following images indicate the location of the camera and provides a visual representation of the removal procedure.
Steps
1. Using the pull tab, disconnect the camera cable from the camera.
2. Using a plastic scribe, pry the camera from the display assembly.
3. Lift the camera off the display assembly.
Installing the camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the camera and provides a visual representation of the installation procedure.
52
Removing and installing components

Dell Inspiron 3505 Specifications

General

Processor	AMD Ryzen 5 3450U
RAM	8GB DDR4
Storage	256GB SSD
Display	15.6-inch FHD (1920 x 1080)
Operating System	Windows 10 Home
Battery	3-Cell, 42 WHr
Weight	1.83 kg
Graphics	Integrated AMD Radeon Graphics
Ports	2 x USB 3.2 Gen 1, 1 x USB 2.0, 1 x HDMI, 1 x SD card reader
Wireless	802.11ac Wi-Fi and Bluetooth
