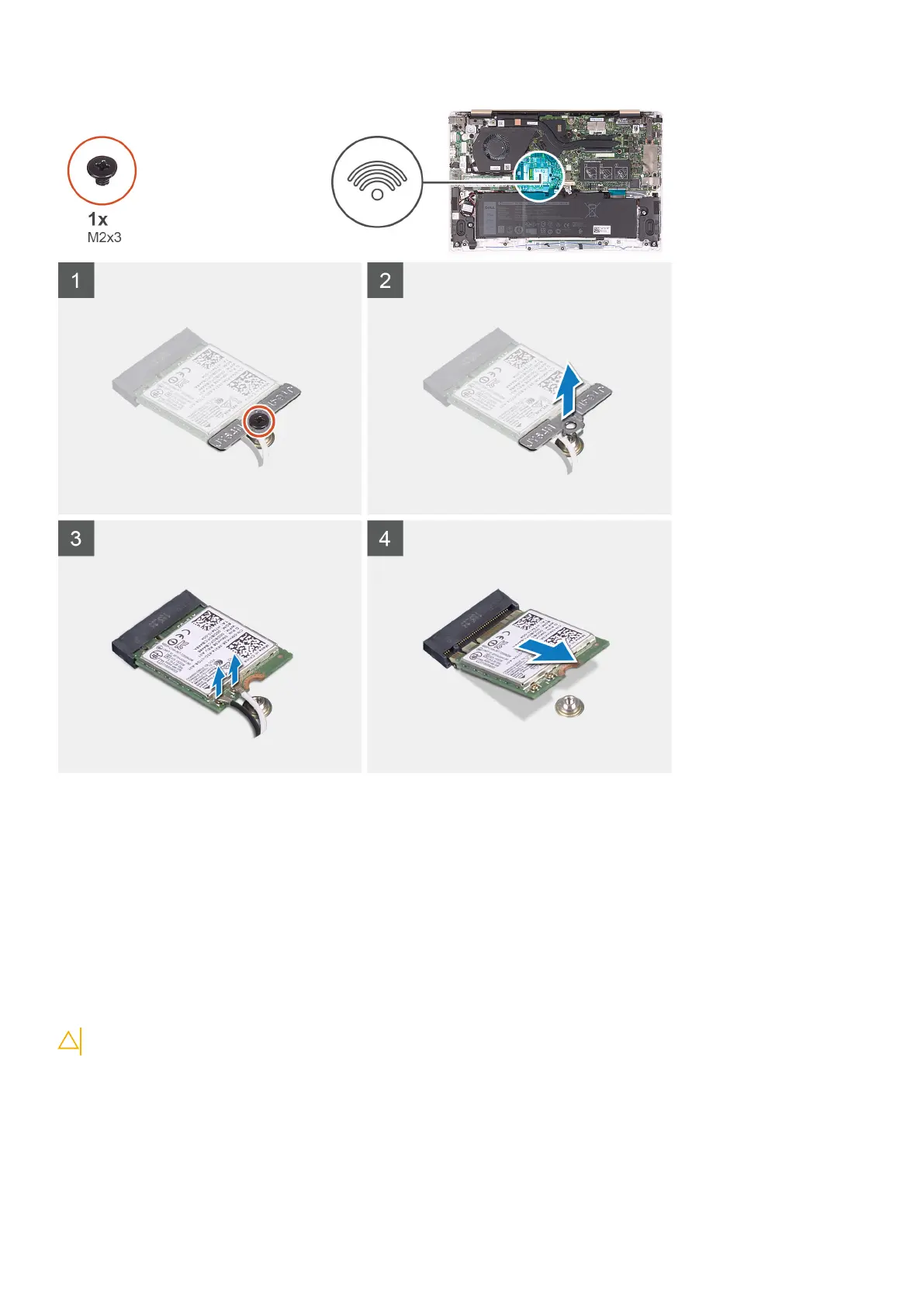

Steps
1. Remove the screw (M2x3) that secures the wireless-card bracket to the wireless card.
2. Remove the wireless-card bracket off the wireless card.
3. Disconnect the antenna cables from the wireless card.
4. Slide and remove the wireless card from the wireless-card slot.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: To avoid damage to the wireless card, do not place any cables under it.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the installation procedure.
24
Removing and installing components
