4. Open the respective latches and disconnect the touchpad cable, the keyboard-backlight cable, and the keyboard cable from
their connectors on the system board.
5. Remove the five screws (M2x2) and the two screws (M2x3) that secure the system board to the palm-rest and keyboard
assembly.
6. Lift the system board off the palm-rest and keyboard assembly.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

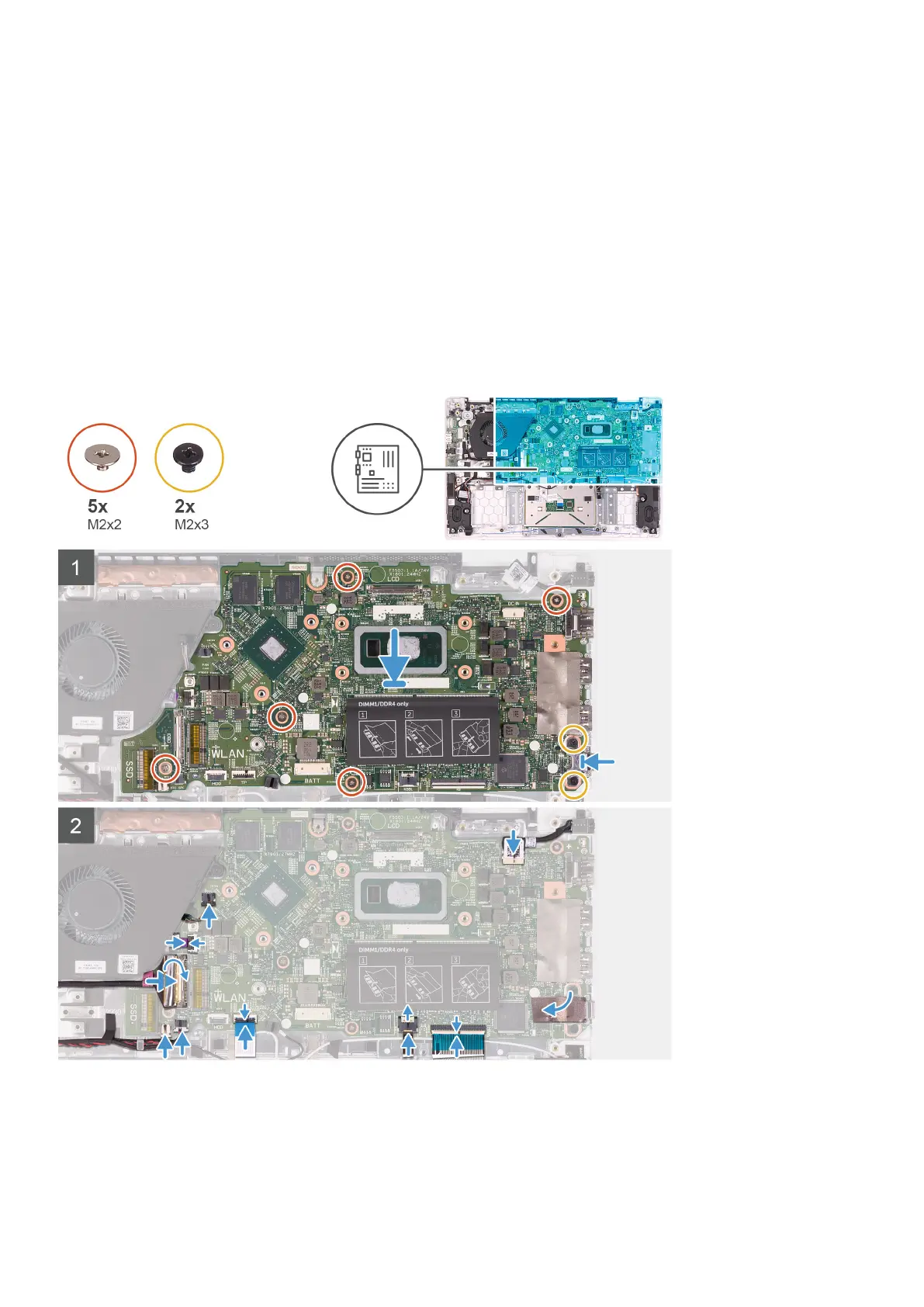

The following image indicates the location of system board and provides a visual representation of the installation procedure.
Steps
1. Align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly.
2. Replace the five screws (M2x2) and the two screws (M2x3) that secure the system board to the palm-rest and keyboard
assembly.
Removing and installing components
53
