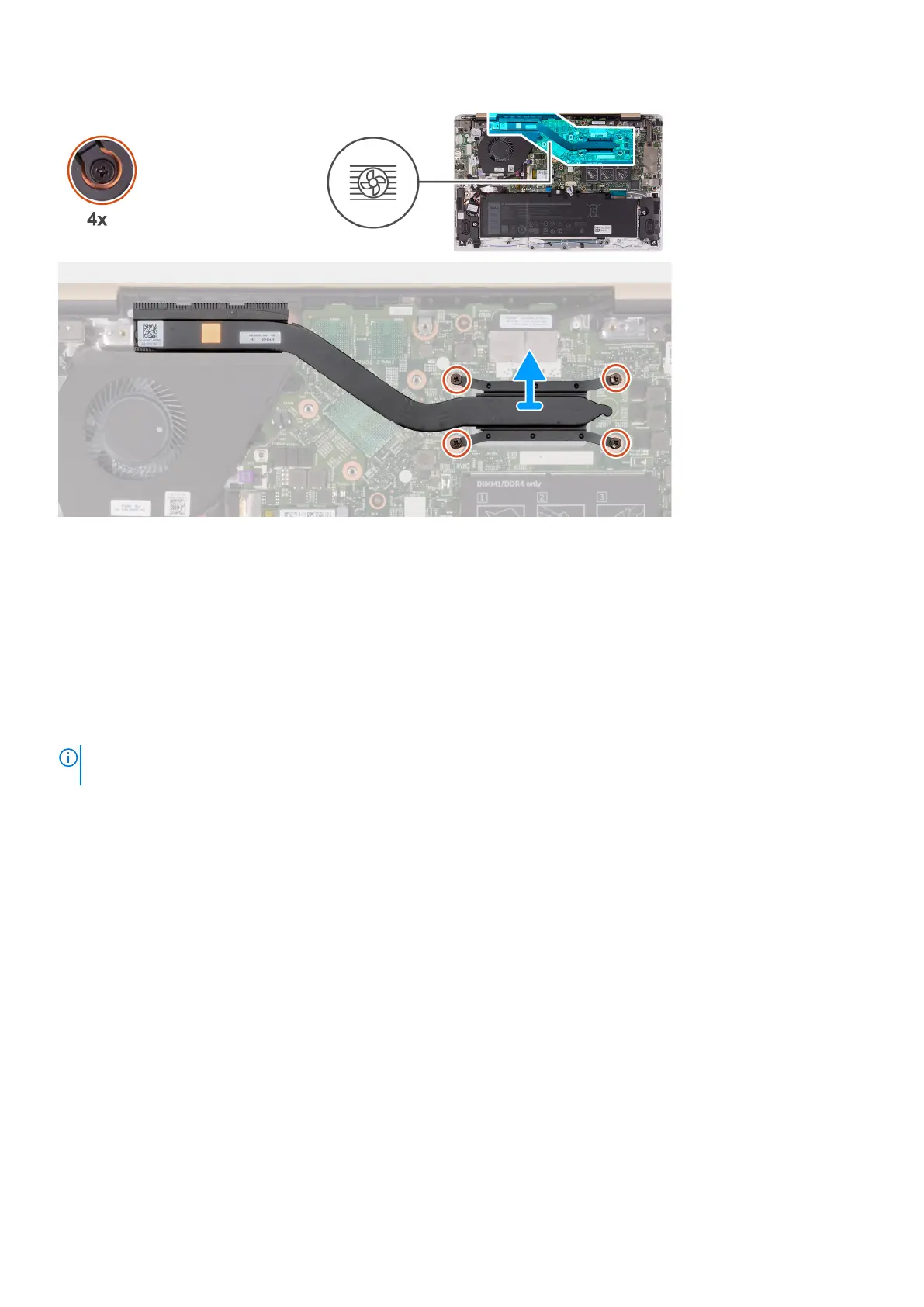

Steps
1. In reverse-sequential order (as indicated on the heat sink), loosen the four captive screws that secure the heat sink to the
system board.
2. Lift the heat sink off the system board.
Installing the heat sink (integrated graphics)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE:
If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that
thermal conductivity is achieved.
About this task
The following image indicates the location of the heat sink (on systems with the integrated graphics option) and provides a
visual representation of the installation procedure.
28
Removing and installing components
