Dell Inspiron 9300 Service Manual

Great user manuals database on UserManuals.info

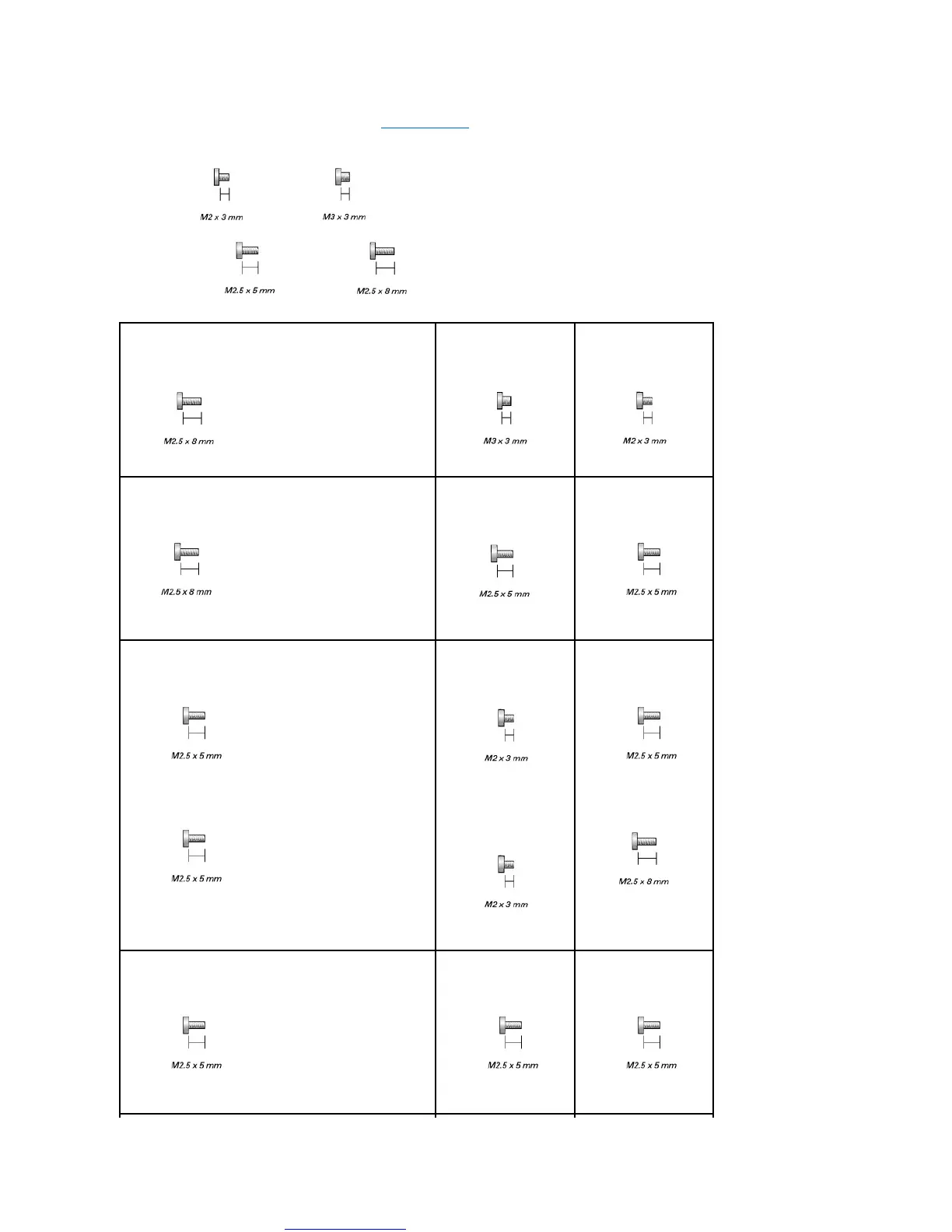

When you are removing and replacing components, print "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides the
number of screws and their sizes.
Optical Drive:
(1 each)
Hard Drive:
(2 each)
Modem:
(1 each)
Internal Card With Bluetooth®Wireless Technology:
(1 each)

Keyboard:
(2 each)

Display Assembly:
(4 each)

Display Bezel:
(4 each, under rubber display bumpers)
(4 each, shoulder type, under 2 screw covers and 2 rubber bumpers)

Display Panel:
(8 each)
Display Ground Screw:
(1 each)

Palm Rest:
(7 each – top side)
(11 each – bottom side)

Speakers:
(4 total – 2 per speaker)

USB Port Board:
(1 each)

Fans (2):
(4 total – 2 per fan)


Dell Inspiron 9300 Specifications

General

Operating System	Windows XP Home or Professional
Hard Drive Interface	IDE
Battery	9-cell Lithium Ion
Processor	Intel Pentium M
Display	17 inch
Graphics	NVIDIA GeForce Go 6800
Memory	Up to 2GB DDR2
Storage	Up to 100GB HDD
Optical Drive	DVD+/-RW
Chipset	Intel 915PM
Wireless	Intel PRO/Wireless 2200
Ports	VGA, S-Video, IEEE 1394
