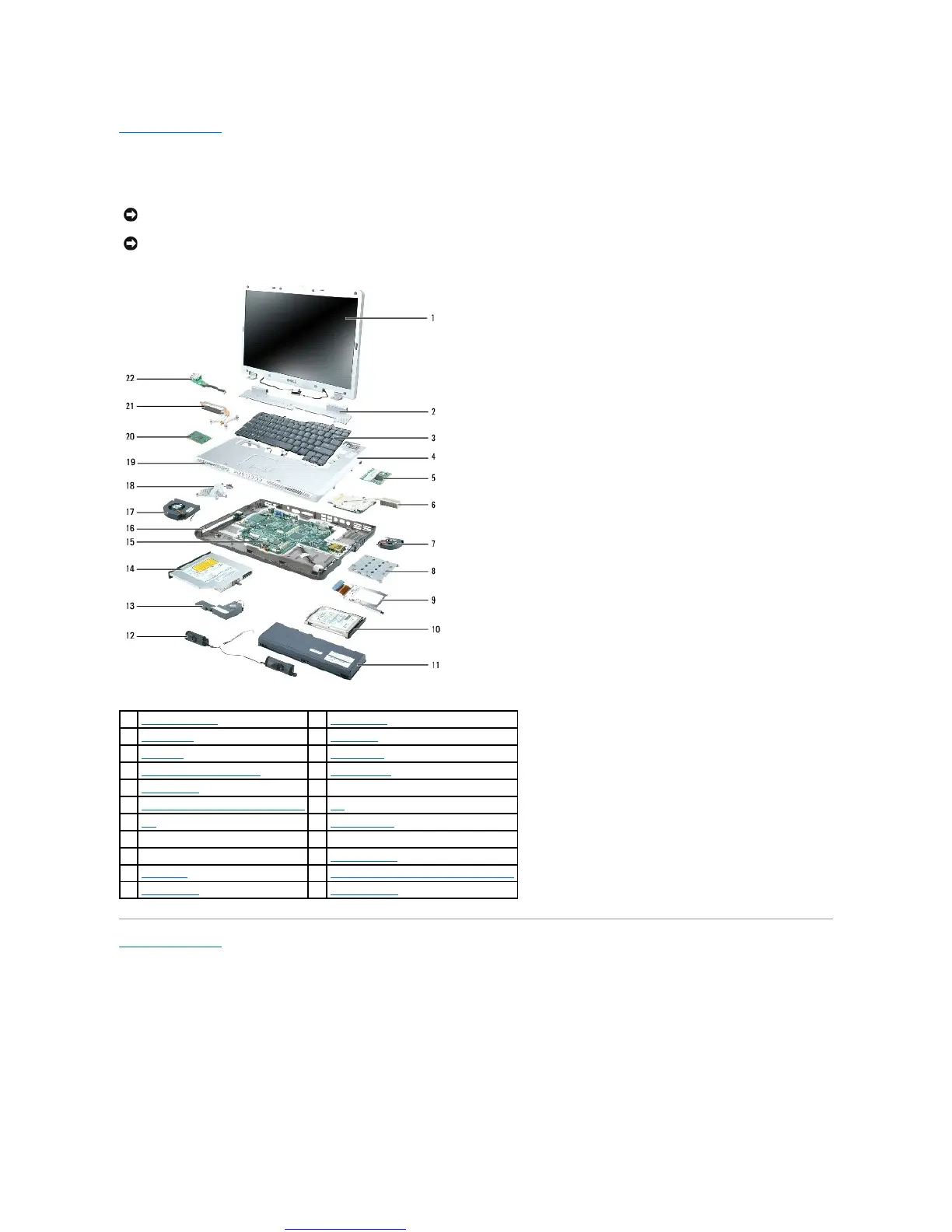

 System Components
Dell™Inspiron™9300ServiceManual
Back to Contents Page

NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.
1
display assembly
12
speakers (2)
2
hinge cover
13
subwoofer
3
keyboard
14
optical drive
4
palm rest (with touch pad)
15
system board
5
Mini PCI card
16
computer base
6
video card/thermal cooling assembly
17
fan
7
fan
18
MCH heat sink
8
hard drive bay
19
speaker grille
9
PC Card cage
20
microprocessor
10
hard drive
21
microprocessor thermal-cooling assembly
11
main battery
22
USB port board

Dell Inspiron 9300 Specifications

General

Operating System	Windows XP Home or Professional
Hard Drive Interface	IDE
Battery	9-cell Lithium Ion
Processor	Intel Pentium M
Display	17 inch
Graphics	NVIDIA GeForce Go 6800
Memory	Up to 2GB DDR2
Storage	Up to 100GB HDD
Optical Drive	DVD+/-RW
Chipset	Intel 915PM
Wireless	Intel PRO/Wireless 2200
Ports	VGA, S-Video, IEEE 1394
