Back to Contents Page

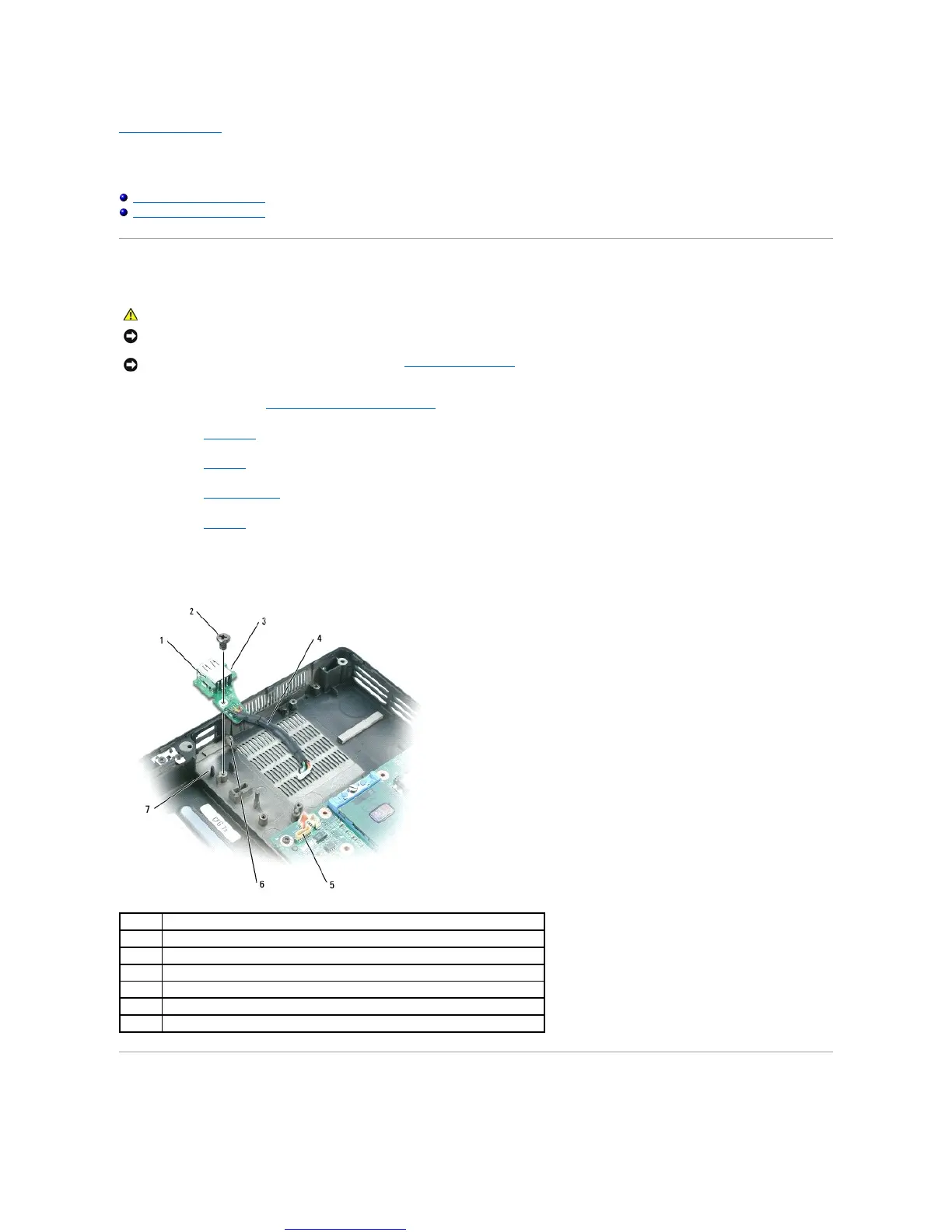

 USB Port Board
Dell™Inspiron™9300ServiceManual
Removing the USB Port Board
Replacing the USB Port Board
Removing the USB Port Board


1. Follow the instructions in "Before Working Inside Your Computer."

2. Remove the hinge cover.

3. Remove the keyboard.

4. Remove the display assembly.

5. Remove the palm rest.

6. Disconnect the USB-port-board cable connector from the system board.

7. Remove the M2.5 x 5-mm screw, and lift the board up and out of the computer.
Replacing the USB Port Board

CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
1
USB port board
2
M2.5 x 5-mm screw
3
notch
4
USB-port-board cable
5
system board connector
6
tab
7
pin

Dell Inspiron 9300 Specifications

General

Operating System	Windows XP Home or Professional
Hard Drive Interface	IDE
Battery	9-cell Lithium Ion
Processor	Intel Pentium M
Display	17 inch
Graphics	NVIDIA GeForce Go 6800
Memory	Up to 2GB DDR2
Storage	Up to 100GB HDD
Optical Drive	DVD+/-RW
Chipset	Intel 915PM
Wireless	Intel PRO/Wireless 2200
Ports	VGA, S-Video, IEEE 1394
