 MCH Heat Sink
Dell™Inspiron™9300ServiceManual
Removing the MCH Heat Sink
Replacing the MCH Heat Sink
Removing the MCH Heat Sink


1. Follow the instructions in "Before Working Inside Your Computer."

2. Remove the Mini PCI card (if applicable) and the optical drive.

3. Remove the hard drive.

4. Remove the hinge cover.

5. Remove the keyboard.

6. Remove the display assembly.

7. Remove the palm rest.

8. Remove the video card/thermal cooling assembly (if applicable).


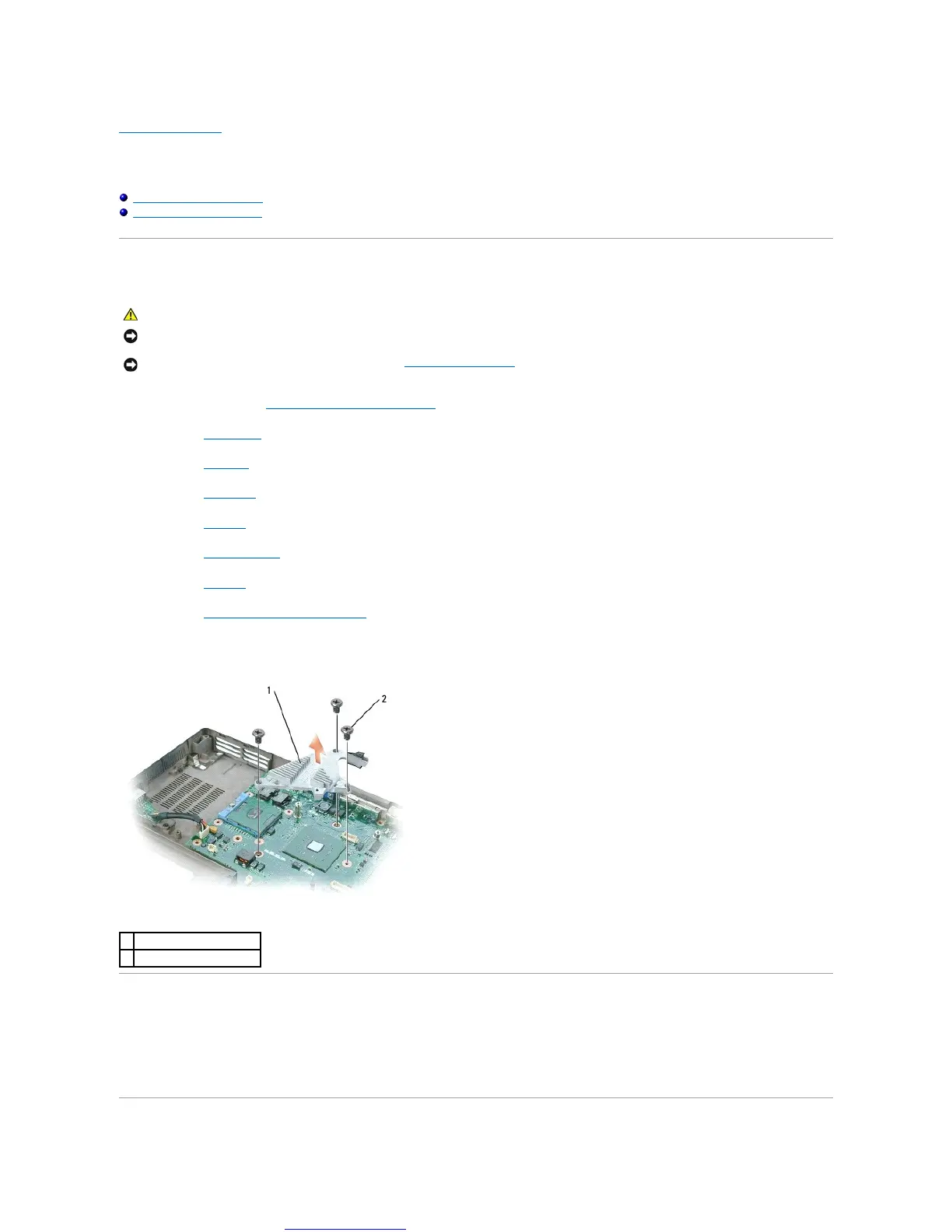

9. Remove the three M2.5 x 5-mm screws that secures the MCH heat sink to the system board.
Replacing the MCH Heat Sink

1. Place the MCH heat sink over the screw holes on the system board.

2. Replace the three M2.5 x 5-mm screws that secure the MCH heat sink to the system board.
CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
1
MCH heat sink
2
M2.5 x 5-mm screws (3)

Dell Inspiron 9300 Specifications

General

Operating System	Windows XP Home or Professional
Hard Drive Interface	IDE
Battery	9-cell Lithium Ion
Processor	Intel Pentium M
Display	17 inch
Graphics	NVIDIA GeForce Go 6800
Memory	Up to 2GB DDR2
Storage	Up to 100GB HDD
Optical Drive	DVD+/-RW
Chipset	Intel 915PM
Wireless	Intel PRO/Wireless 2200
Ports	VGA, S-Video, IEEE 1394
