Back to Contents Page
 Subwoofer
Dell™Inspiron™9300ServiceManual
Removing the Subwoofer
Replacing the Subwoofer
Removing the Subwoofer

If you ordered a subwoofer with your computer, it is already installed. To remove and replace a subwoofer:

1. Follow the instructions in "Before Working Inside Your Computer."

2. Remove the optical drive.

3. Remove the hinge cover.

4. Remove the keyboard.

5. Remove the display assembly.

6. Remove the palm rest.

7. Loosen the two captive screws that secure the subwoofer in place.

8. Disconnect the subwoofer cable connector from the system board.
Replacing the Subwoofer

1. Reconnect the subwoofer cable to the system board.

CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.

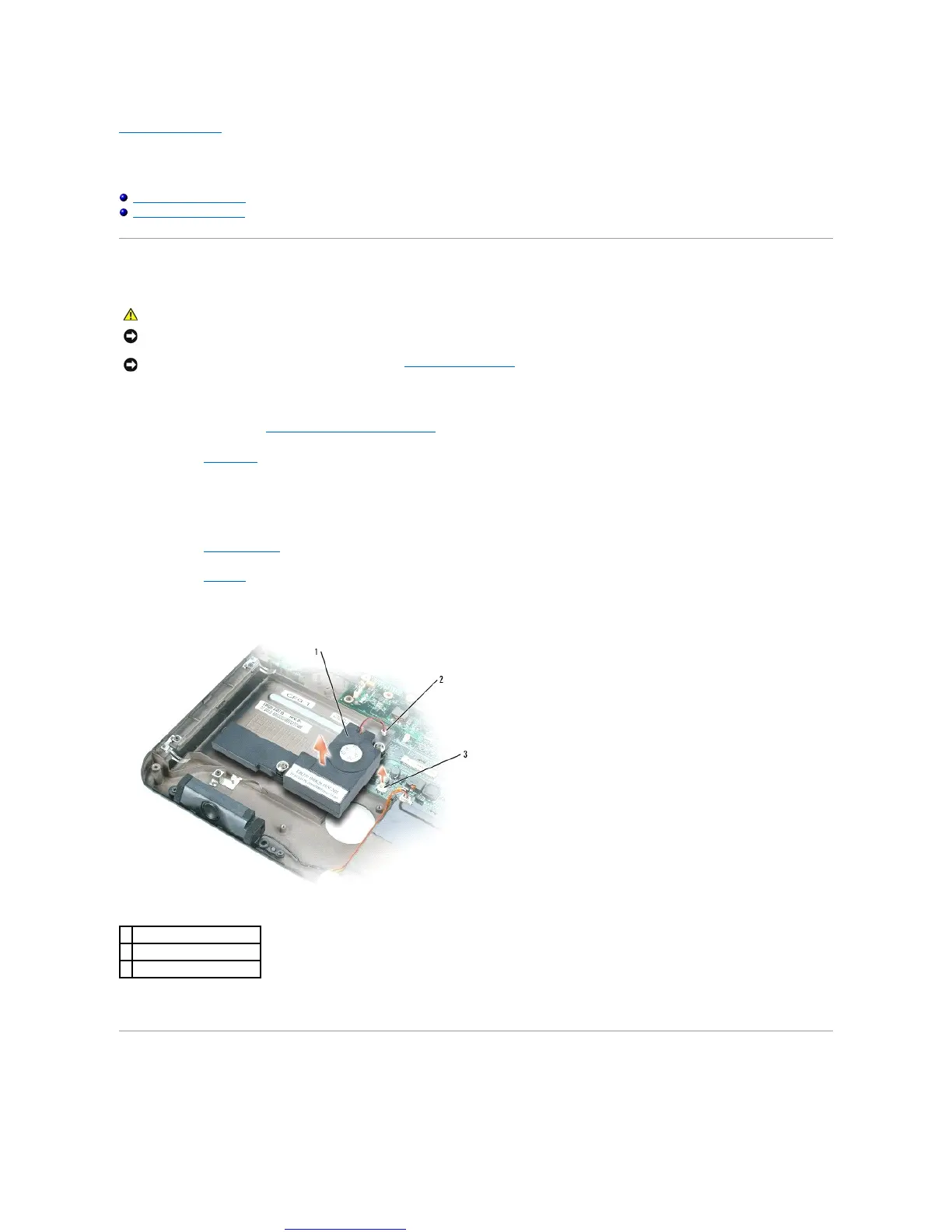

1
subwoofer
2
subwoofer cable connector
3
system board connector

Dell Inspiron 9300 Specifications

General

Operating System	Windows XP Home or Professional
Hard Drive Interface	IDE
Battery	9-cell Lithium Ion
Processor	Intel Pentium M
Display	17 inch
Graphics	NVIDIA GeForce Go 6800
Memory	Up to 2GB DDR2
Storage	Up to 100GB HDD
Optical Drive	DVD+/-RW
Chipset	Intel 915PM
Wireless	Intel PRO/Wireless 2200
Ports	VGA, S-Video, IEEE 1394
