Dell Latitude 7414 User Manual

4
Removing and installing components
This section provides detailed information on how to remove or install the components from your
computer.
Opening the press latch doors
The computer includes eight press latch doors:
• Four on the back of the computer
• Two on the right side of the computer
• Two on the left side of the computer

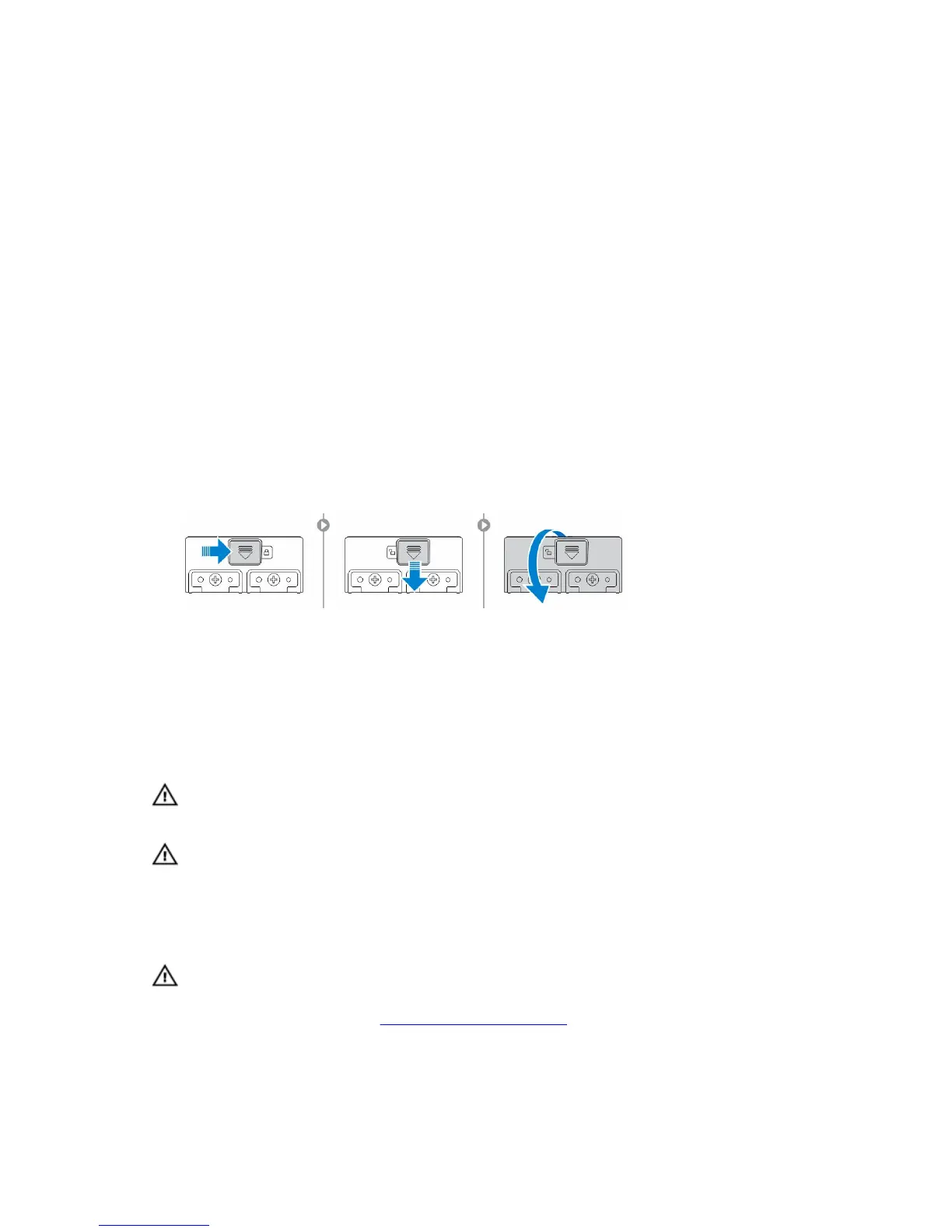

1. Slide the latch until the unlock icon is visible.
2. Press the latch and open the press latch door in the downward direction.
Closing the press latch doors
1. Close the latch door back by pressing it toward the computer.
2. To lock the latch doors, slide the latch until the lock icon is visible.
Removing the battery
WARNING: Using an incompatible battery may increase the risk of fire or explosion. Replace the
battery only with a compatible battery purchased from Dell. The battery is designed to work with
your Dell computer. Do not use a battery from other computers with your computer.
WARNING: Before removing or replacing the battery:
1. Turn off the computer.
2. Disconnect the AC adapter from the electrical outlet and the computer.
3. Disconnect the modem from the wall connector and computer.
4. Remove any other external cables from the computer.
WARNING: To prevent ignition in a hazardous atmosphere, batteries must only be removed,
changed or charged in an area known to be nonhazardous.
1. Open the press latch door, see Opening the press latch door.
10

Dell Latitude 7414 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black
AC adapter included	Yes
Intel segment tagging	Industrial
Maximum internal memory (64-bit)	32 GB
Bus type	QPI
Stepping	D1
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor socket	LGA 1356 (Socket B2)
Processor threads	4
Processor codename	Skylake
Configurable TDP-up	25 W
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x4, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.5 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR2F0
Processor ARK ID	88190
Processor package size	42 X 24 mm
CPU configuration (max)	1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	128 GB
Pixel pitch	0.1875 x 0.1875 mm
Display diagonal	14 \
Touch technology	Multi-touch
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
On-board graphics card ID	1916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Audio chip	Realtek ALC3235
Speaker power	2 W
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
DisplayPorts quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Pointing device	Touchpad
Battery capacity	65 Wh
Number of battery cells	6
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
Operating altitude	-15.24 - 4572 m
Non-operating altitude	-15.24 - 9144 m
Storage temperature (T-T)	-51 - 71 °C
Operating temperature (T-T)	-29 - 63 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Motherboard chipset	Intel SoC

Weight and Dimensions

Depth	247 mm
Width	356 mm
Height	- mm
Weight	3540 g
