Dell Latitude 7414 User Manual

6
Quick Disconnect (QD) connector
Latitude fully rugged products come equipped with receptacles for QD (Quick Disconnect) connectors at
the corners. These receptacles allow the connection of optional accessories such as shoulder straps.
Installing the QD connector

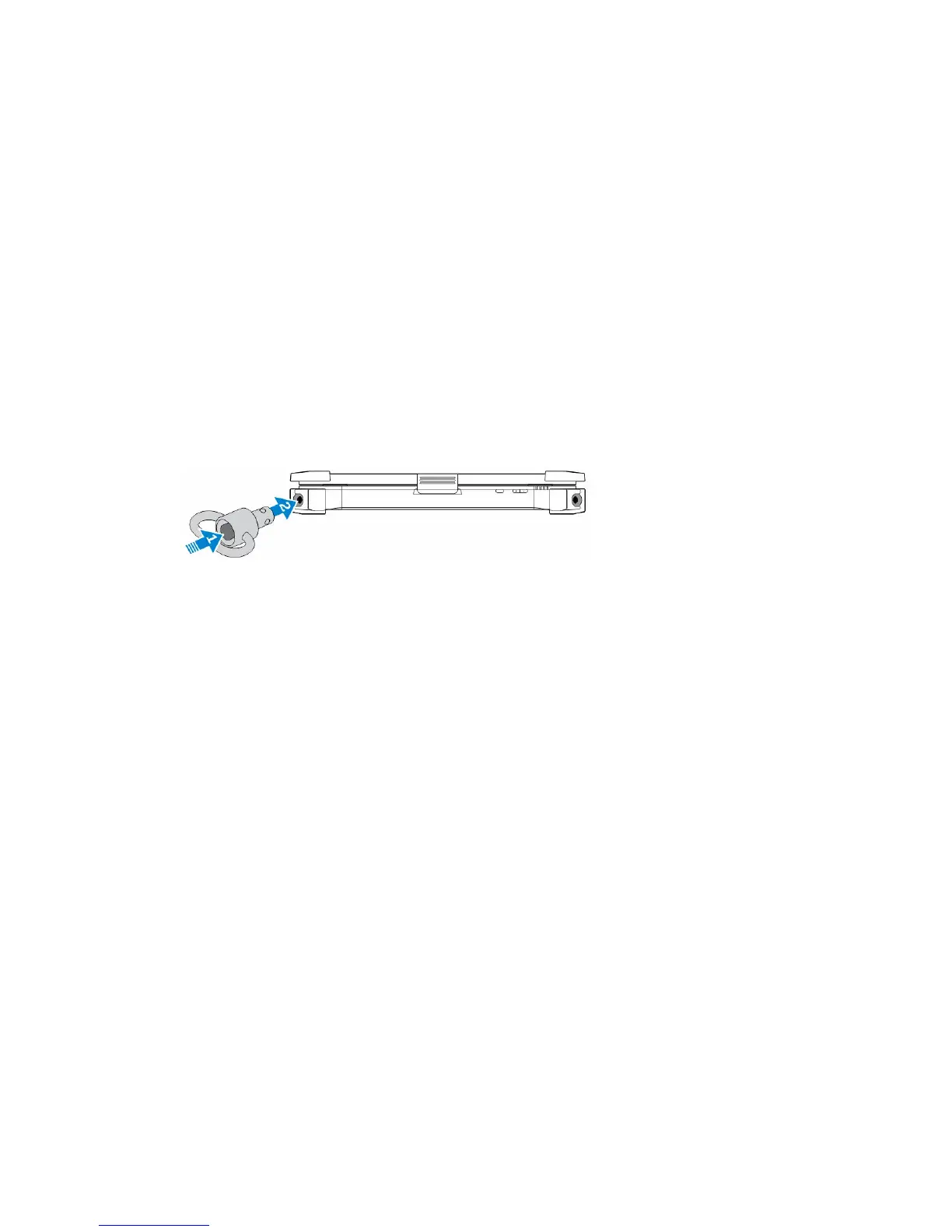

1. Align the QD connector to the receptacle on the corner of the computer.
2. Press and hold the button on top of the QD connector.
3. Insert the QD connector into the receptacle, while holding the button pressed [1, 2].
4. Release the button after the connector is seated in the receptacle to secure it.
Removing the QD connector
1. Press and hold the button on top of the QD connector.
2. Pull the connector out of the receptacle while holding the button pressed.
16

Dell Latitude 7414 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black
AC adapter included	Yes
Intel segment tagging	Industrial
Maximum internal memory (64-bit)	32 GB
Bus type	QPI
Stepping	D1
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor socket	LGA 1356 (Socket B2)
Processor threads	4
Processor codename	Skylake
Configurable TDP-up	25 W
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x4, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.5 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR2F0
Processor ARK ID	88190
Processor package size	42 X 24 mm
CPU configuration (max)	1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	128 GB
Pixel pitch	0.1875 x 0.1875 mm
Display diagonal	14 \
Touch technology	Multi-touch
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
On-board graphics card ID	1916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Audio chip	Realtek ALC3235
Speaker power	2 W
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
DisplayPorts quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Pointing device	Touchpad
Battery capacity	65 Wh
Number of battery cells	6
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
Operating altitude	-15.24 - 4572 m
Non-operating altitude	-15.24 - 9144 m
Storage temperature (T-T)	-51 - 71 °C
Operating temperature (T-T)	-29 - 63 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Motherboard chipset	Intel SoC

Weight and Dimensions

Depth	247 mm
Width	356 mm
Height	- mm
Weight	3540 g
