Dell Latitude D520 User Manual

c. Slide the card at a 45-degree angle out of its connector.

5. Install the card:
a. Move any antenna cables out of the way to make space for the WLAN card.
b. Align the card with the connector at a 45-degree angle, and press the card into the connector until it clicks.
c. Connect the antenna cables to the WLAN card, ensuring that you route the cables correctly.
Back to Contents Page


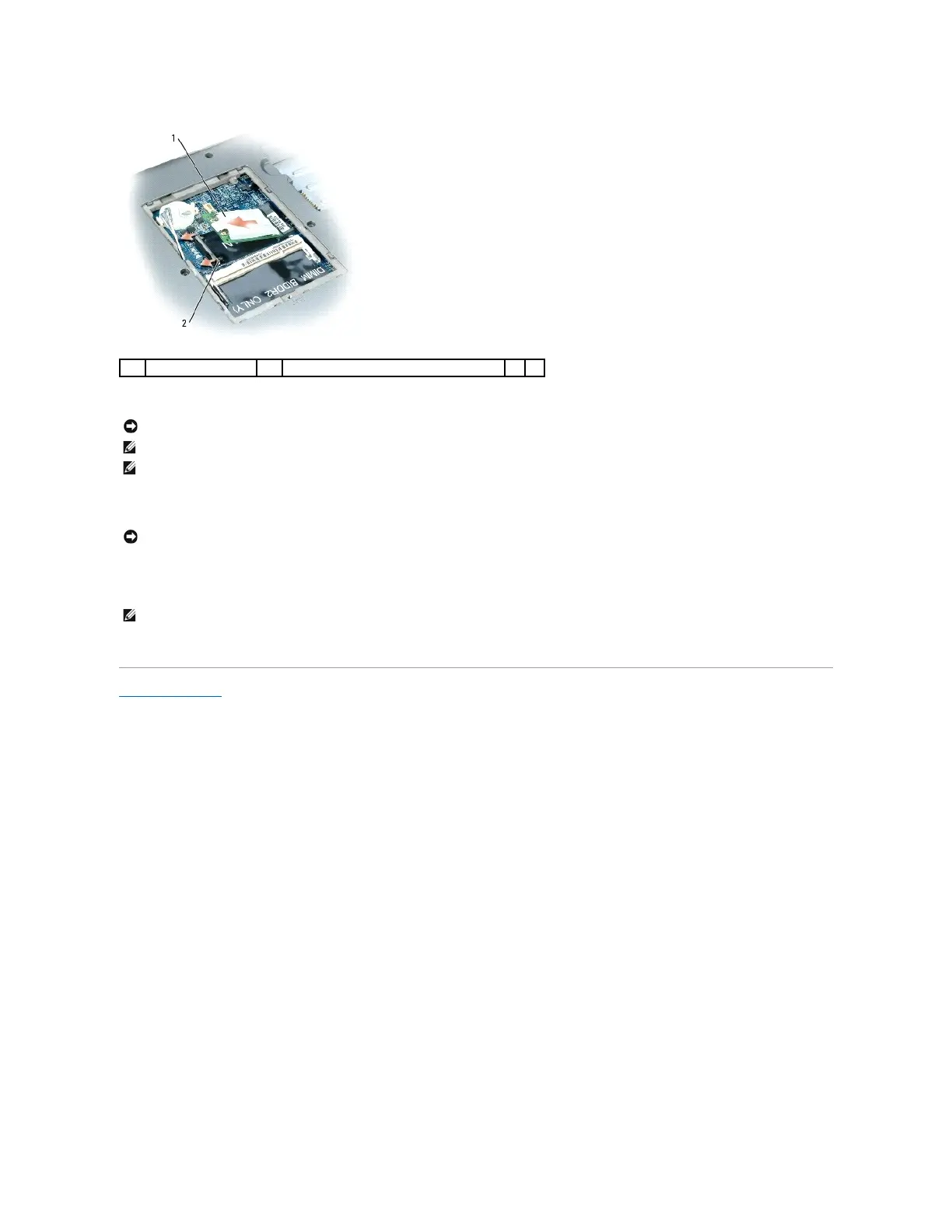

1
WLAN card
2
metal securing tabs (2)


NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the card.
NOTE: Do not insert a Mobile Broadband (WWAN) network card into the WLAN card connector.
NOTE: The WLAN card may have two or three antenna connectors, depending on the type of card you ordered.
NOTICE: To avoid damaging the WLAN card, never place cables on top of or under the card.
NOTE: For more specific information about which cable to connect to which connector, see the documentation that came with your WLAN card.

Dell Latitude D520 Specifications

General

Processor	Intel Core Duo or Intel Celeron M
Graphics	Intel Graphics Media Accelerator 950
Operating System	Windows XP Professional
Chipset	Intel 945GM Express
Maximum Memory	4 GB
Processor Speed	1.66 GHz
RAM	512 MB to 4 GB
Storage	40 GB to 120 GB HDD
Display	15.4 inch
Display Resolution	1280 x 800 (WXGA)
Optical Drive	DVD-ROM
Battery	6-cell Lithium Ion
Ports	4 x USB 2.0, VGA, Ethernet, Modem
Wireless	802.11a/b/g
