System Board
Dell™Latitude™E5400DiscreteServiceManual

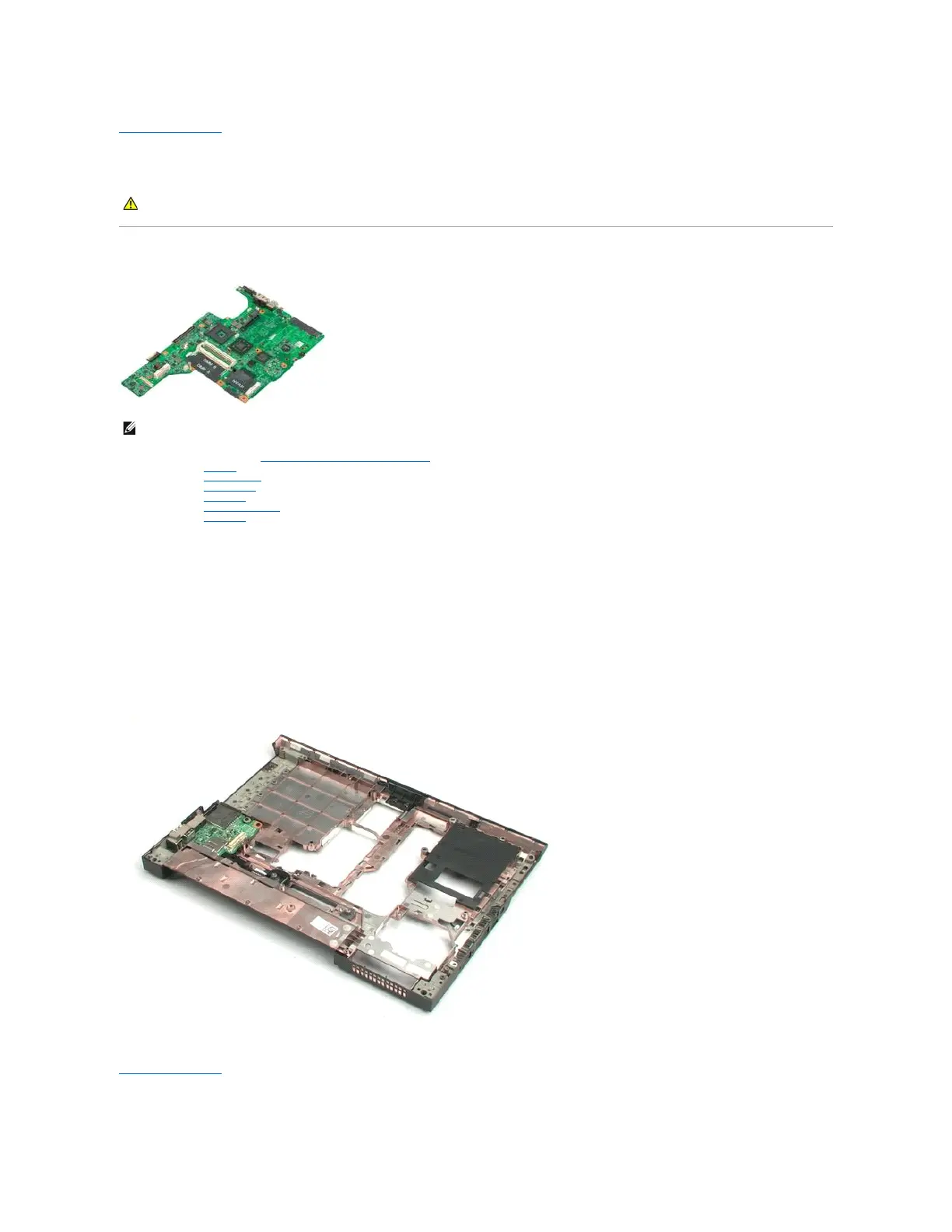

Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hinge cover from the computer.
5. Remove the keyboard from the computer.
6. Remove the display assembly from the computer.
7. Remove the palm rest from the computer.
8. Disconnect the modem data cable from the system board.
9. Turn the computer right-side up on the work surface.
10. Remove the two screws that secure the system board to the computer chassis.
11. Lift the left side of the system board to disengage it from the I/O board, then remove the system board from the computer and set it aside.
