Dell OptiPlex 3010 User Manual

Power Button
Problem Description A possible system board resource and/or hardware failure has occurred.
Troubleshooting Steps
• Clear CMOS.
• Disconnect all internal and external peripherals, and restart the computer. If the
computer boots, add the peripheral cards back one by one until you find the bad one.
• If the problem persists, the system board / system board component is faulty.

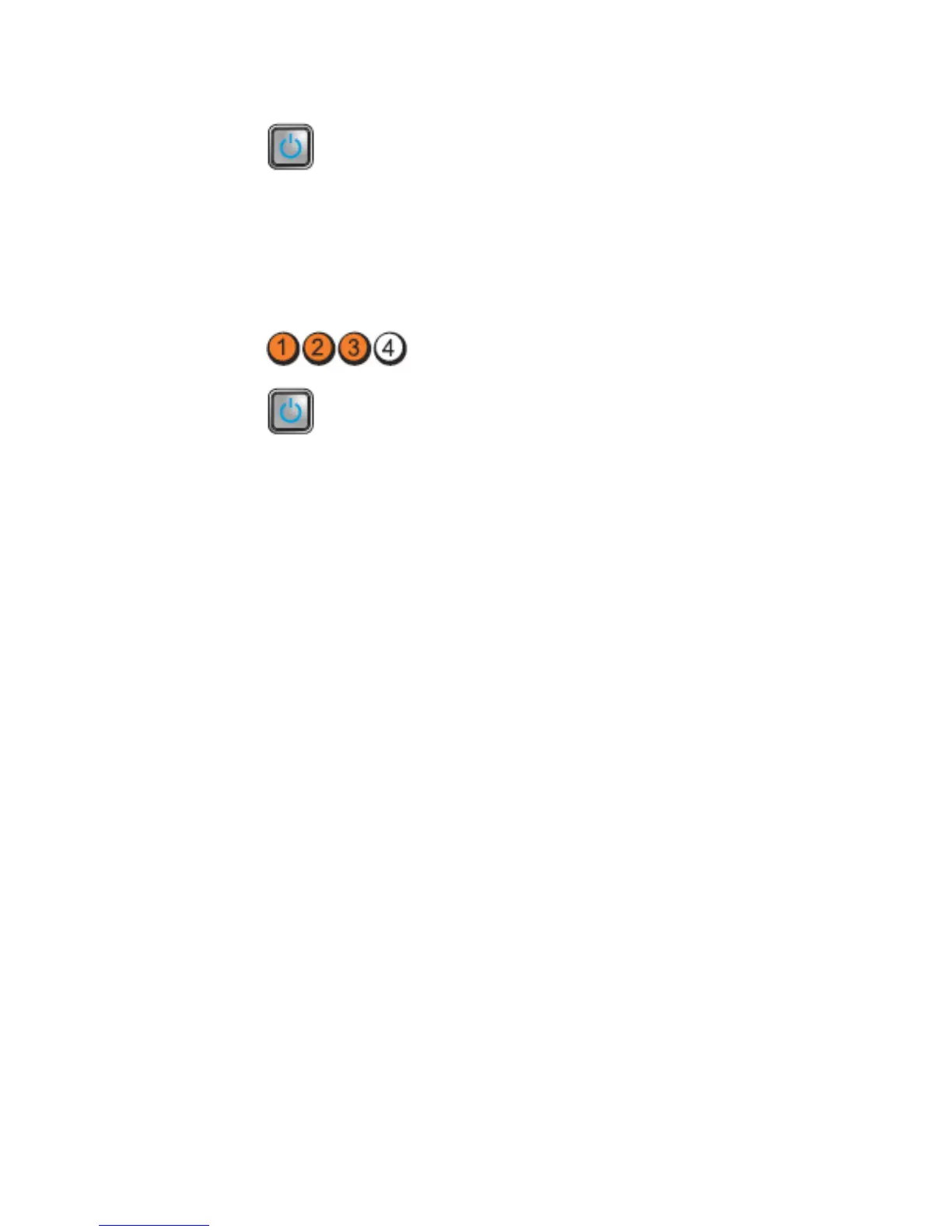

LED
Power Button
Problem Description Some other failure has occurred.
Troubleshooting Steps
• Ensure that the display/monitor is plugged into a discrete graphic card.
• Ensure that all hard drives and optical drive cables are properly connected to the
system board.
• If there is an error message on the screen identifying a problem with a device ( hard
drive), check the device to make sure it is functioning properly.
• If the operating system is attempting to boot from a device (optical drive), check
system setup to ensure the boot sequence is correct for the devices installed on your
computer.
Beep Codes
The computer can emit a series of beeps during start-up if the display cannot show errors or problems. These series of
beeps, called beep codes, identify various problems. The delay between each beep is 300 ms, the delay between each
set of beeps is 3 sec, and the beep sound lasts 300 ms. After each beep and each set of beeps, the BIOS should detect if
the user presses the power button. If so, BIOS will jump out from looping and execute the normal shutdown process and
power system.
Code 1-1-2
Cause Microprocessor register failure
Code 1-1-3
Cause NVRAM
Code 1-1-4
Cause ROM BIOS checksum failure
Code 1-2-1
Cause Programmable interval timer
46

Dell OptiPlex 3010 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Processor cache	3 MB
Processor cores	2
Processor model	i3-2120
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-2100 Desktop Series
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Product type	PC
Motherboard chipset	Intel® H61
Memory slots	1x DIMM
Internal memory	4 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD±RW
Total storage capacity	250 GB
HDMI	Yes
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
On-board graphics card ID	0x102
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 2000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Operating system installed	Windows 7 Professional
Serial ports quantity	-
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	SFF
Product color	Aluminium, Black
Certification	CECP, AEEA, BvGS
Sustainability certificates	EPEAT Gold, ENERGY STAR
Power supply	240 W
Processor ARK ID	53426
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	312 mm
Width	93 mm
Height	290 mm
Weight	5700 g
