2. With the memory module visible, use your fingertips to spread apart the securing clips on the memory-module slot until the
memory module pops up.
3. Slide and remove the memory module from the memory-module slot.
Installing the memory module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

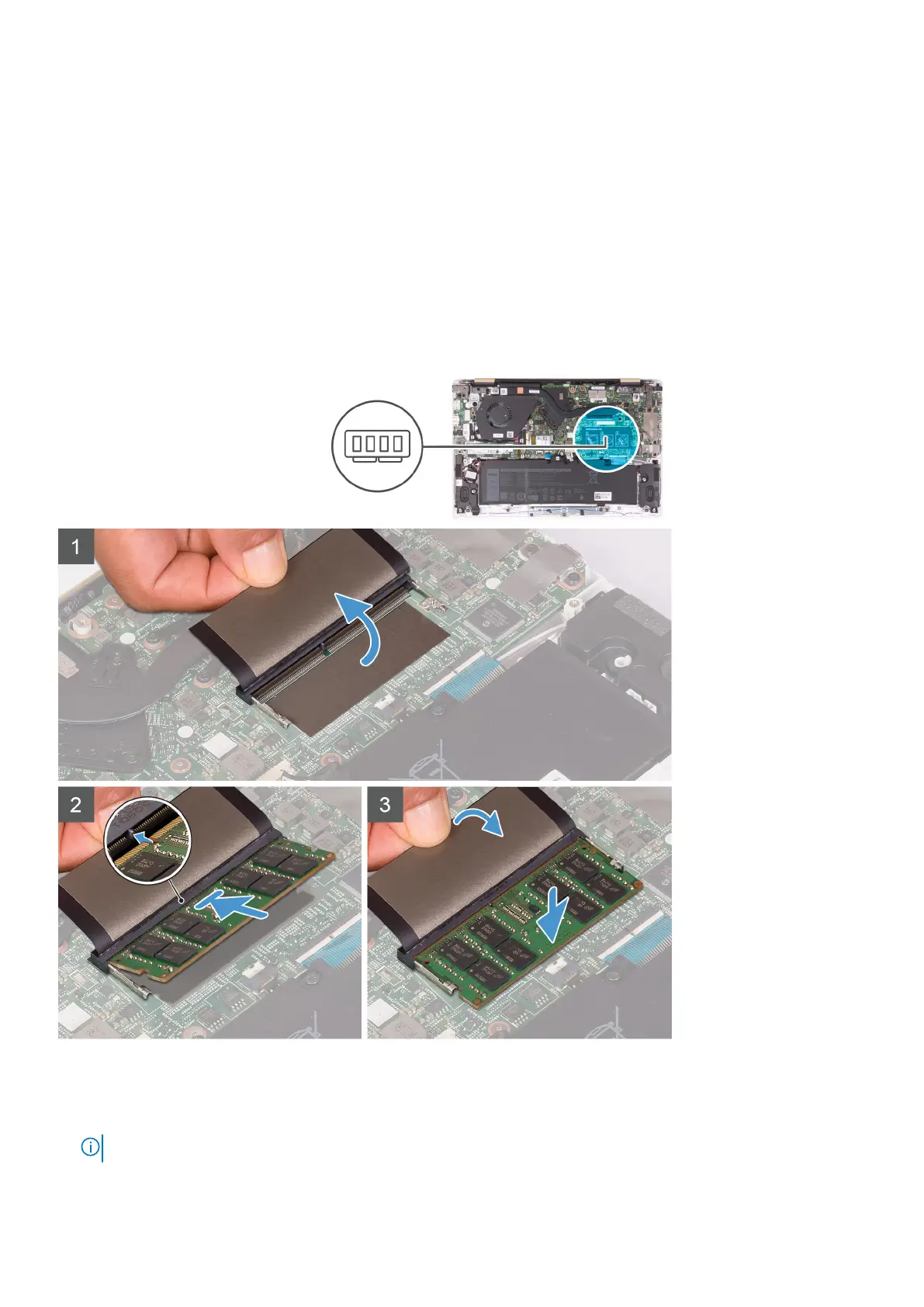

The following image indicates the location of the memory module and provides a visual representation of the installation
procedure.
Steps
1. Align the notch on the memory module with the tab on the memory-module slot.
2. Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
18 Removing and installing components
