Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

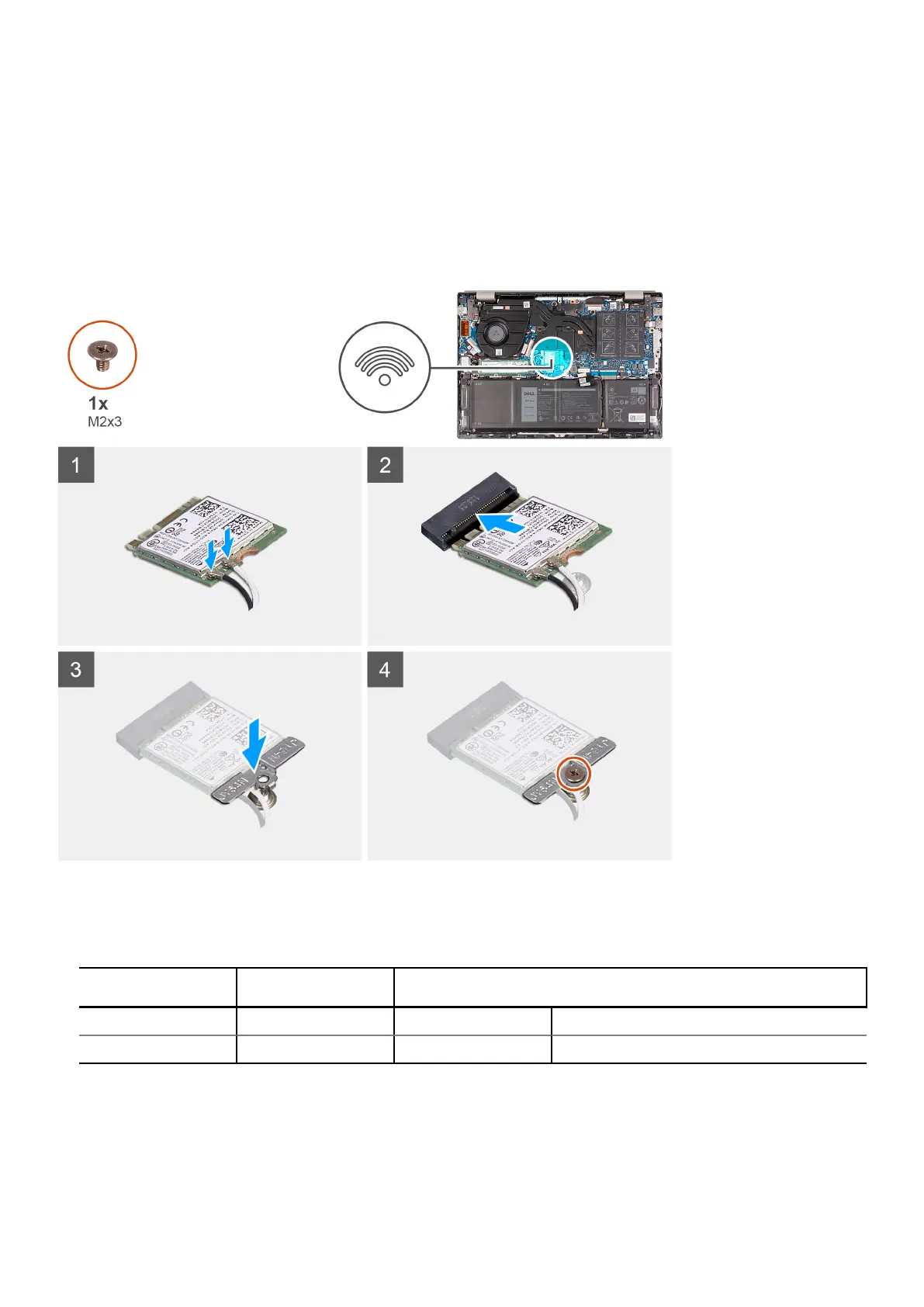

The following image(s) indicate the location of the wireless card and provides a visual representation of the installation
procedure.
Steps
1. Connect the antenna cables to the wireless card.
Table 2. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
2. Place the wireless-card bracket on the wireless card.
3. Align the notch on the wireless card with the tab on the M.2 card slot on the system board.
4. Slide the wireless card into the M.2 card slot on the system board.
5. Replace the screw (M2x3) that secures the wireless card and wireless-card bracket to the system board.
32
Removing and installing components
