Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

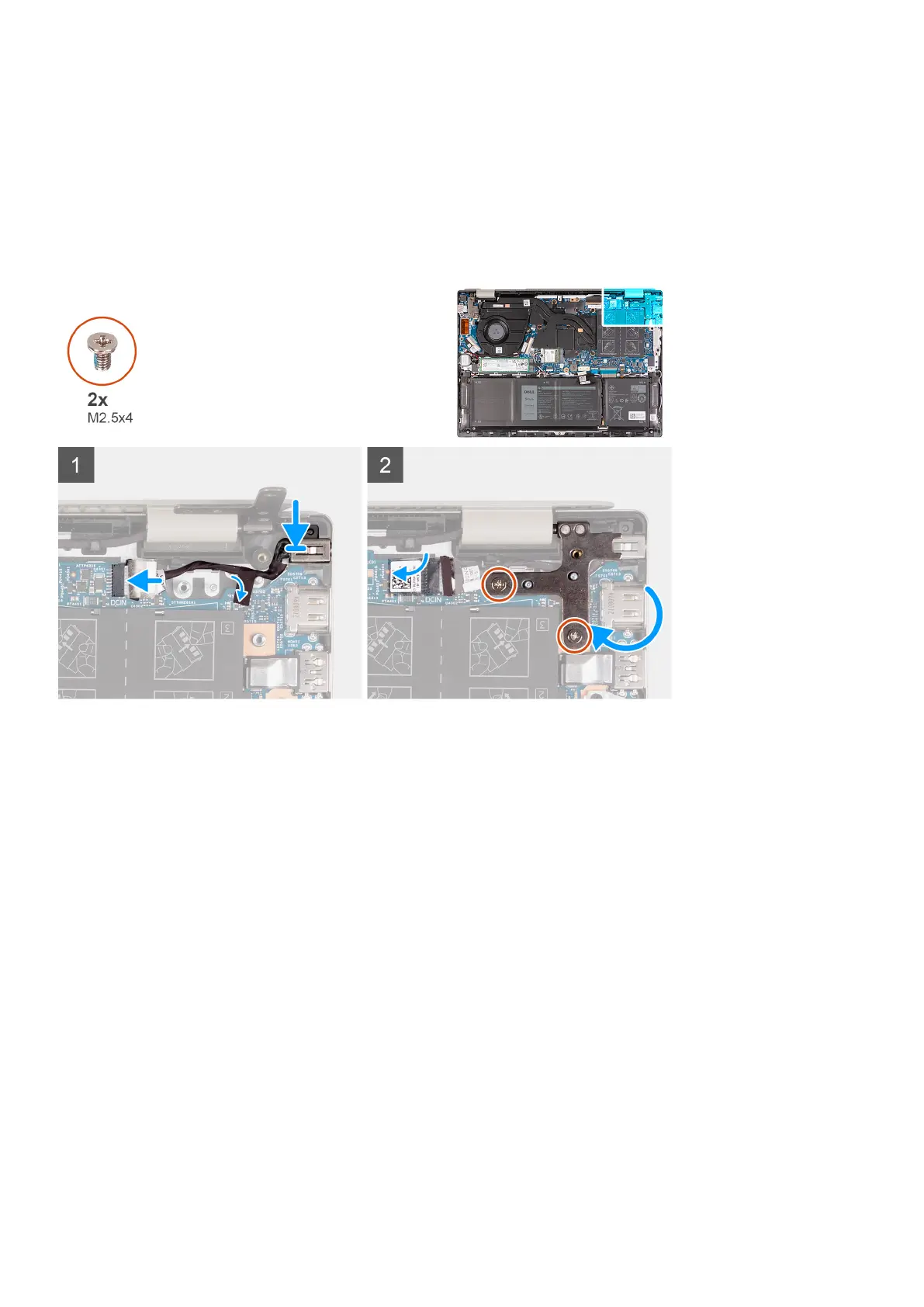

The following image(s) indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
Steps
1. Place the power-adapter port, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Route the power-adapter port cable through the routing guide on the palm-rest and keyboard assembly.
3. Adhere the tape that secures the power-adapter port cable to the system board.
4. Connect the power-adapter port cable to the system board.
5. Close the right display hinge and align the screw holes on the right display hinge with the screw holes on the system board
and the palm-rest and keyboard assembly.
6. Replace the two (M2.5x4) screws that secure the right display hinge to the system board and the palm-rest and keyboard
assembly.
Next steps
1. Install the display assembly.
2. Install the base cover.
3. Exit Service Mode.
4. Follow the procedure in After working inside your computer.
