5. Remove the two screws (M2.5x4) that secure the left display hinge to the I/O board.
6. Pry open the left display hinge at an angle of 90 degrees.
7. Gently lift the palm-rest and keyboard assembly off the display assembly.
CAUTION: To avoid damaging the display, do not slide the palm-rest and keyboard assembly over the display
assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

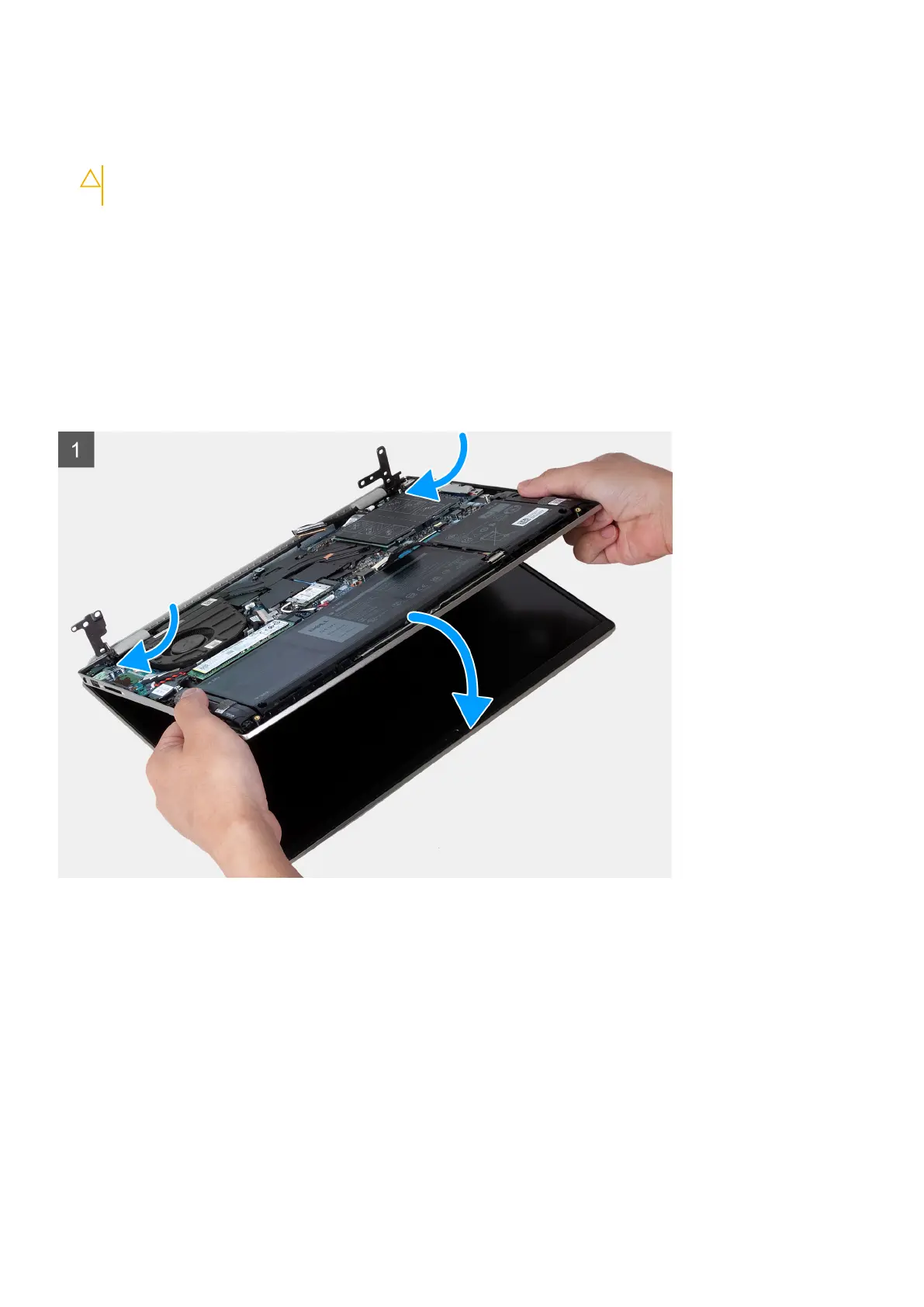

The following image(s) indicate the location of the display assembly and provides a visual representation of the installation
procedure.
Removing and installing components 37
