Dell P54G - Page 16

3 Remove the eight screws (M2x3, Torx) that secure the base cover to the palm-
rest assembly.

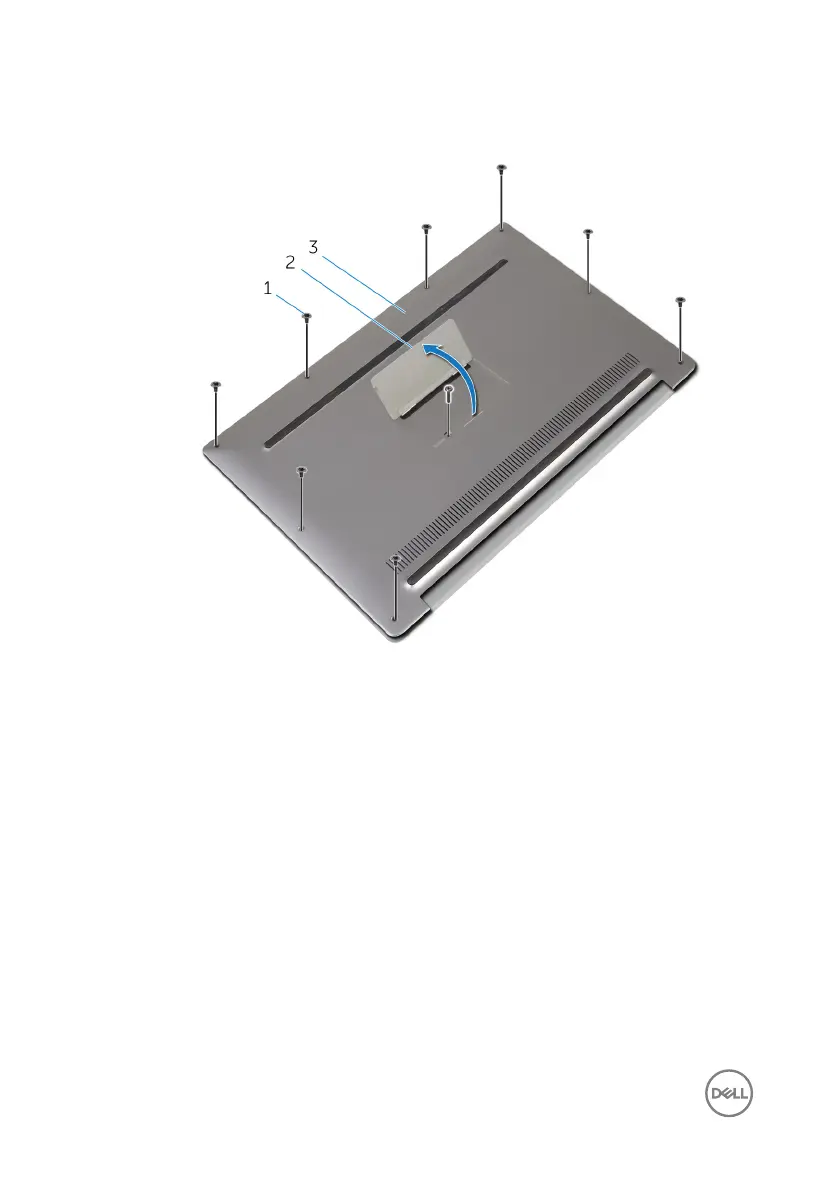

Figure 1. Removing the base cover
1
screws (9) 2 system badge
3 base cover
4 Starting from the back of the computer, pry up the base cover using a plastic
scribe.
16
