Dell P54G User Manual

2 Peel o the tape that secures the speaker cable to the battery.

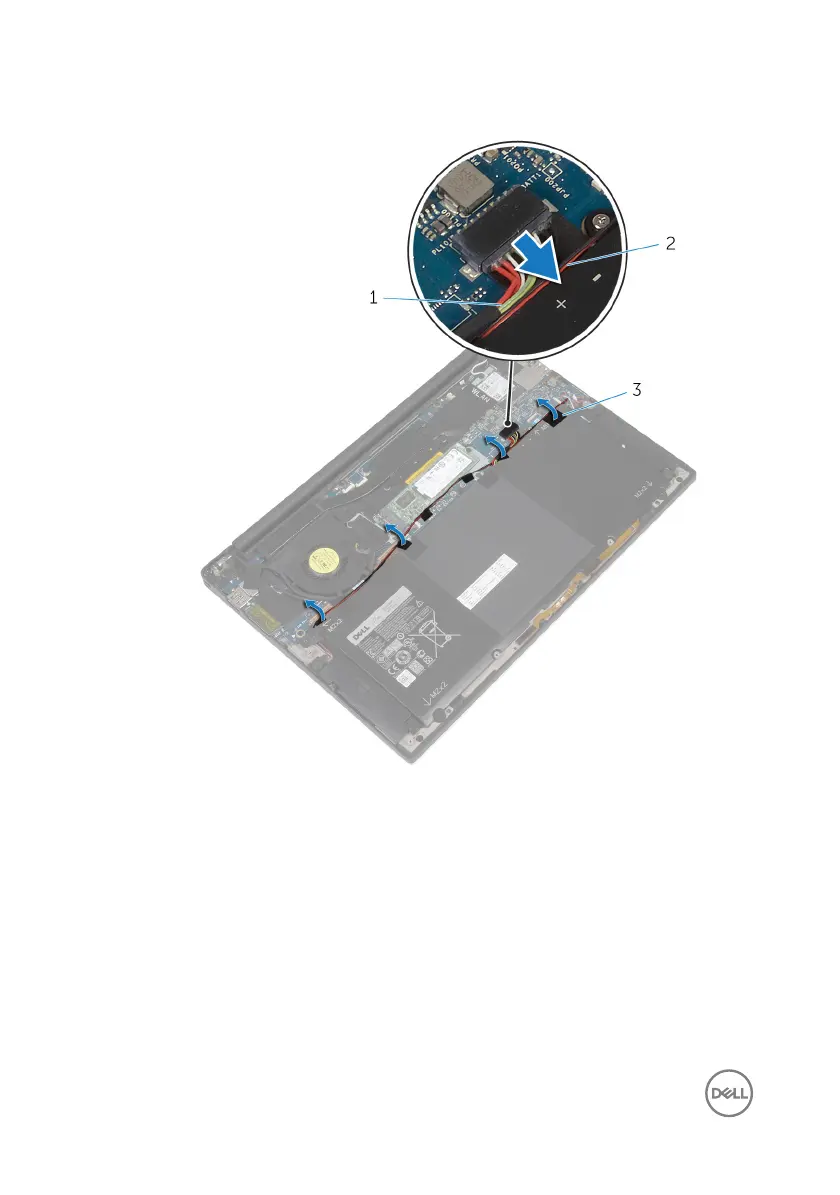

Figure 3. Removing the battery
1
battery cable 2 speaker cable
3 tape (6)
3 Remove the screw (M1.6x4) that secures the battery to the palm-rest assembly.
4 Remove the three screws (M2x2) that secure the battery to the palm-rest
assembly.
20

Dell P54G Specifications

General

Model	Dell P54G
Display	1920x1080
Operating System	Windows 10
Battery	4-cell
Ports	HDMI, SD card reader, Headphone/microphone combo jack
Wireless	802.11ac Wi-Fi, Bluetooth 4.0
