4 Slide and remove the wireless card out of the wireless-card slot.

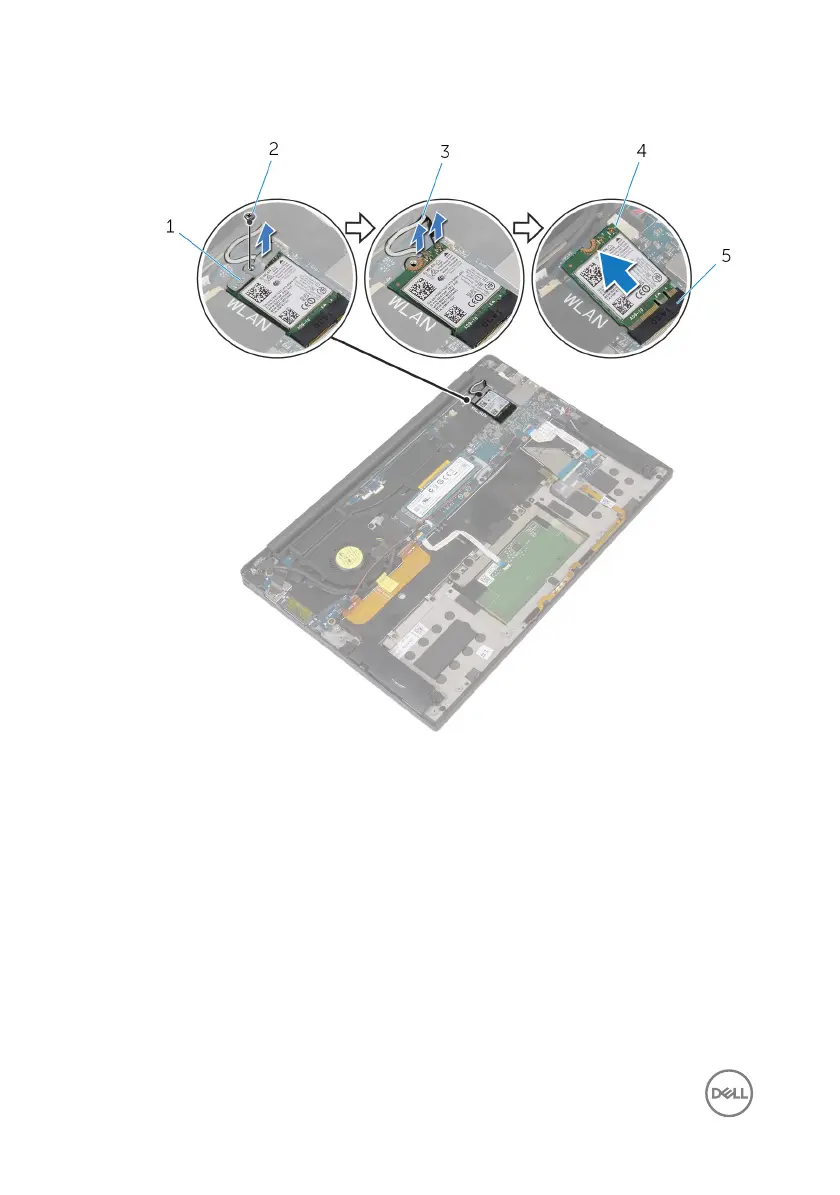

Figure 7. Removing the wireless card

wireless-card bracket 2 screw

3 antenna cables (2) 4 wireless card

5 wireless-card slot
