Dell P54G User Manual

Name: Dell P54G
Brand: Dell
Rating: 5 (1 reviews)

113 pages

To Next Page

To Previous Page

2 Lift the antenna o the display assembly.

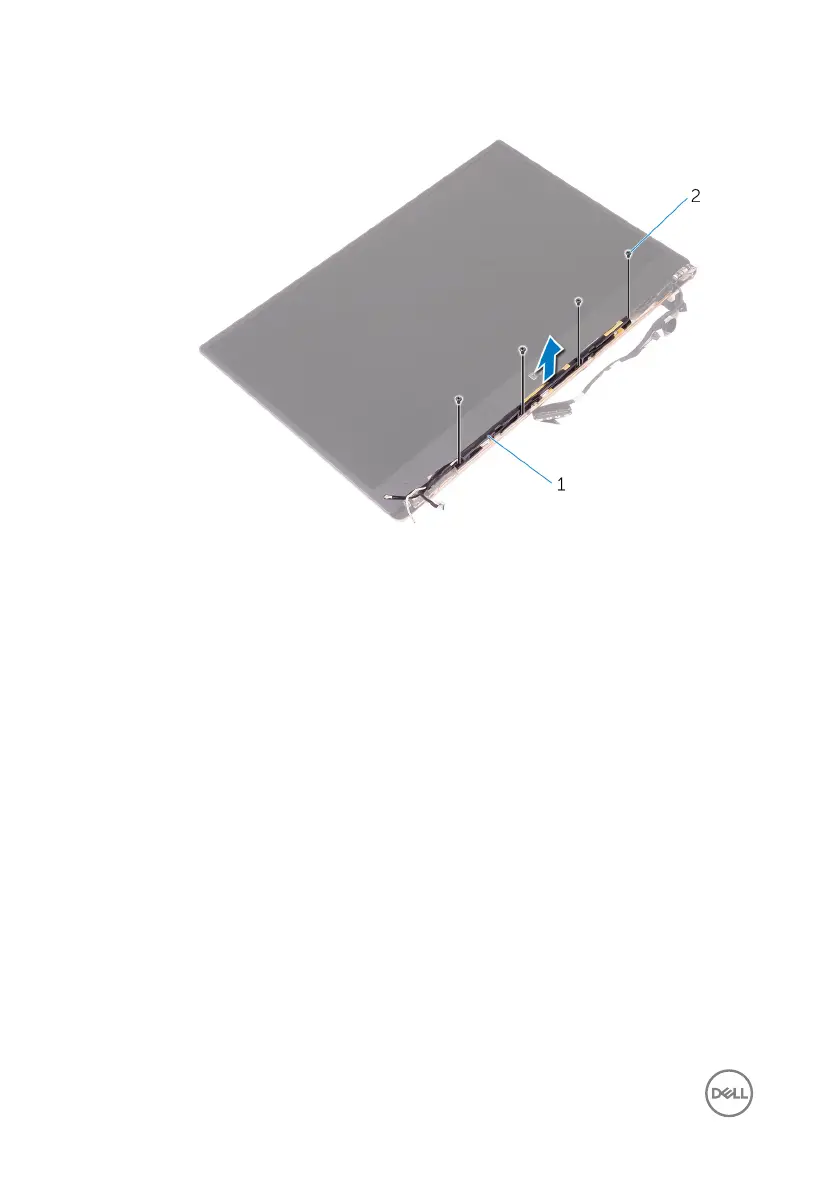

Figure 24. Removing the antenna

1 antenna 2 screws (4)

Default Chapter1
- Service Manual1
- Table of Contents3
Before Working Inside Your Computer10
- Before You Begin10
- Safety Instructions10
- Recommended Tools11
- Screw List12
After Working Inside Your Computer14
Removing the Base Cover15
- Procedure15
Replacing the Base Cover18
- Procedure18
Removing the Battery19
- Prerequisites19
- Procedure19
Replacing the Battery22
- Procedure22
- Post-Requisites22
Removing the Solid-State Drive23
- Prerequisites23
- Procedure23
Replacing the Solid-State Drive25
- Procedure25
- Post-Requisites26
Removing the Wireless Card27
- Prerequisites27
- Procedure27
Replacing the Wireless Card29
- Procedure29
- Post-Requisites30
Removing the Speakers31
- Prerequisites31
- Procedure31
Replacing the Speakers33
- Procedure33
- Post-Requisites33
Removing the Coin-Cell Battery34
- Prerequisites34
- Procedure34
Replacing the Coin-Cell Battery36
- Procedure36
- Post-Requisites36
Removing the Heat Sink37
- Prerequisites37
- Procedure37
Replacing the Heat Sink39
- Procedure39
- Post-Requisites39
Removing the Battery-Status Light Cable40
- Prerequisites40
- Procedure40
Replacing the Battery-Status Light Cable42
- Procedure42
- Post-Requisites42
Removing the Touchpad43
- Prerequisites43
- Procedure43
Replacing the Touchpad46
- Procedure46
- Post-Requisites46
Removing the I/O-Board Cable47
- Prerequisites47
- Procedure47
Replacing the I/O-Board Cable49
- Procedure49
- Post-Requisites49
Removing the I/O Board50
- Prerequisites50
- Procedure50
Replacing the I/O Board53
- Procedure53
- Post-Requisites53
Removing the Display Assembly54
- Prerequisites54
- Procedure54
Replacing the Display Assembly60
- Procedure60
- Post-Requisites61
Removing the Display Hinge Cover62
- Prerequisites62
- Procedure62
Replacing the Display Hinge Cover64
- Procedure64
- Post-Requisites64
Removing the Antenna65
- Prerequisites65
- Procedure65
Replacing the Antenna67
- Procedure67
- Post-Requisites67
Removing the System Board68
- Prerequisites68
- Procedure68
Replacing the System Board73
- Procedure73
- Post-Requisites74
- Entering the Service Tag in the BIOS Setup Program74
Removing the Power-Adapter Port75
- Prerequisites75
- Procedure75
Replacing the Power-Adapter Port77
- Procedure77
- Post-Requisites77
Removing the Fan78
- Prerequisites78
- Procedure78
Replacing the Fan81
- Procedure81
- Post-Requisites81
Removing the Keyboard82
- Prerequisites82
- Procedure83
Replacing the Keyboard86
- Procedure86
- Post-Requisites86
Removing the Palm-Rest Assembly87
- Prerequisites87
- Procedure88
Replacing the Palm-Rest Assembly89
- Procedure89
- Post-Requisites89
Downloading Drivers91
- Downloading the Audio Driver91
- Downloading the Graphics Driver91
- Downloading the USB 3.0 Driver92
- Downloading the Wi-Fi Driver92
- Downloading the Media-Card Reader Driver92
- Downloading the Chipset Driver93
- Downloading the Network Driver93
System Setup95
- Boot Sequence95
- Navigation Keys95
- BIOS Overview96
- Entering BIOS Setup Program96
- System Setup Options97
- System and Setup Password104
Troubleshooting107
- Flashing the BIOS107
- Flashing BIOS (USB Key)107
- Enhanced Pre-Boot System Assessment (Epsa) Diagnostics108
  - Running the Epsa Diagnostics108
- System Diagnostic Lights109
- Flea Power Release110
- Wi-Fi Power Cycle111
Getting Help and Contacting Dell112
- Self-Help Resources112
- Contacting Dell113
