12 Starting from the outer edge, lift the system board at an angle to release it from

the tabs on the palm-rest assembly.

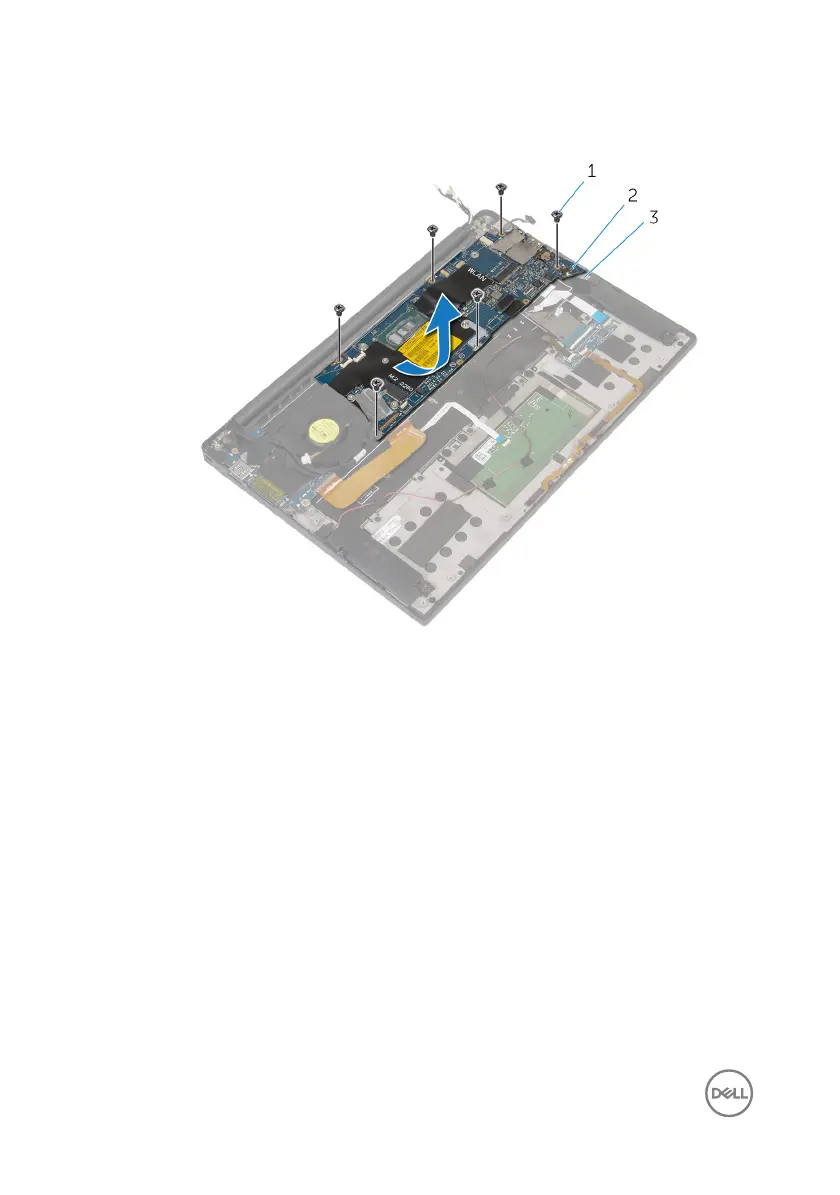

Figure 28. Removing the system board

screws (6) 2 system board

3 palm-rest assembly
