3 Remove the 30 screws (M1.6x1.5) that secure the keyboard to the palm-rest

assembly.

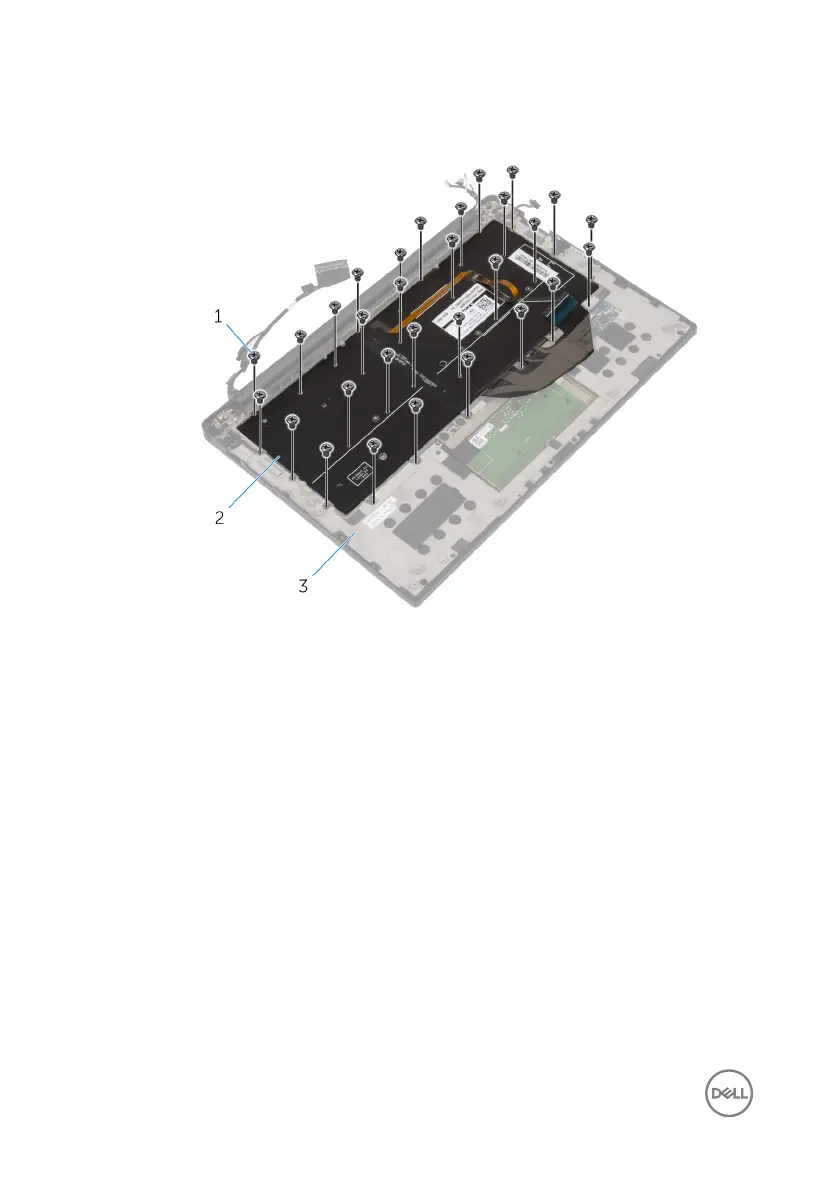

Figure 33. Removing the keyboard

screws (30) 2 keyboard

3 palm-rest assembly
