11. Remove the speakers.
12. Remove the I/O board.
13. Remove the power-button with optional fingerprint reader.
14. Remove the system board.
NOTE: The system board can be removed along with the heat sink.
15. Remove the power-adapter port.
About this task

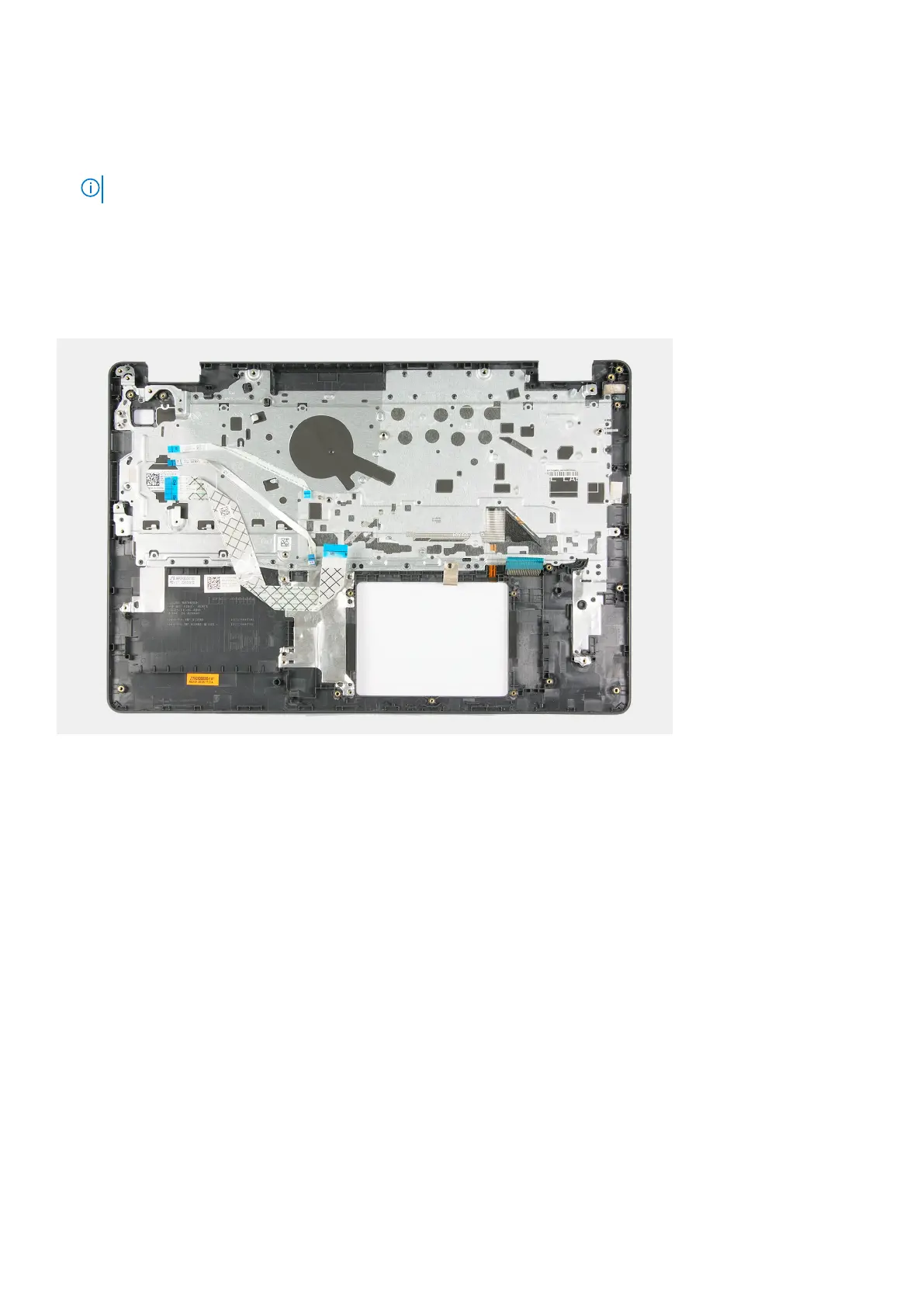

The following images indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
removal procedure.
For computers shipped with a Realtek ALC3204 audio controller
For computers shipped with a Cirrus Logic CS8409 audio controller
78
Removing and installing components
